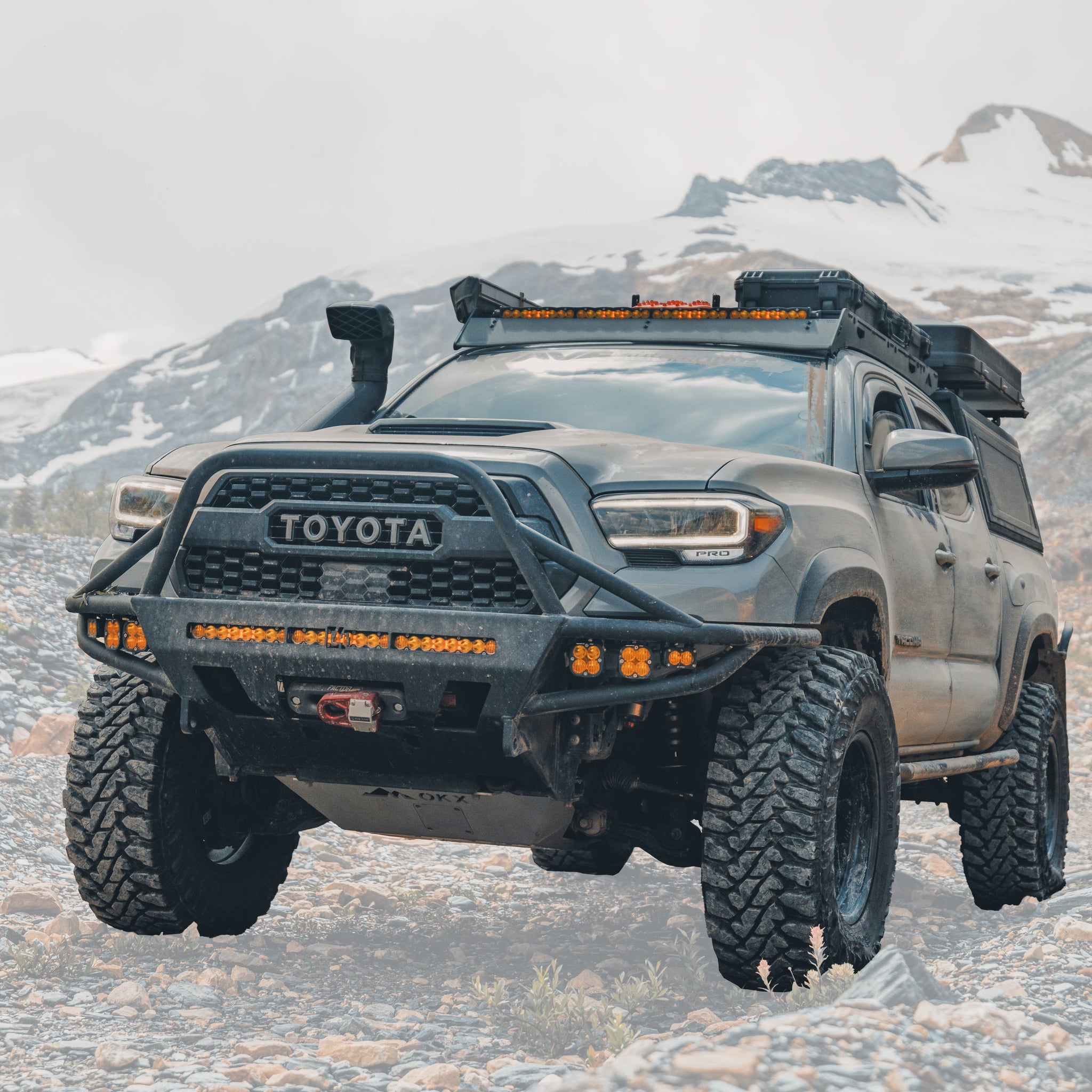

Cover photo of the C4 Hybrid front bumper for 3rd Gen Toyota Tacomas with the background faded out and emphasis on the truck and bumper.

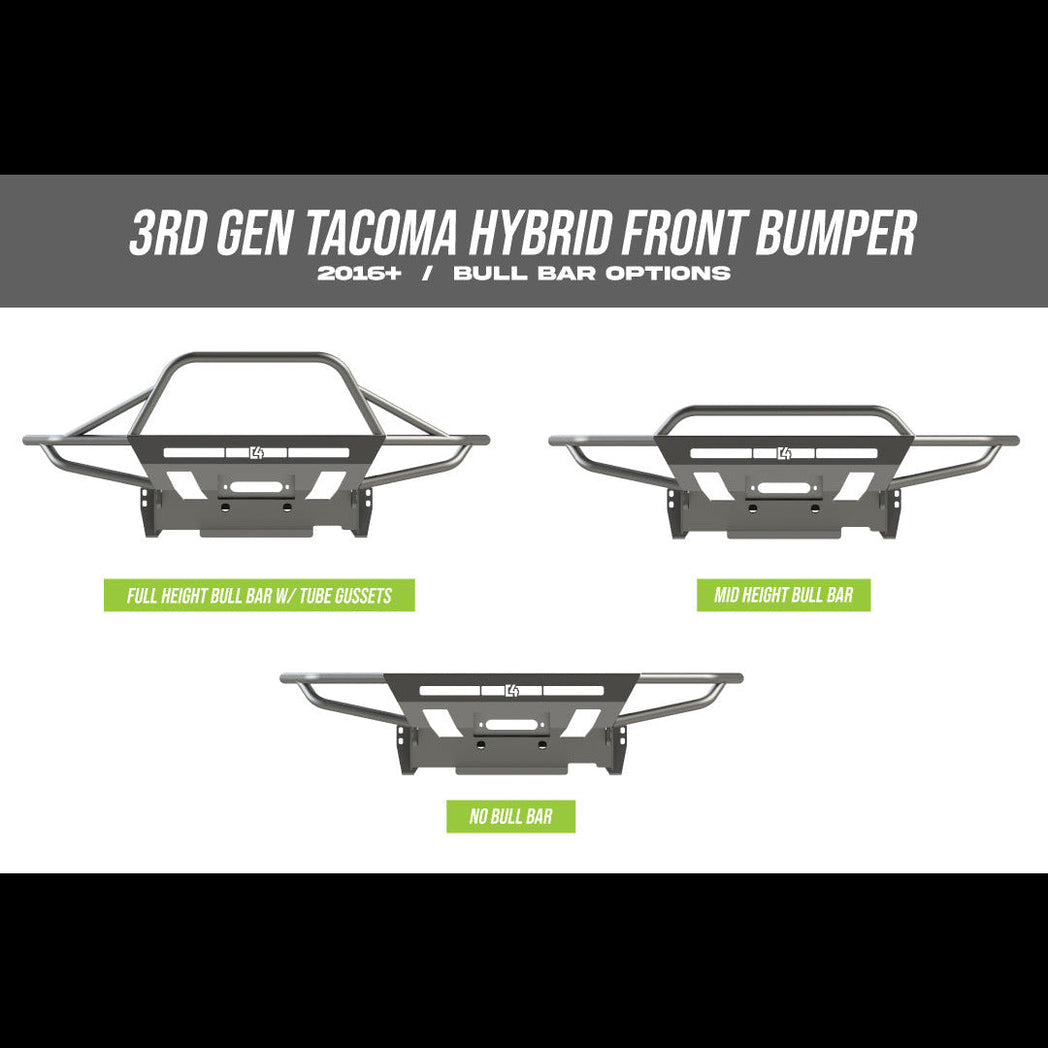

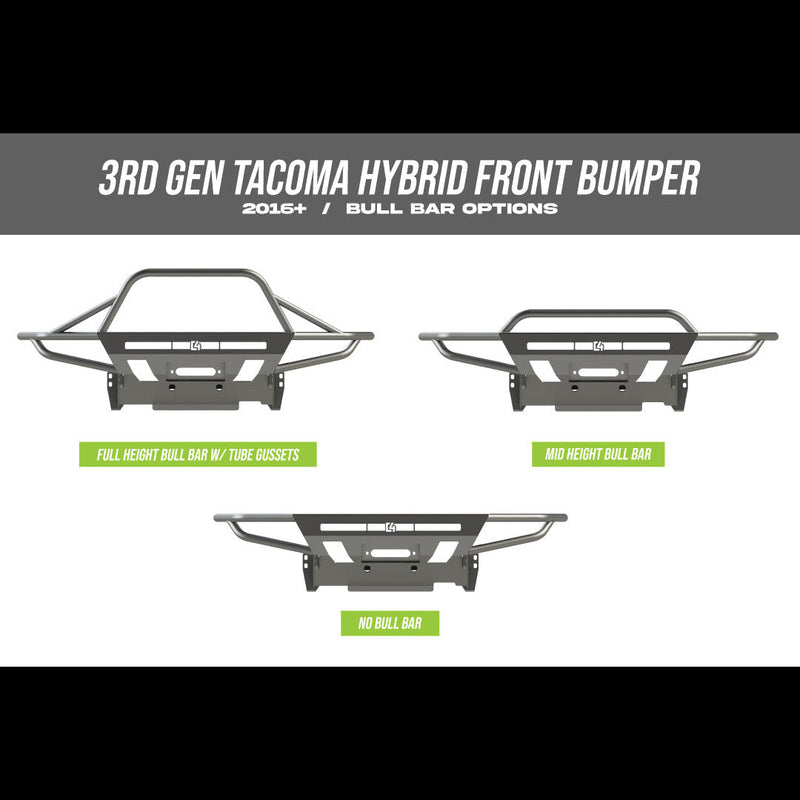

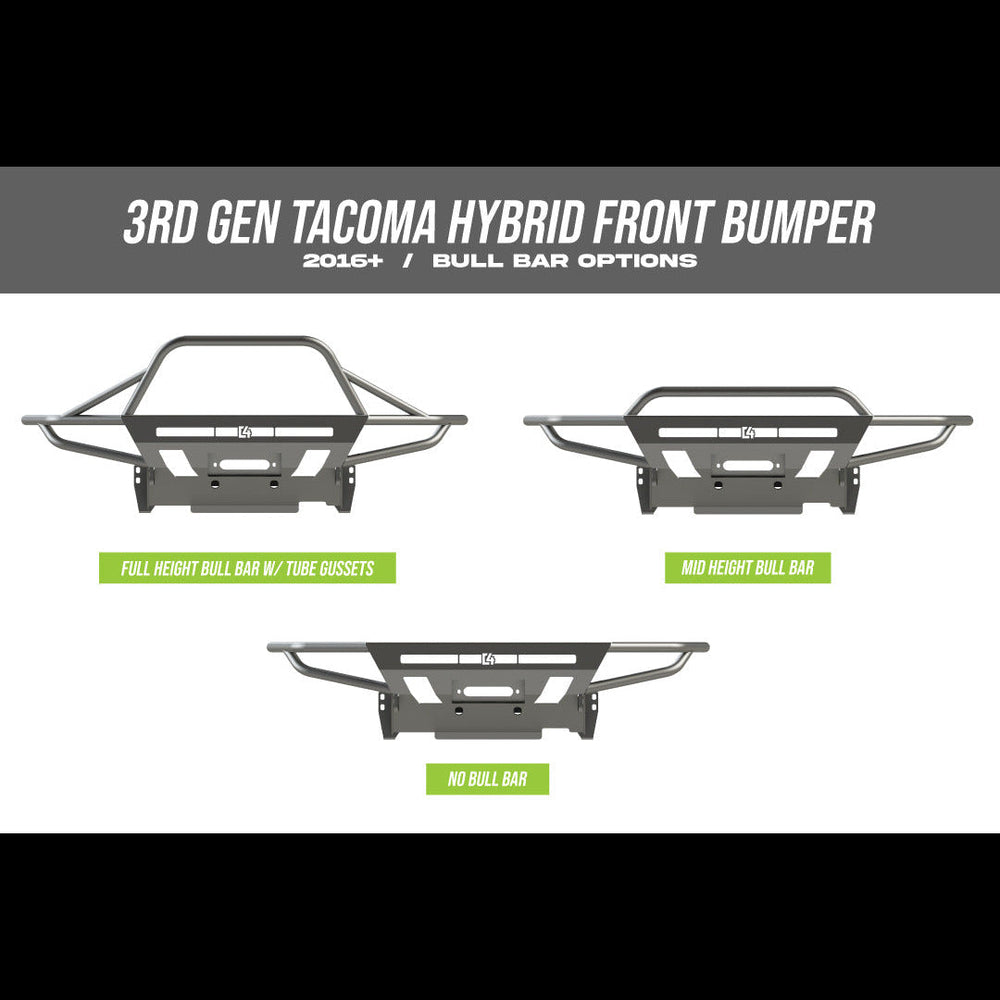

Three digital renderings showing the three bull bar options for the C4 Hybrid winch bumper - no bull bar, mid-height bull bar and full-height bull bar with tube gussets.

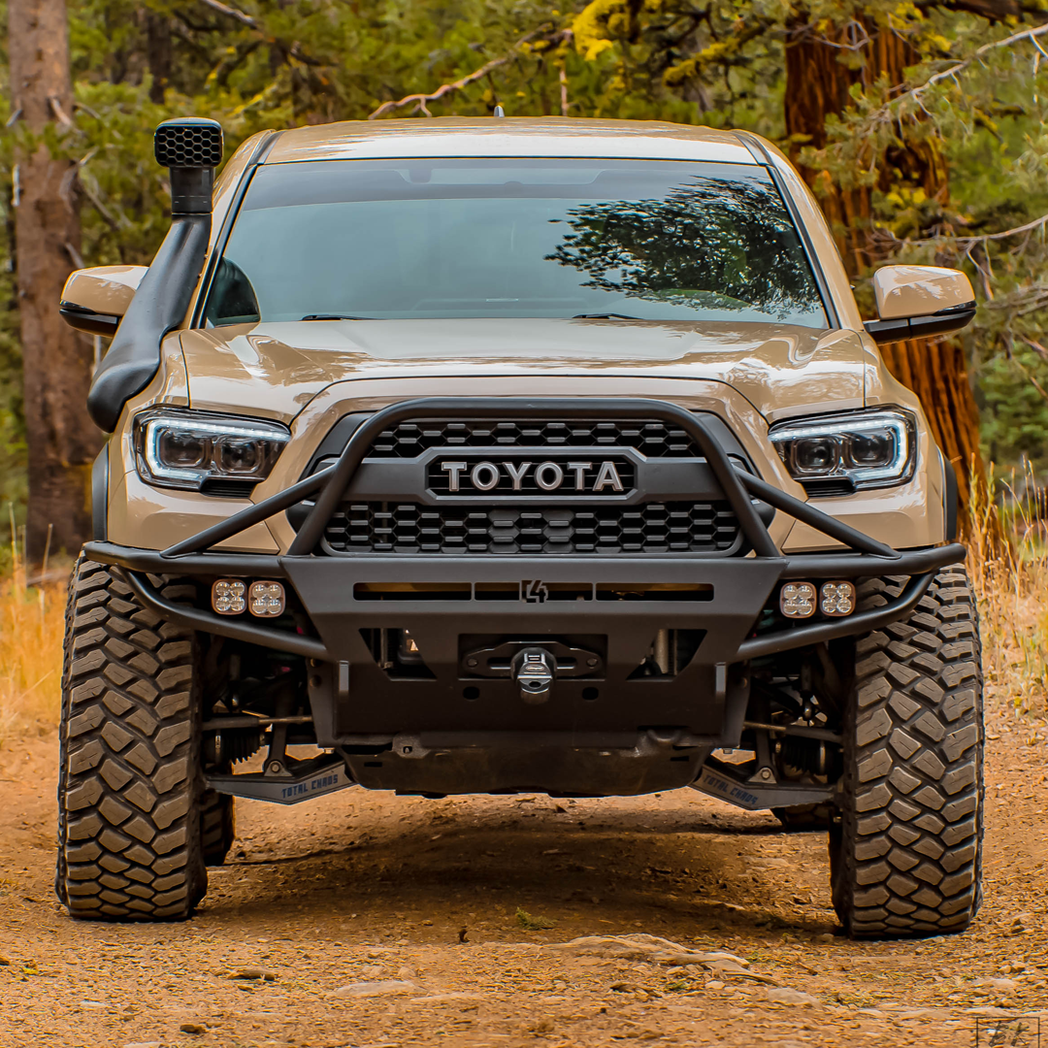

Tan Toyota Tacoma equipped with the C4 Hybrid winch bumper with full-height bull bar with tube gussets.

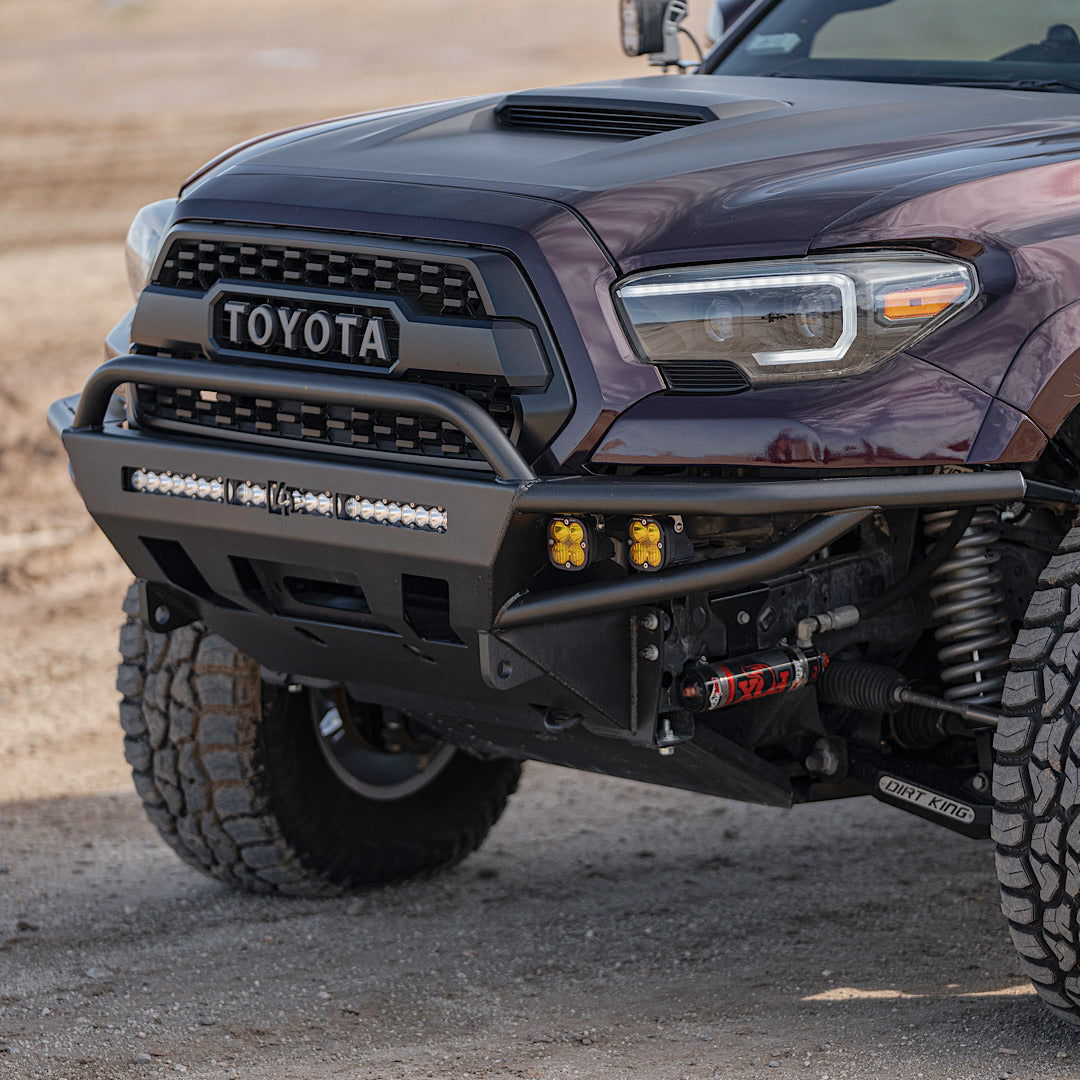

Purple 3rd Generation Tacoma with a C4 Hybrid front winch bumper with low bull bar.

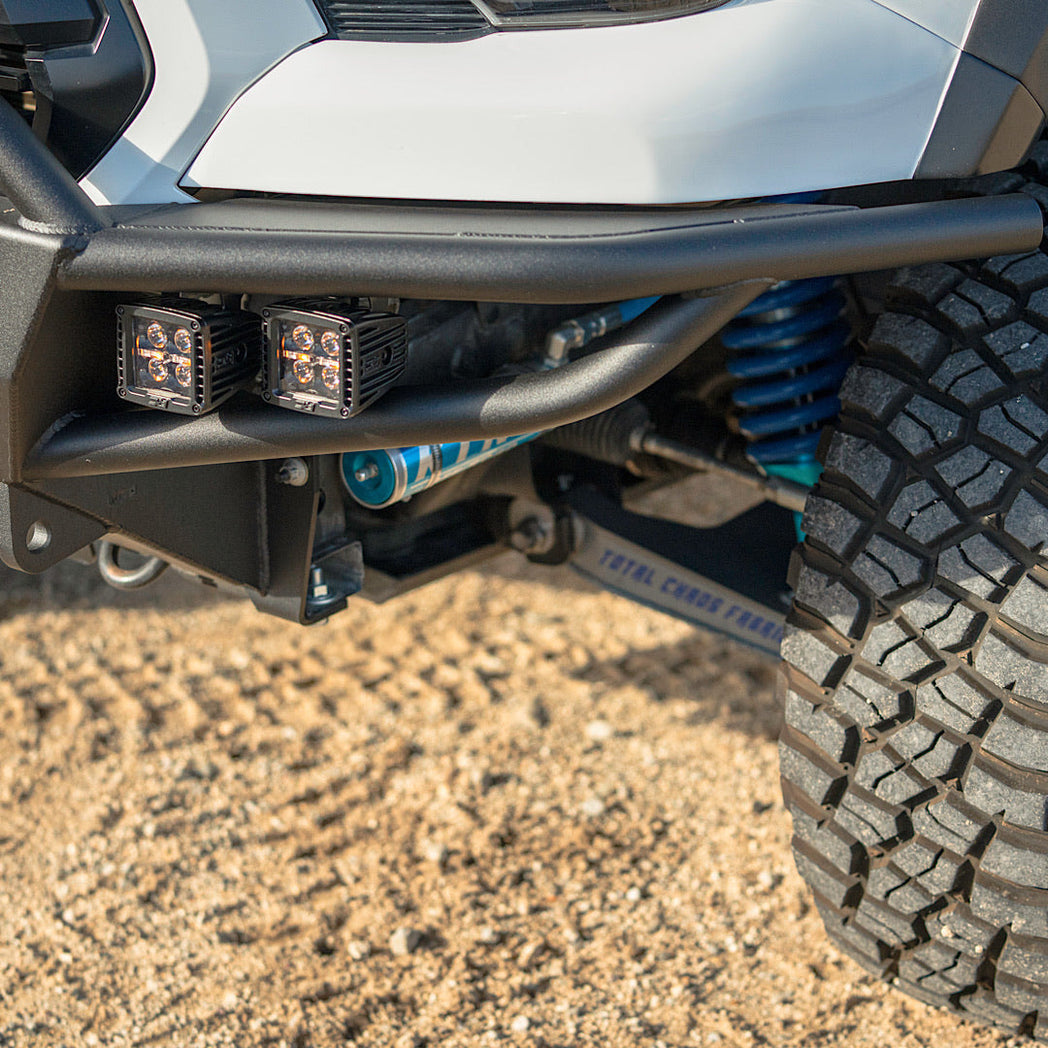

Close up of the tube style wings on the C4 Hybrid winch bumper.

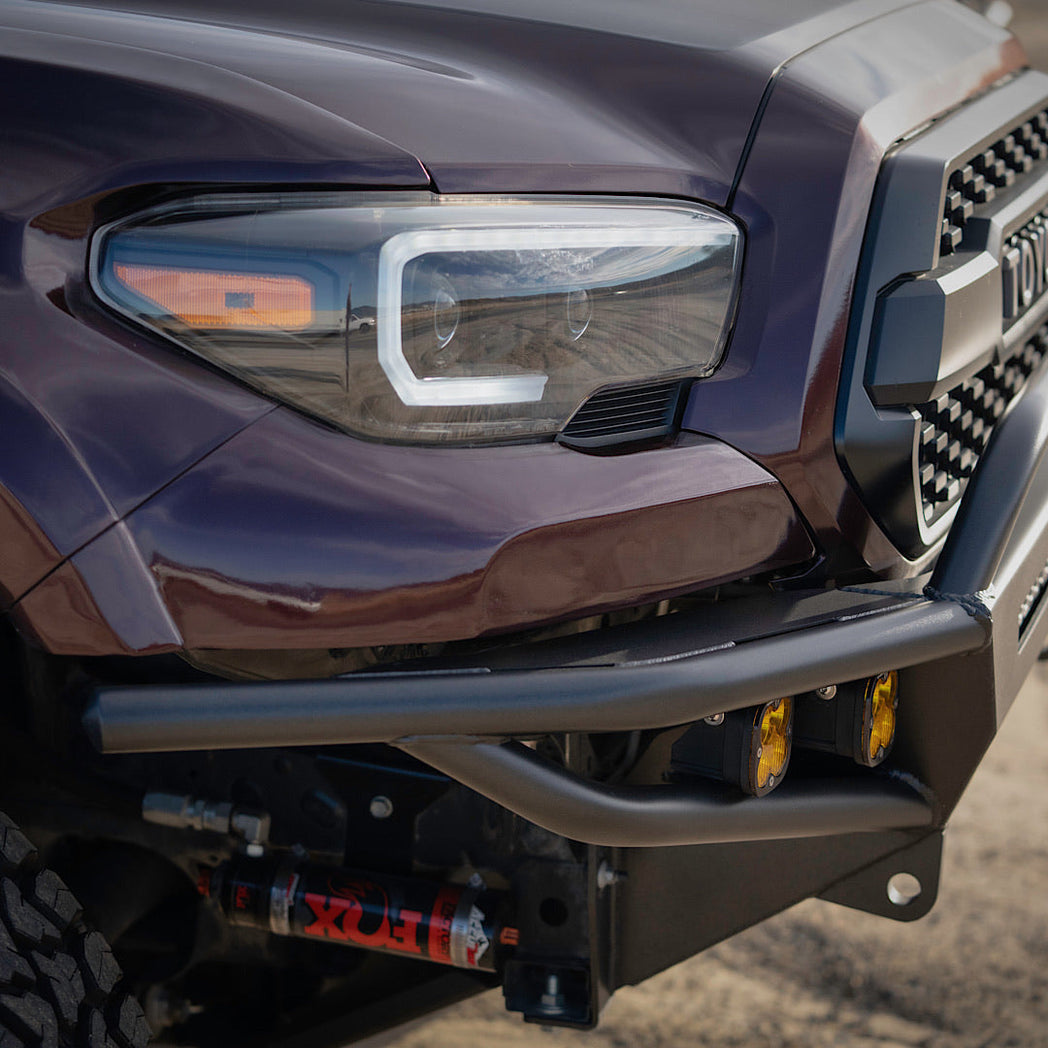

Purple Tacoma with C4 Hybrid front winch bumper.

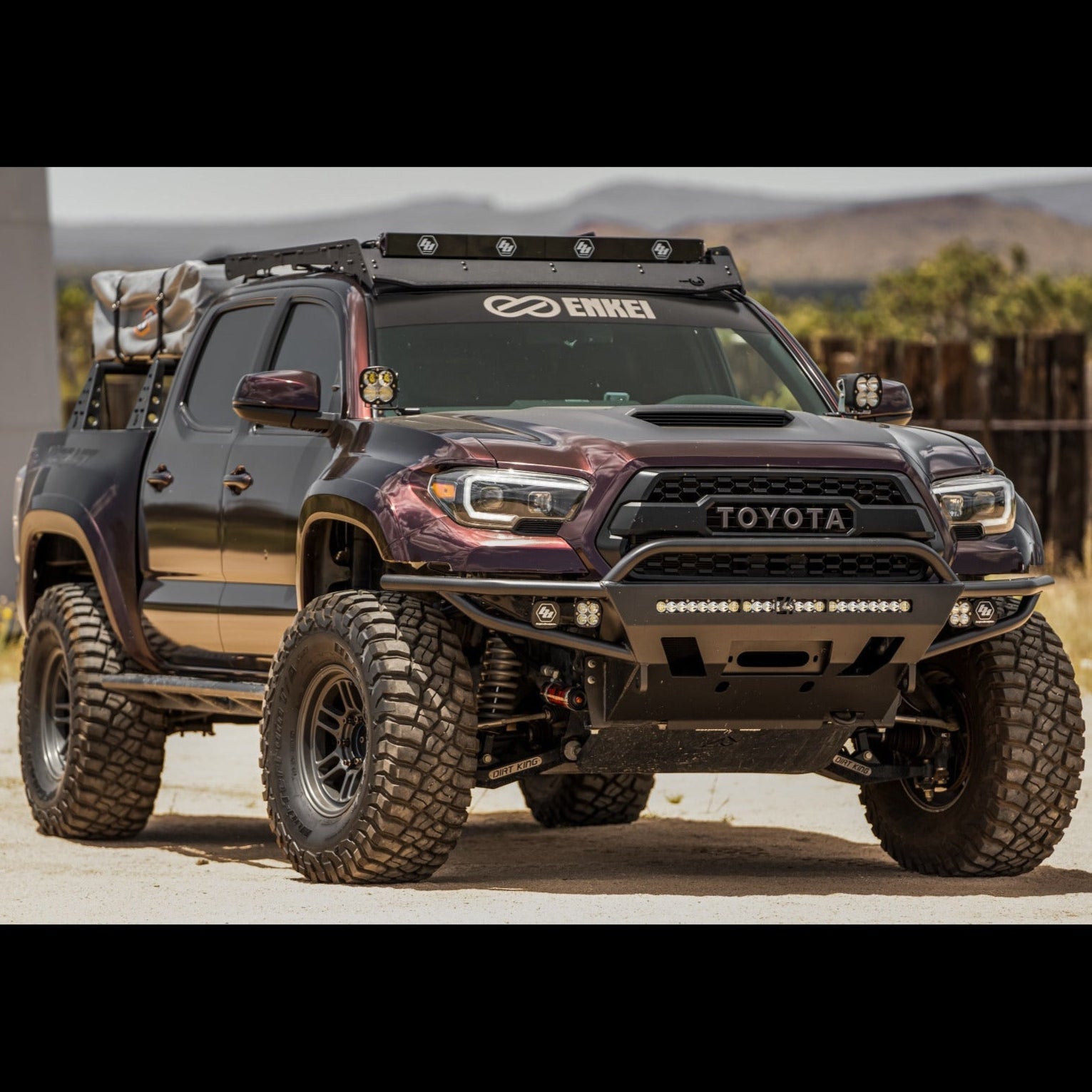

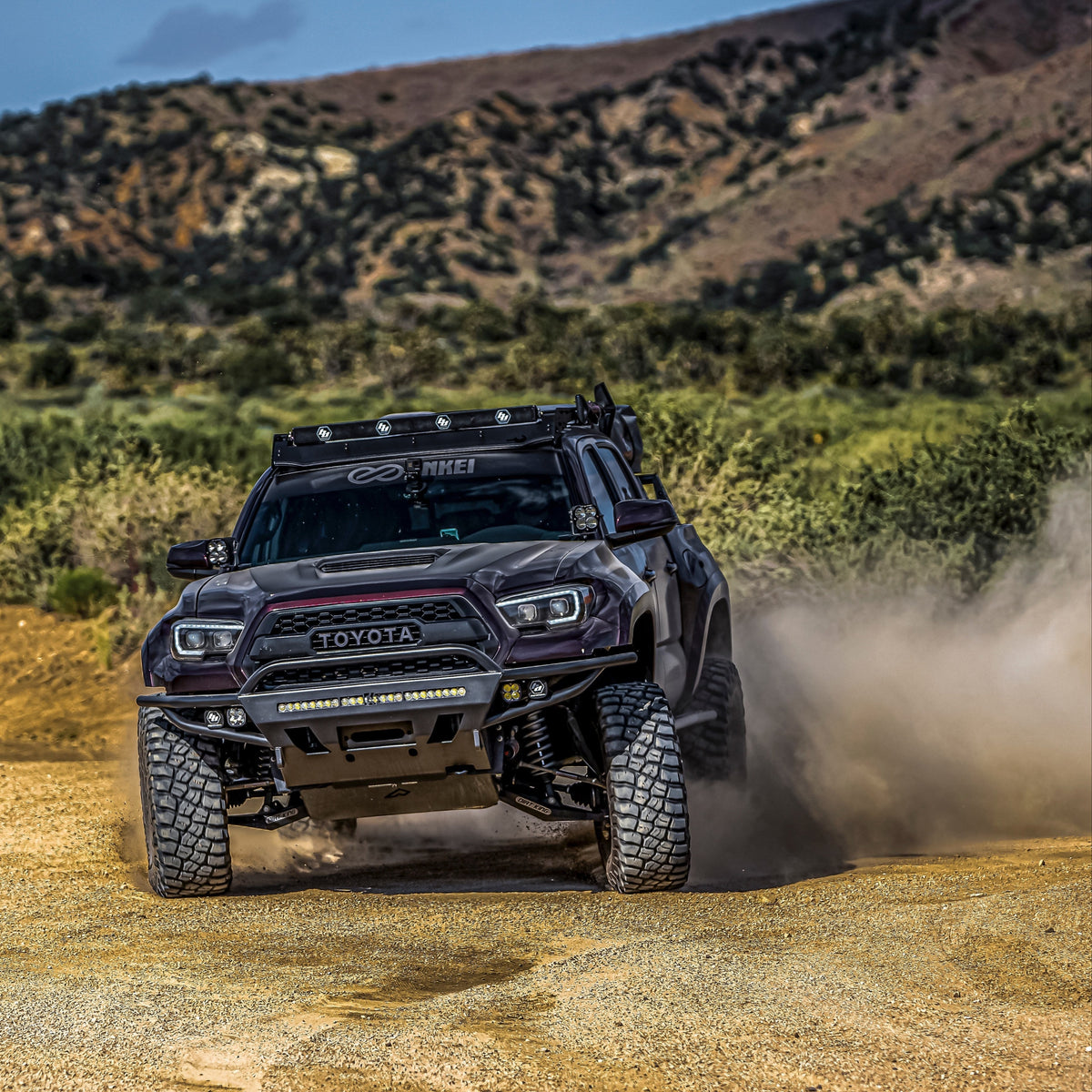

Purple wide-body Tacoma with long-travel suspension and a C4 Hybrid front winch bumper.
Wide-body Tacoma with purple wrap and a C4 Hybrid bumper.

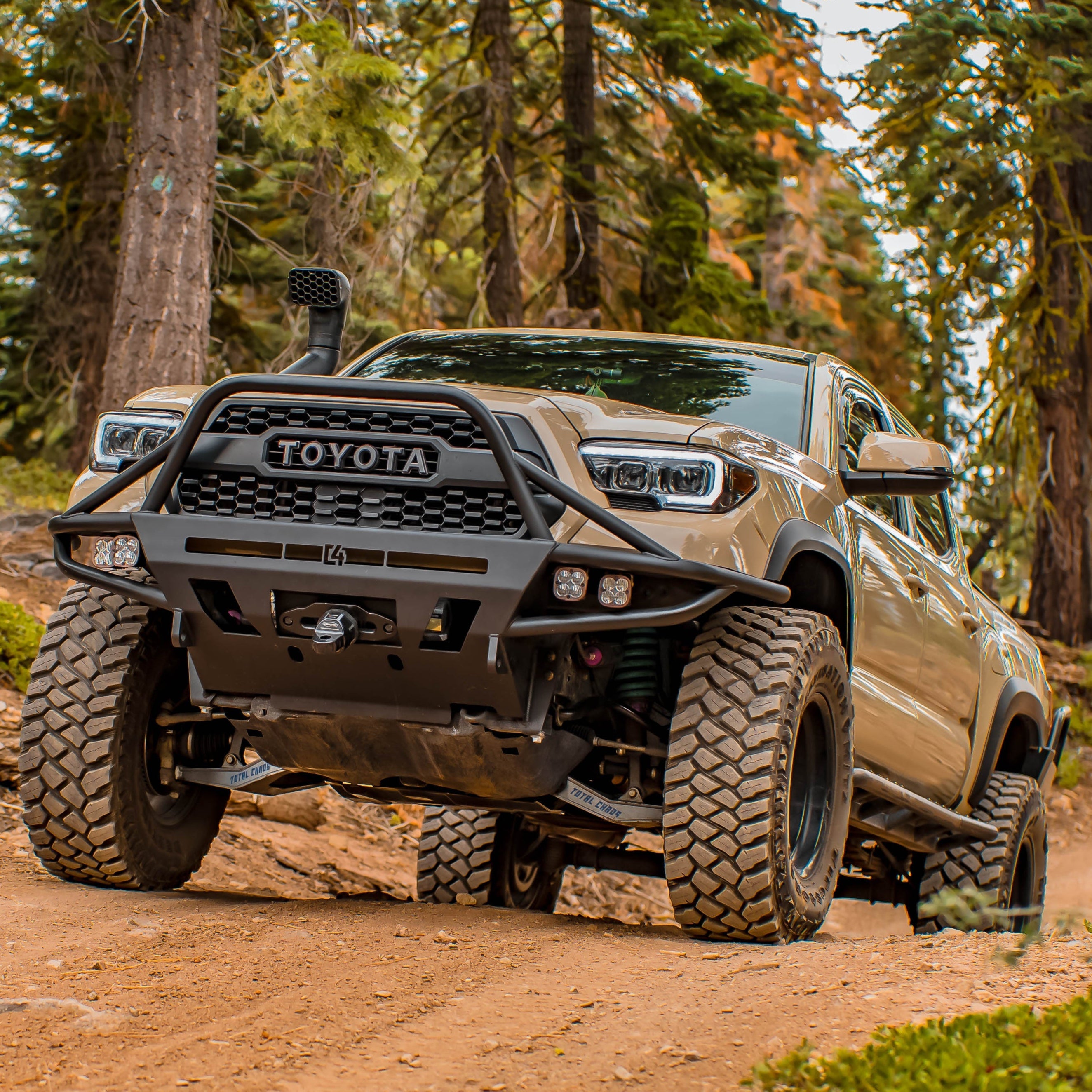

Tan 3rd Gen Tacoma on a mountain dirt road equipped with a snorkel and C4 Hybrid bumper and Sliders.
Low angle showing the C4 Hybrid front bumper on a 3rd Gen 4-door Tacoma.

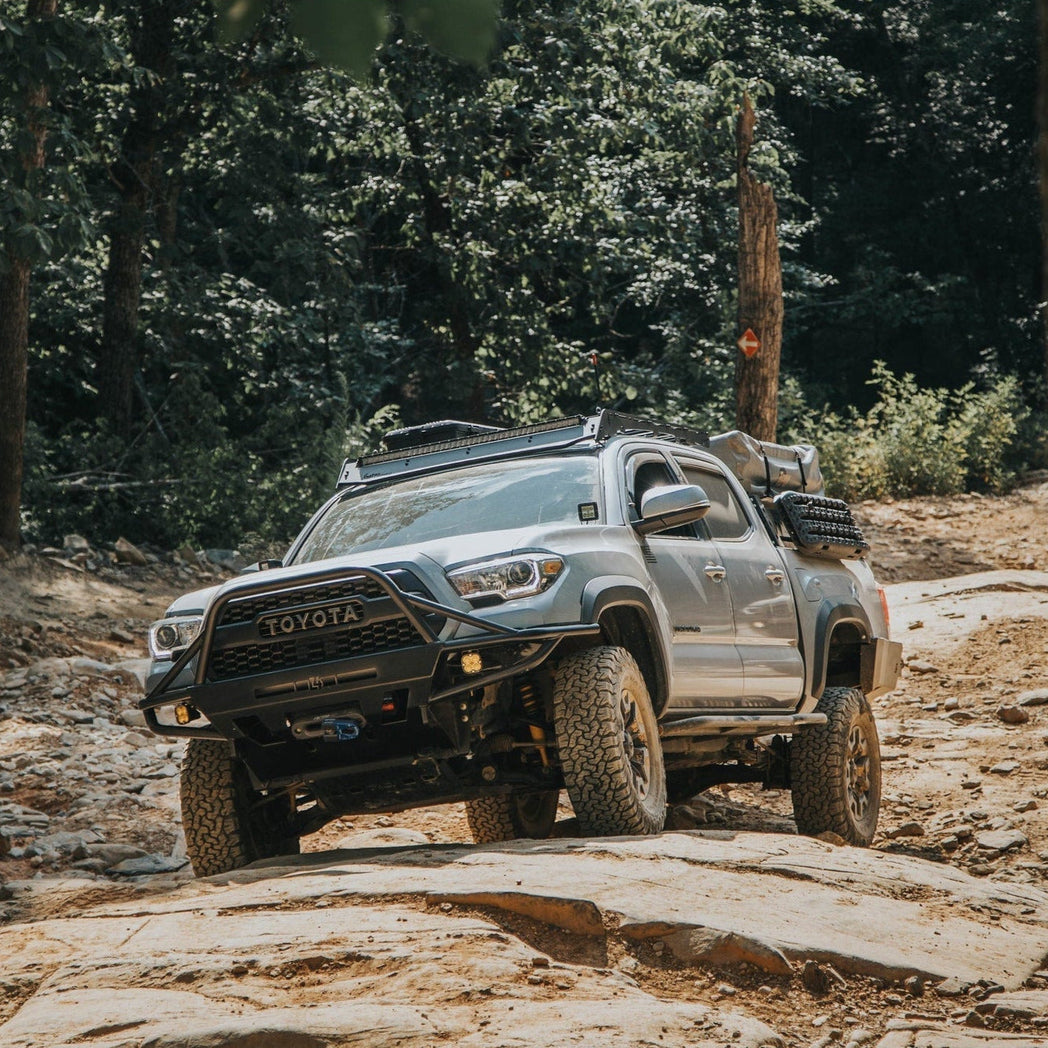

Baby blue four-door Tacoma fully outfitted for overlanding and with a C4 Hybrid front winch bumper.

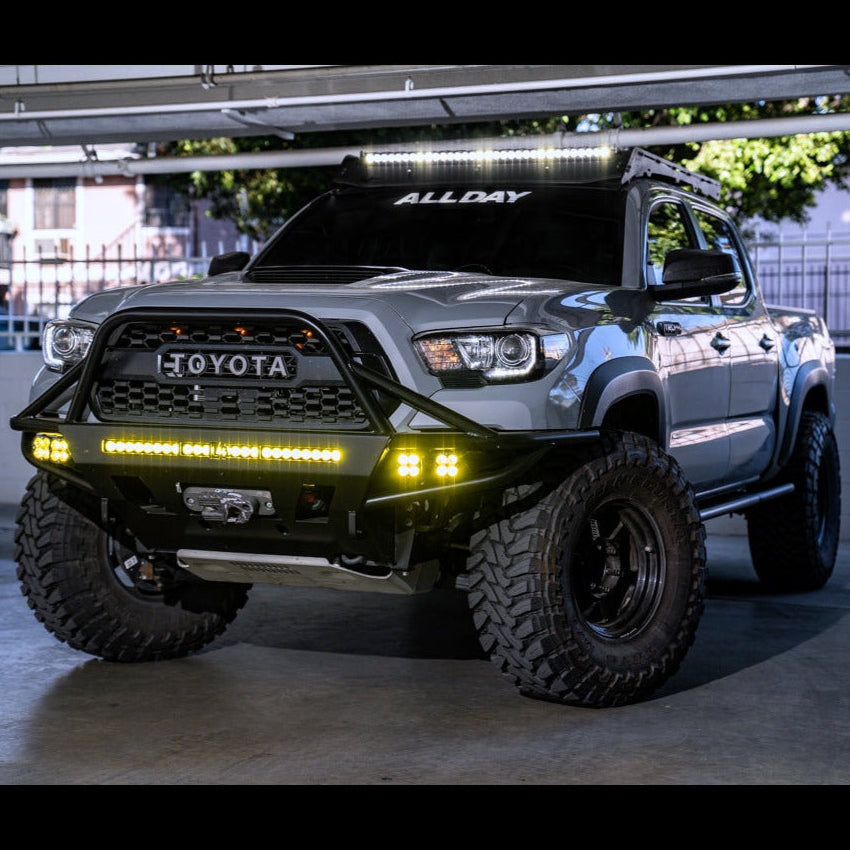

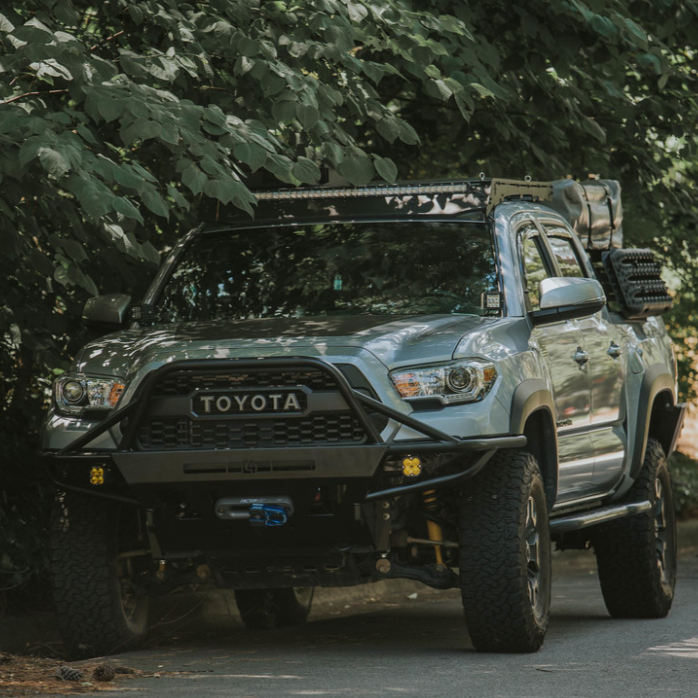

tacoma hybrid front bumper
tacoma hybrid front bumper

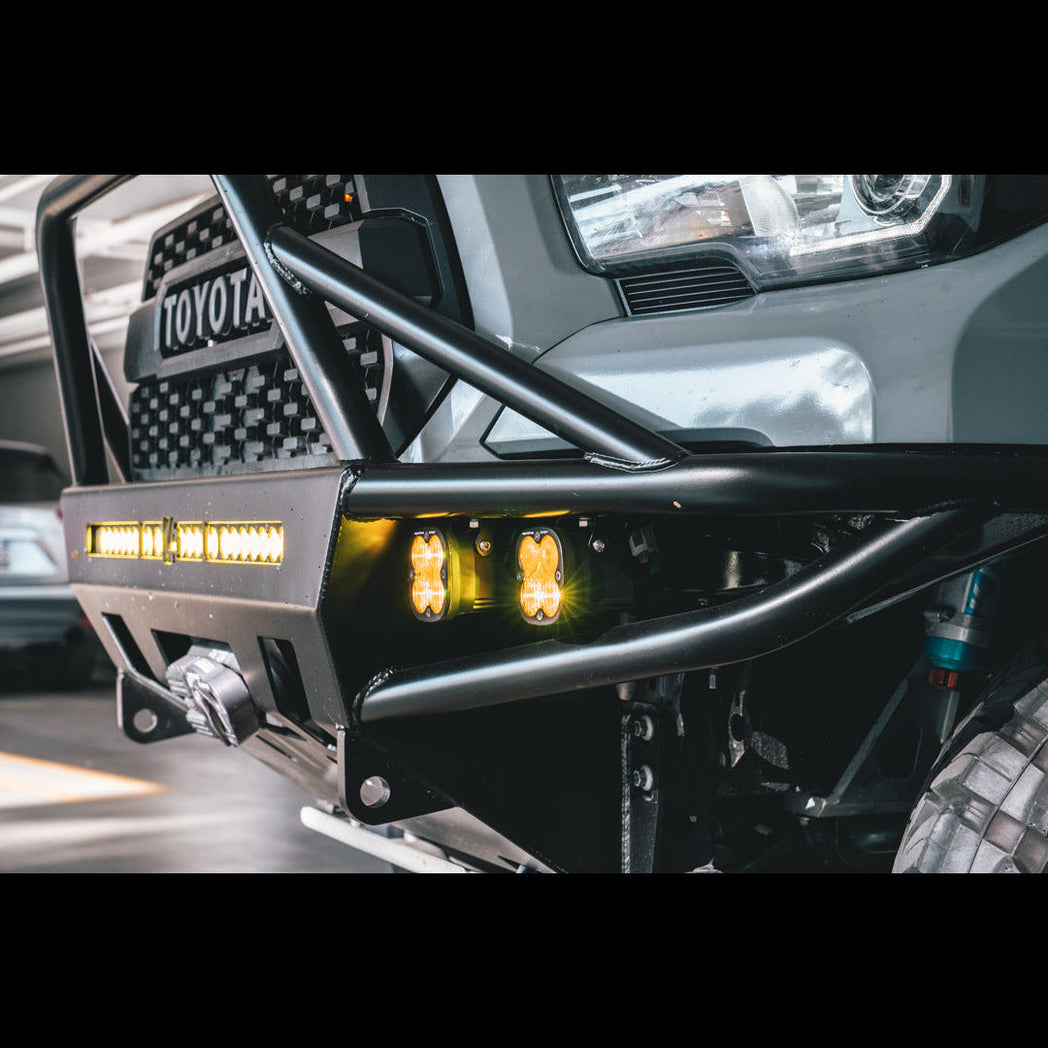

best tacoma hybrid front bumper
top tacoma hybrid front bumper

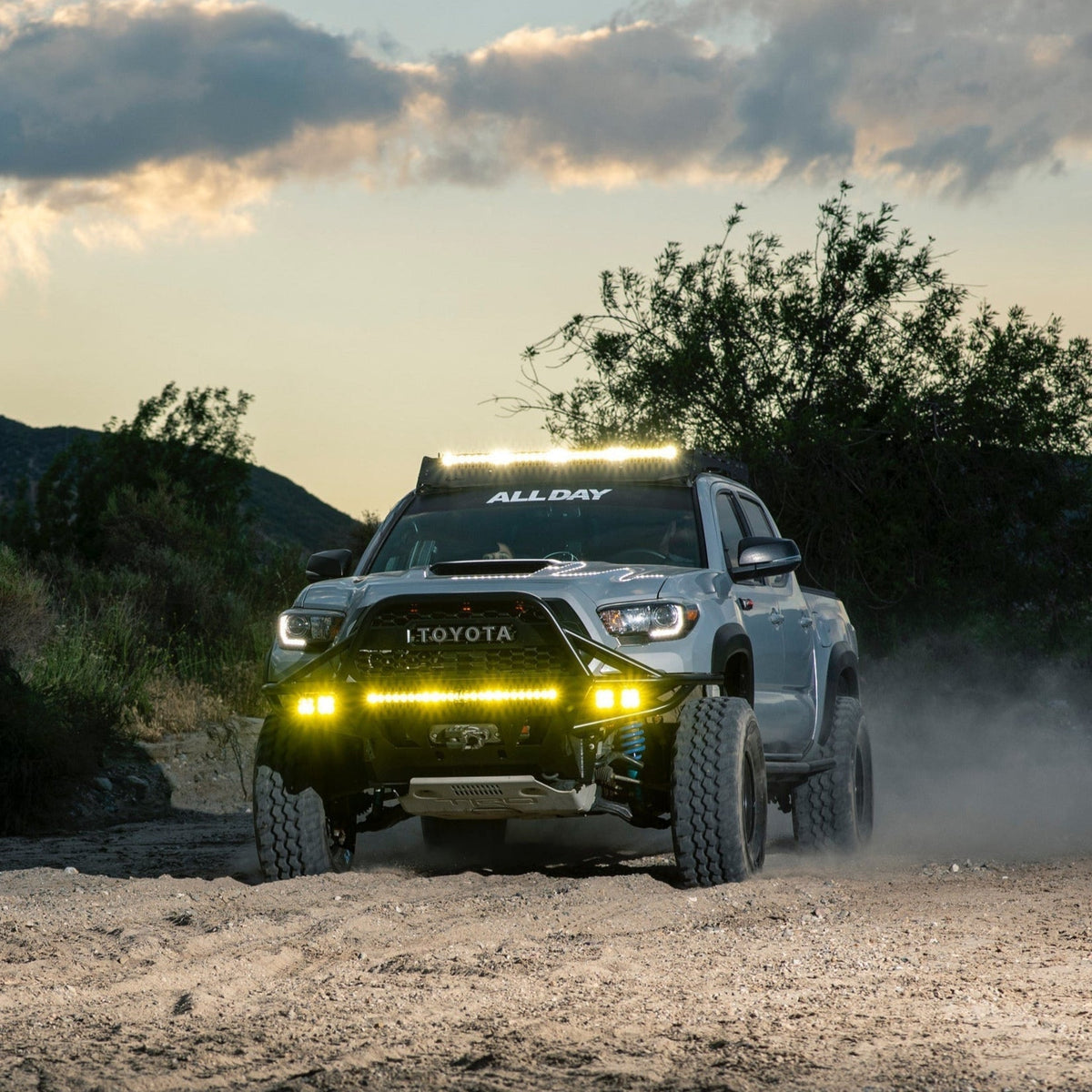

Blue Tacoma running high speed down a sand road at sunset with a C4 Hybrid front bumper with full-height bull bar.

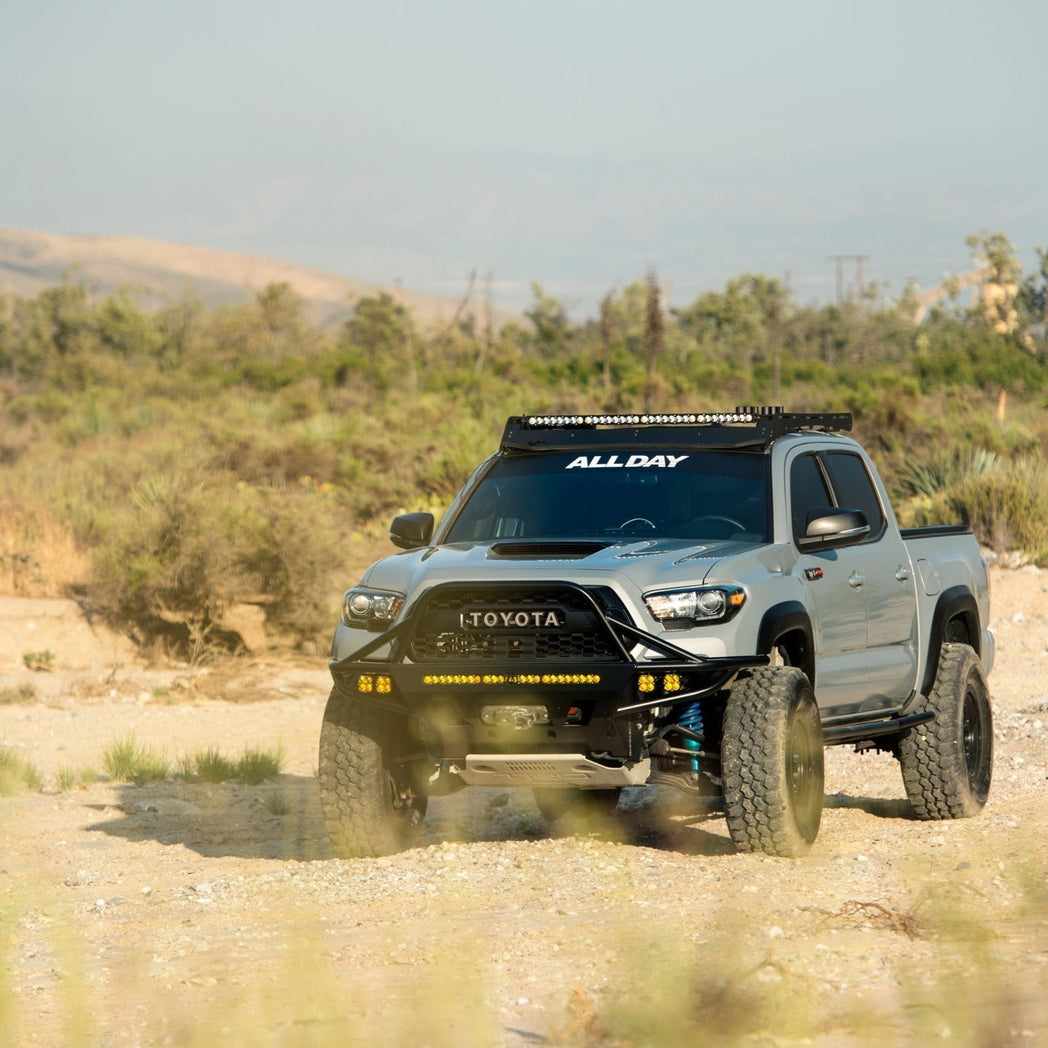

Blue Toyota Tacoma with C4 winch bumper.

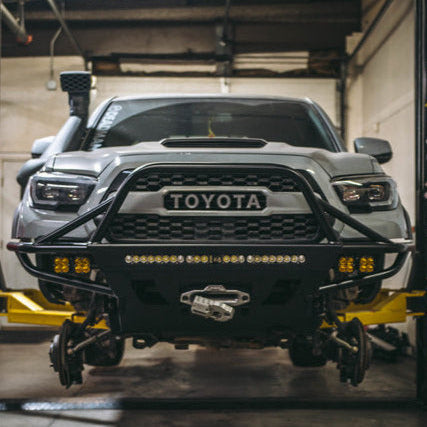

Tacoma on lift with the wheels off and equipped with a Hybrid bumper from C4 Fabrication.

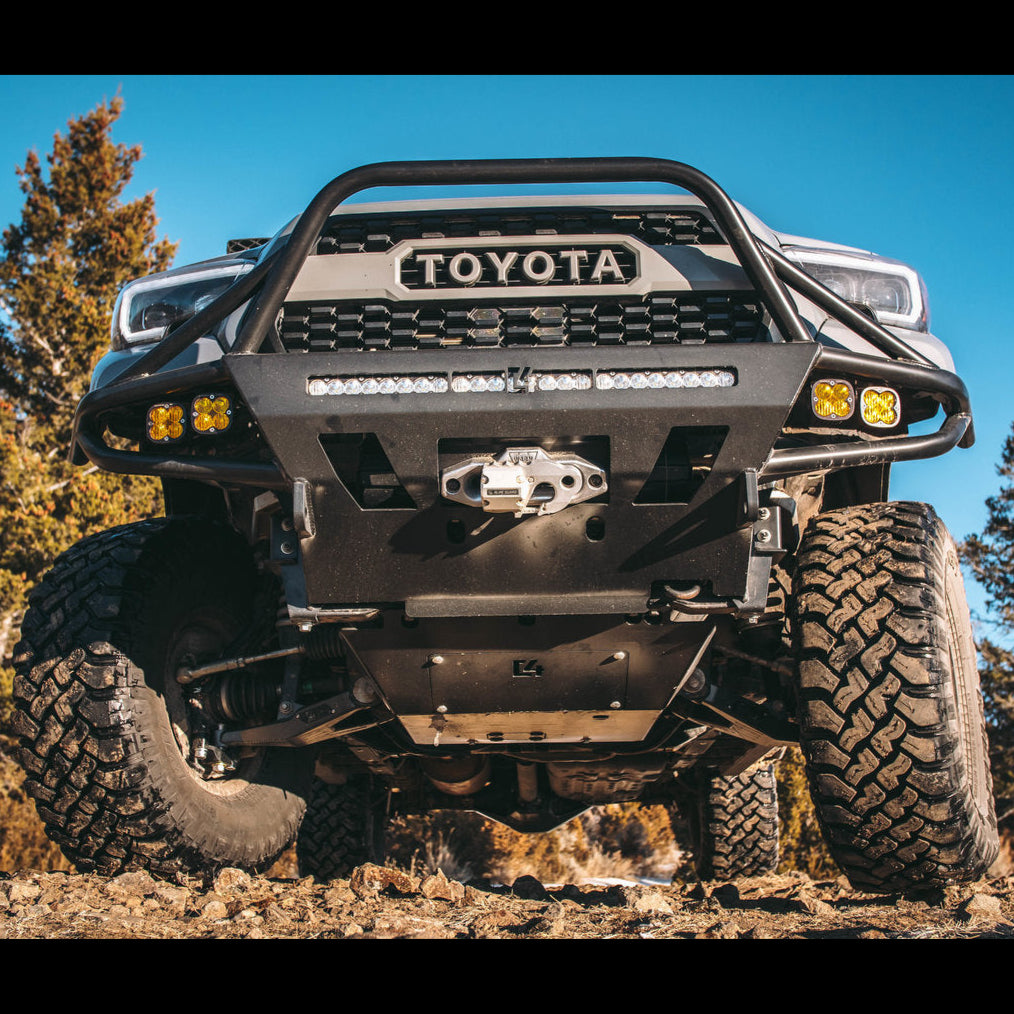

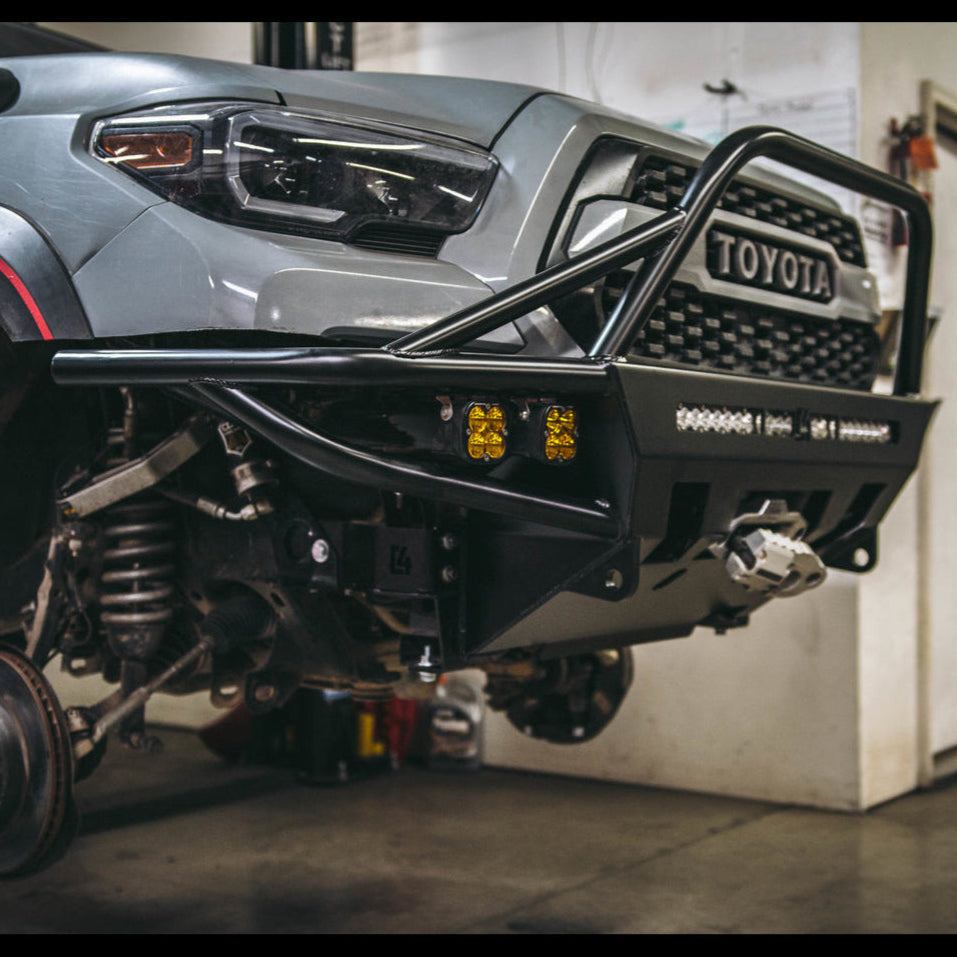

Close-up of the Hybrid bumper with full-height bull bar with tube gusset.

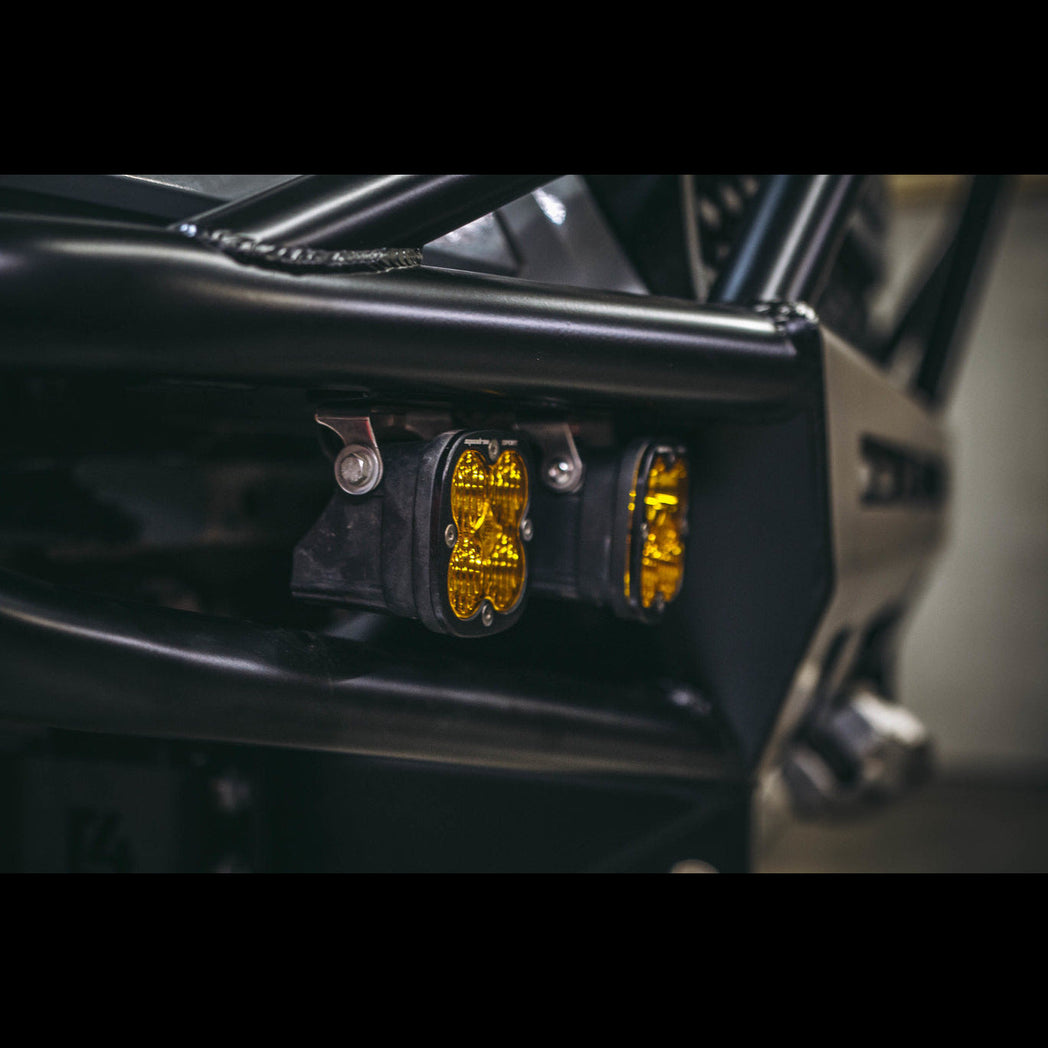

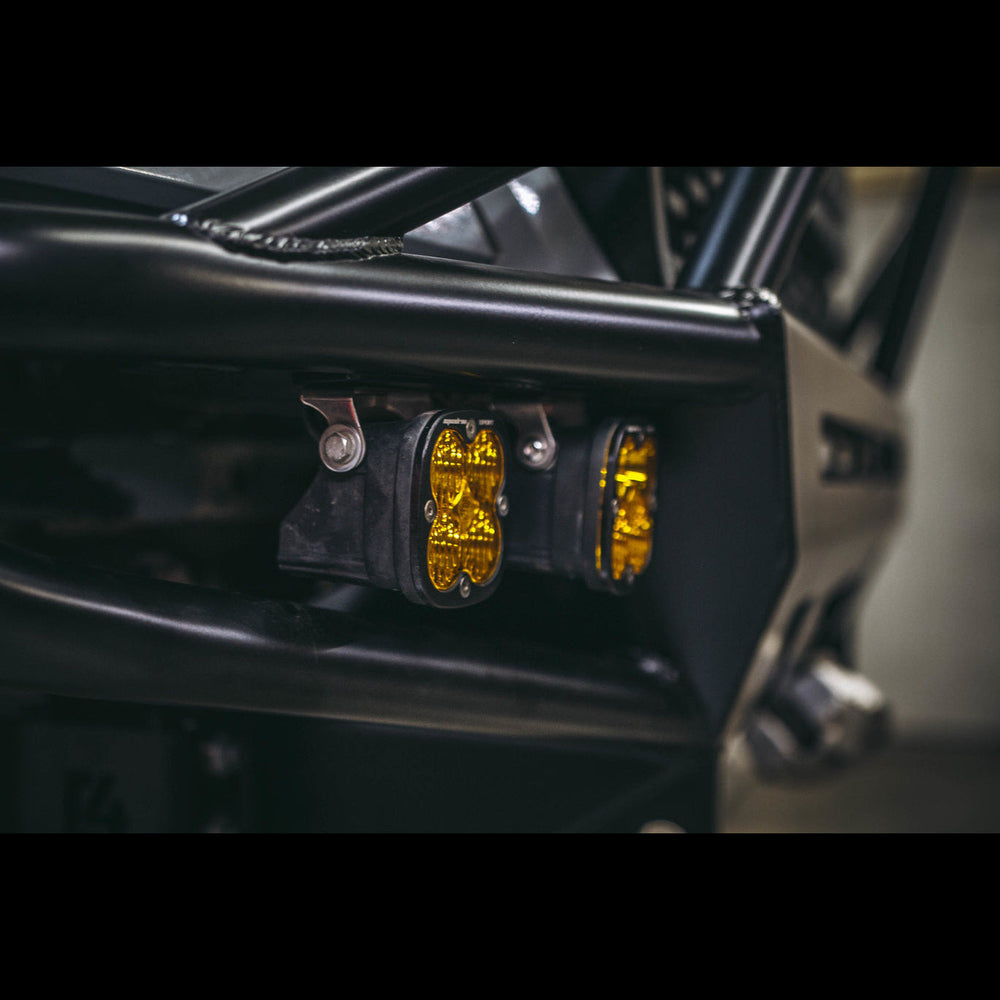

Close up of two Baja Designs lights mounted in the wings of a C4 Hybrid bumper.

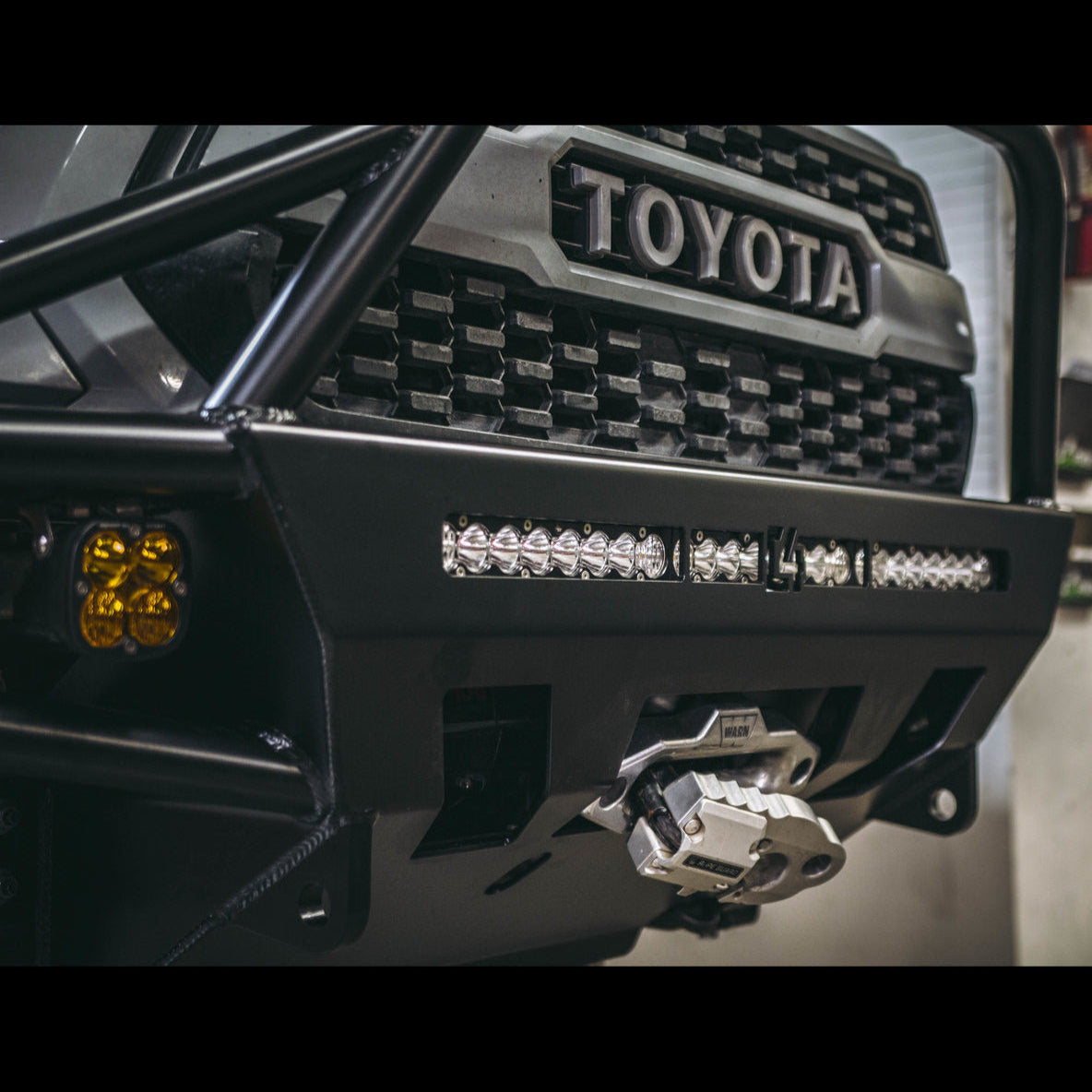

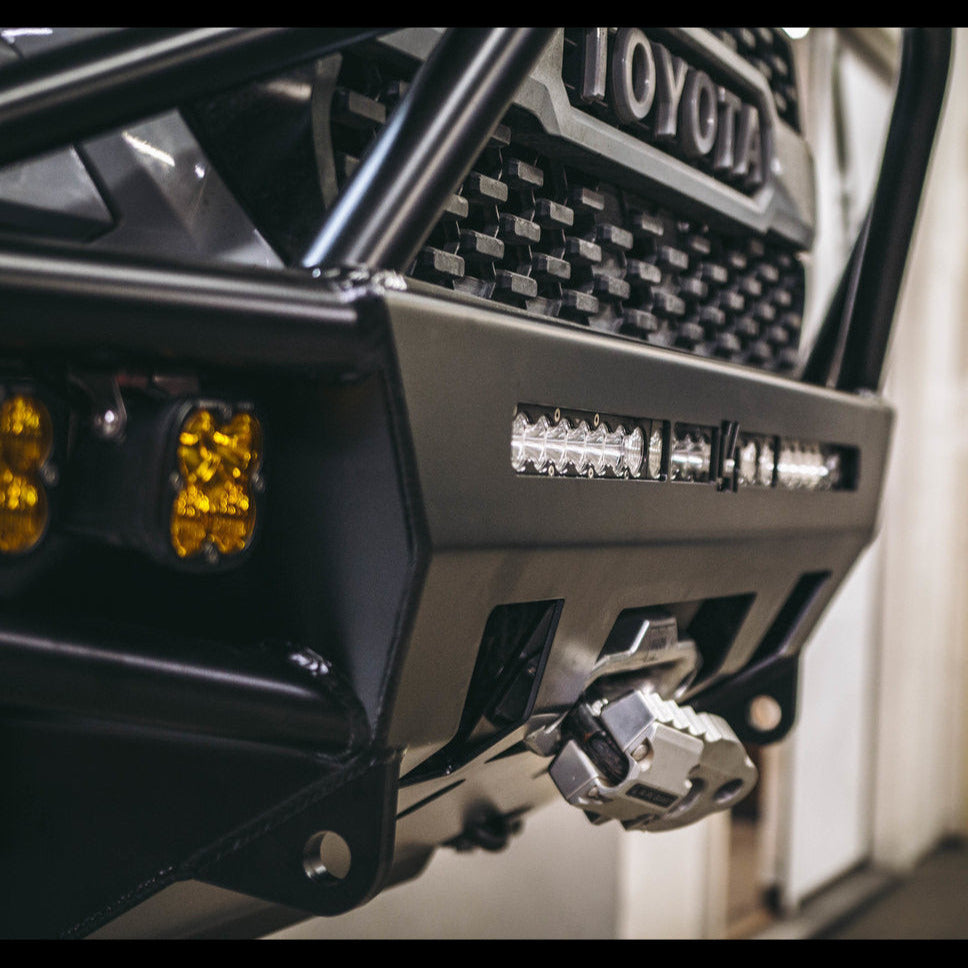

Single row light bar mounted inside a C4 Hybrid front winch bumper.
Light bar in a C4 bumper.

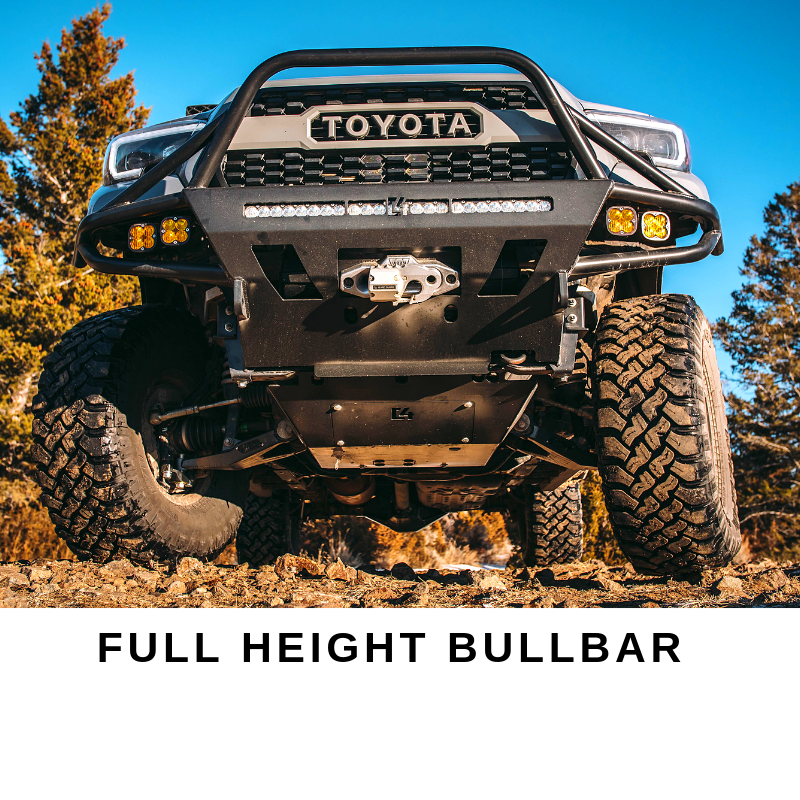

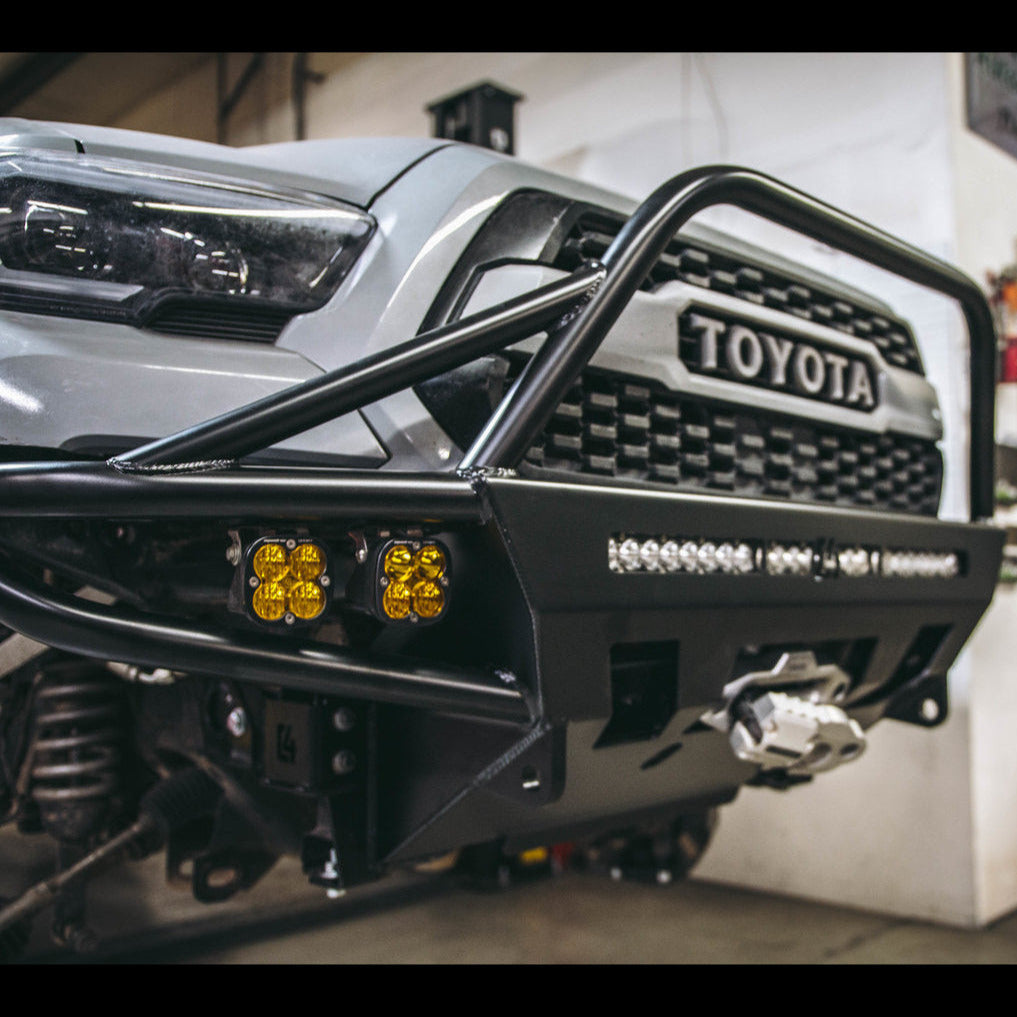

C4 Hybrid bumper with full-height bull bar and tube gussets.

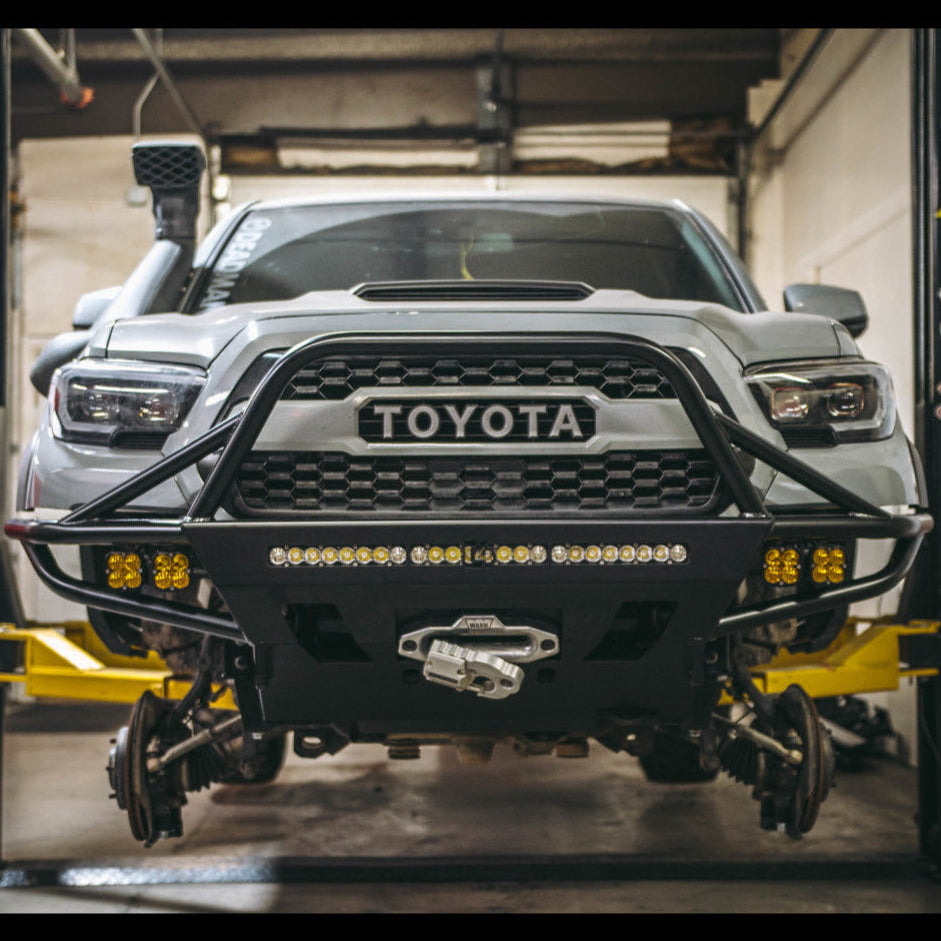

White Tacoma on a lift with the wheels off and zoomed in on the C4 Hybrid winch bumper with full compliment of lighting.

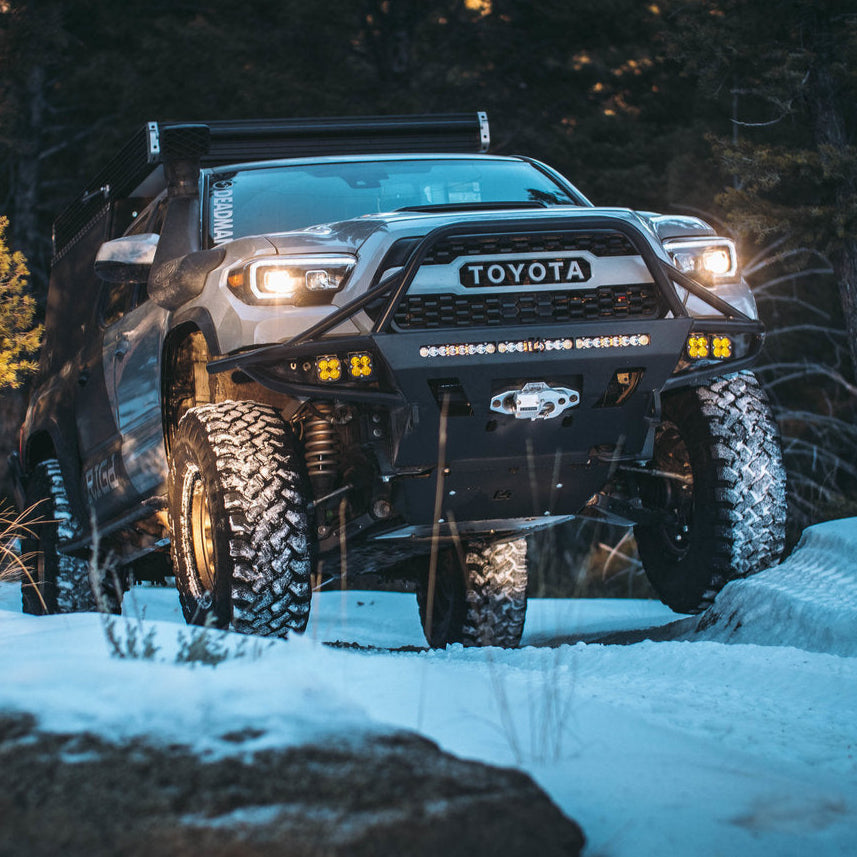

Tacoma off-roading in the snow and equipped with a pop-top topper and C4 Hybrid front bumper.

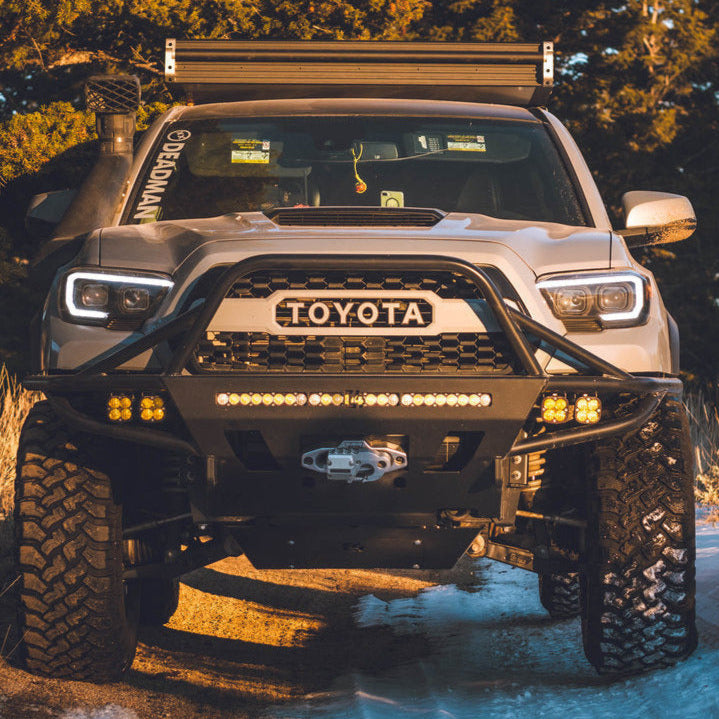

White Tacoma with C4 bumper.
Low angle of the C4 Hybrid bumper and front skid plate.

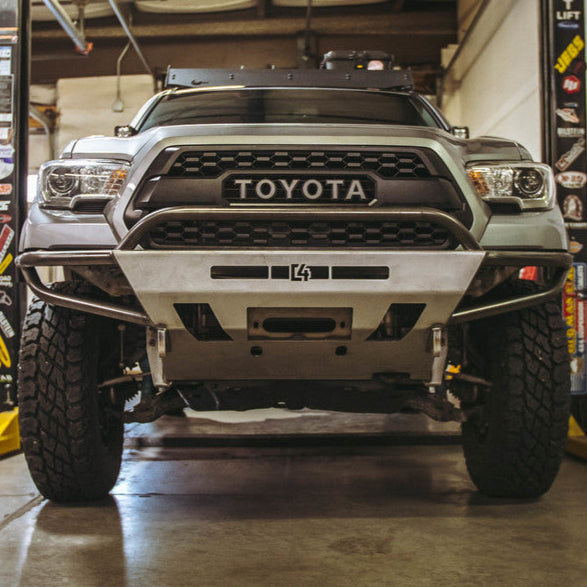

Bare steel view of the C4 Hybrid bumper with mid-height bull bar.

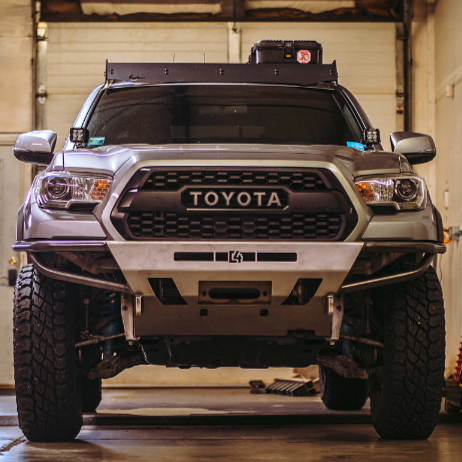

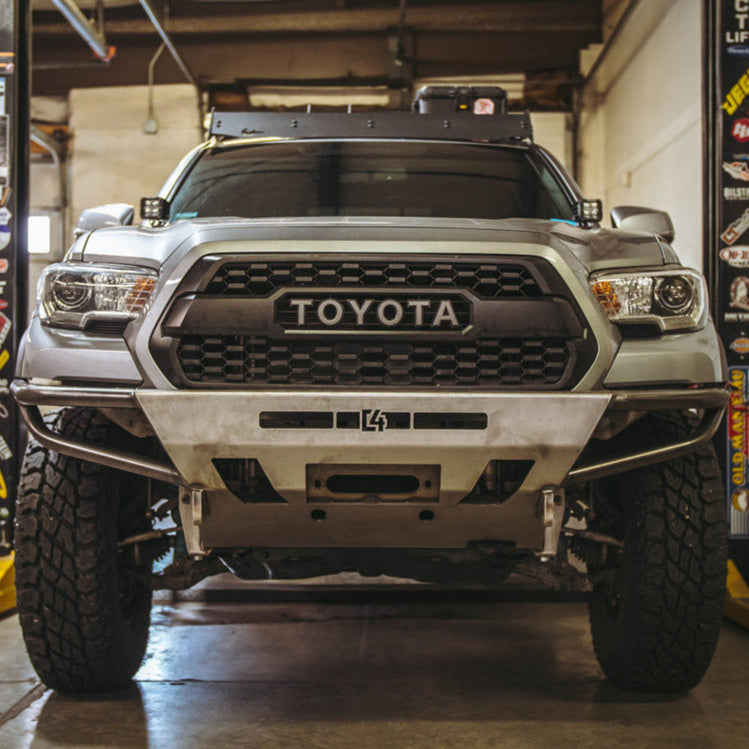

Bare steel version of the C4 Hybrid bumper with no bull bar.

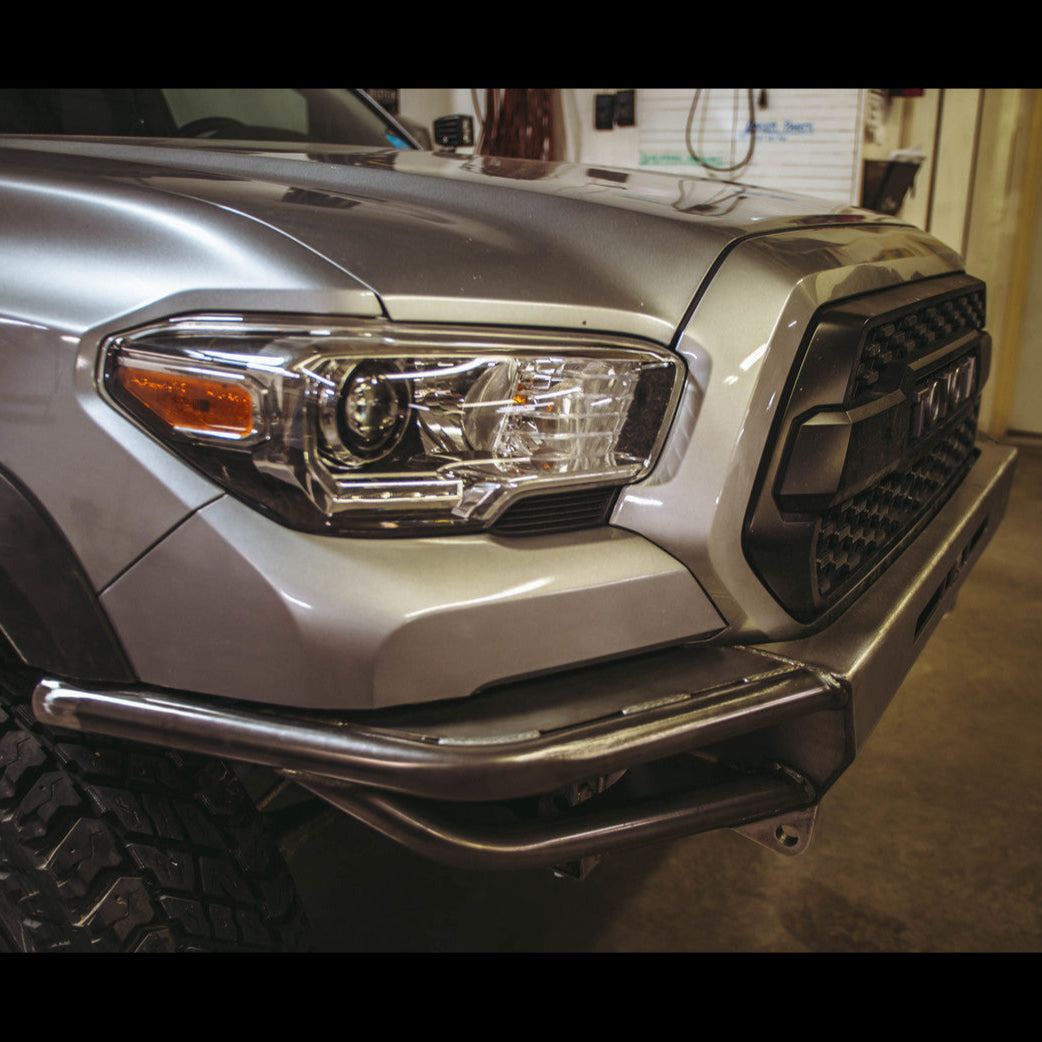

Top-down view showing the flats on the wings and center bumper section of the C4 Hybrid bumper.

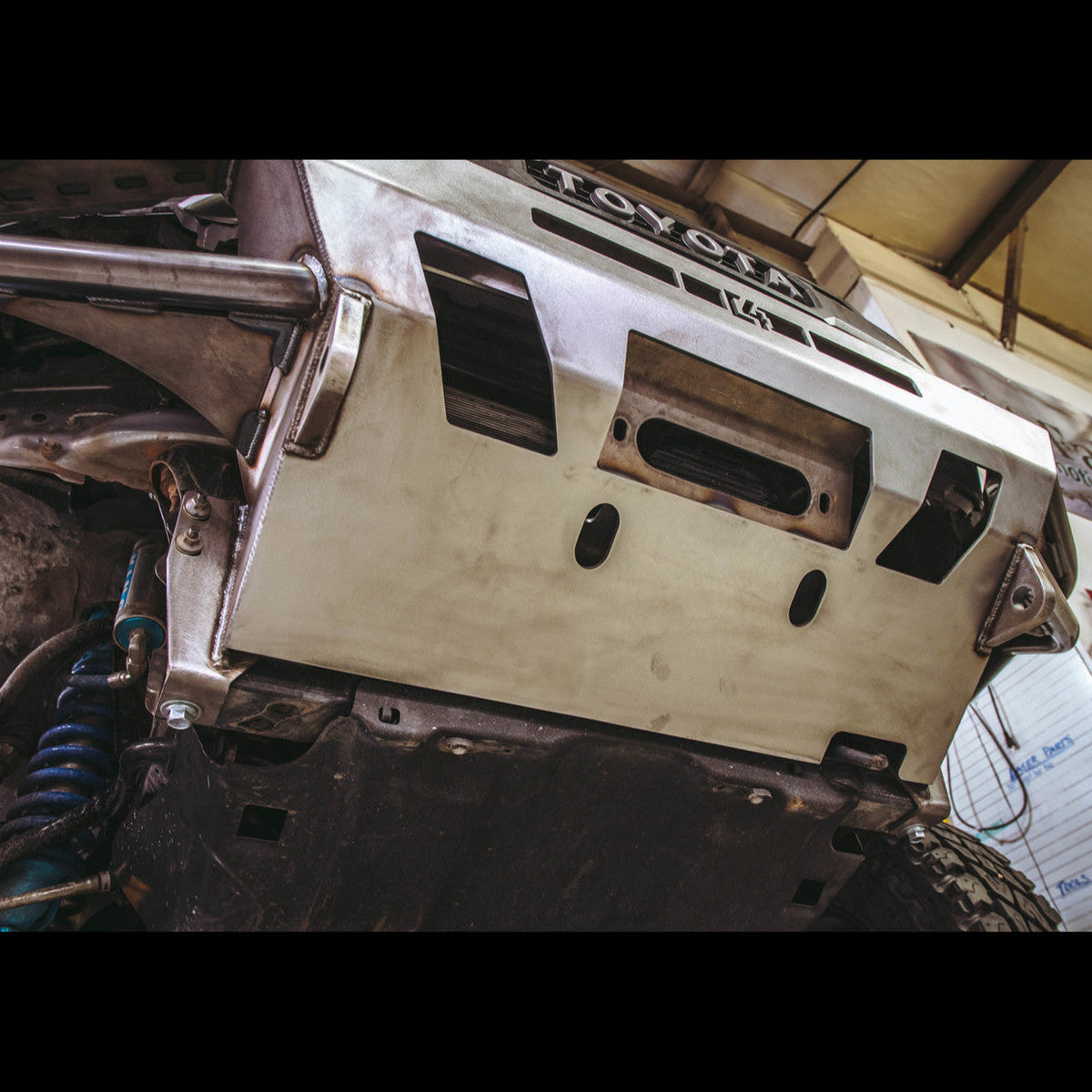

Bottom view of the center section of the C4 Hybrid bumper.

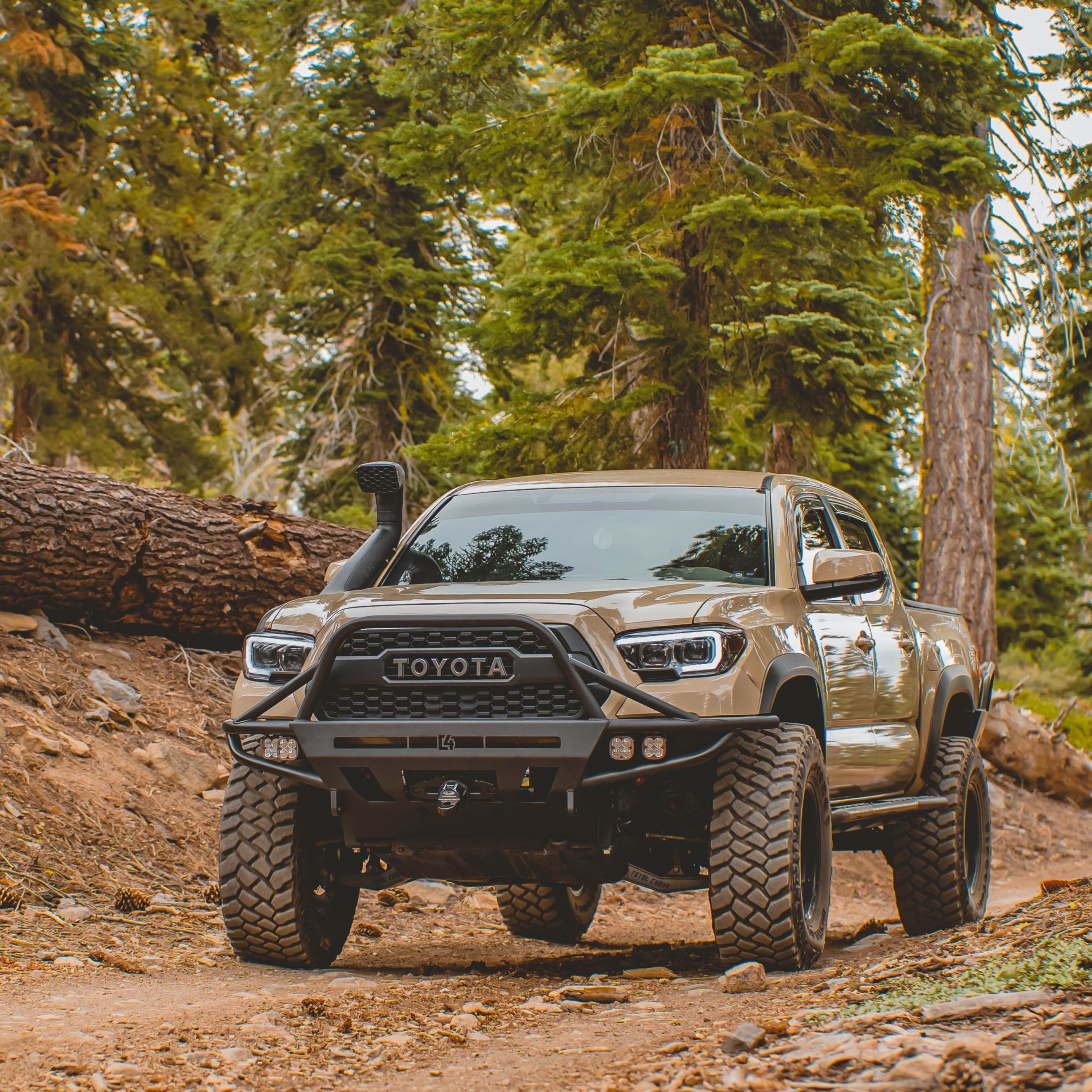

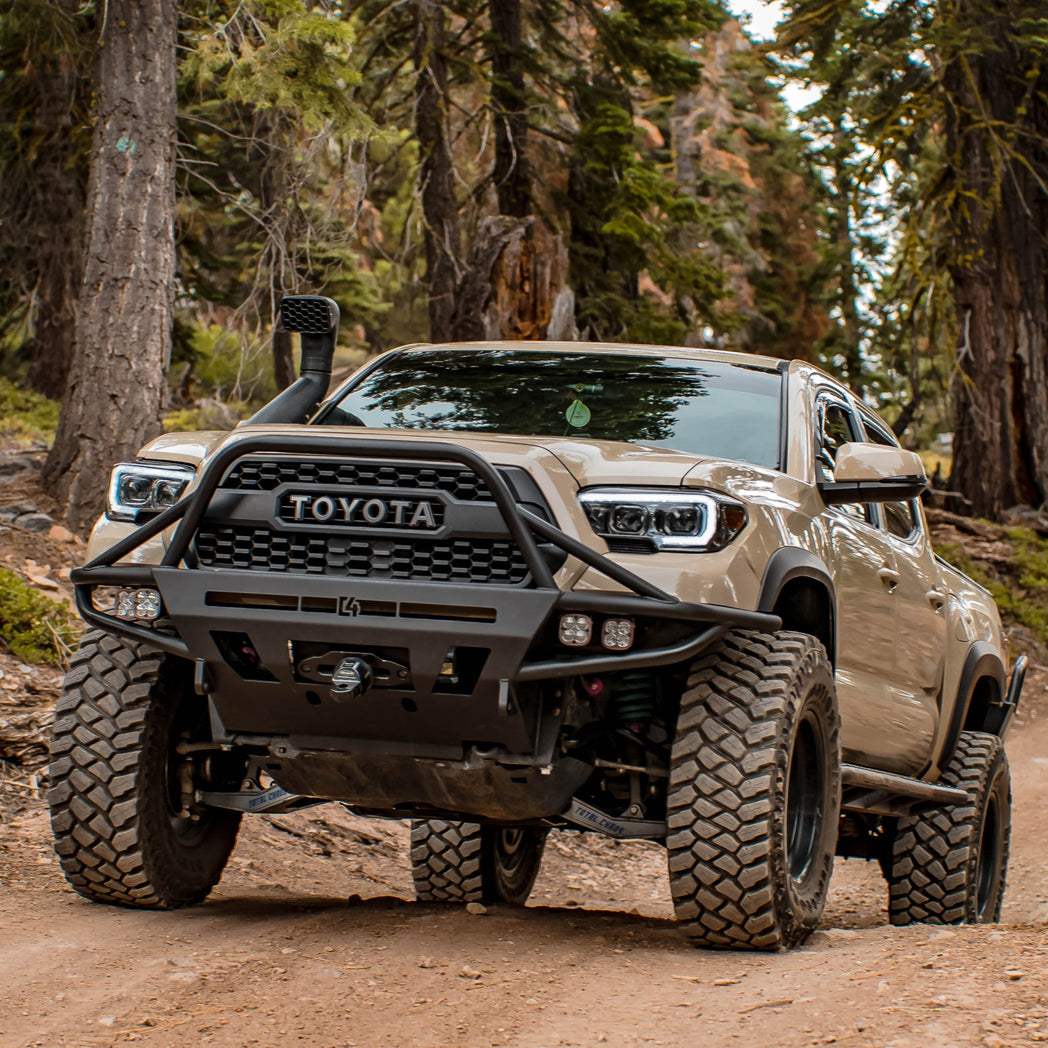

Tan Tacoma on a mountain trail with a C4 Hybrid bumper with full-height bull bar with tube gussets.

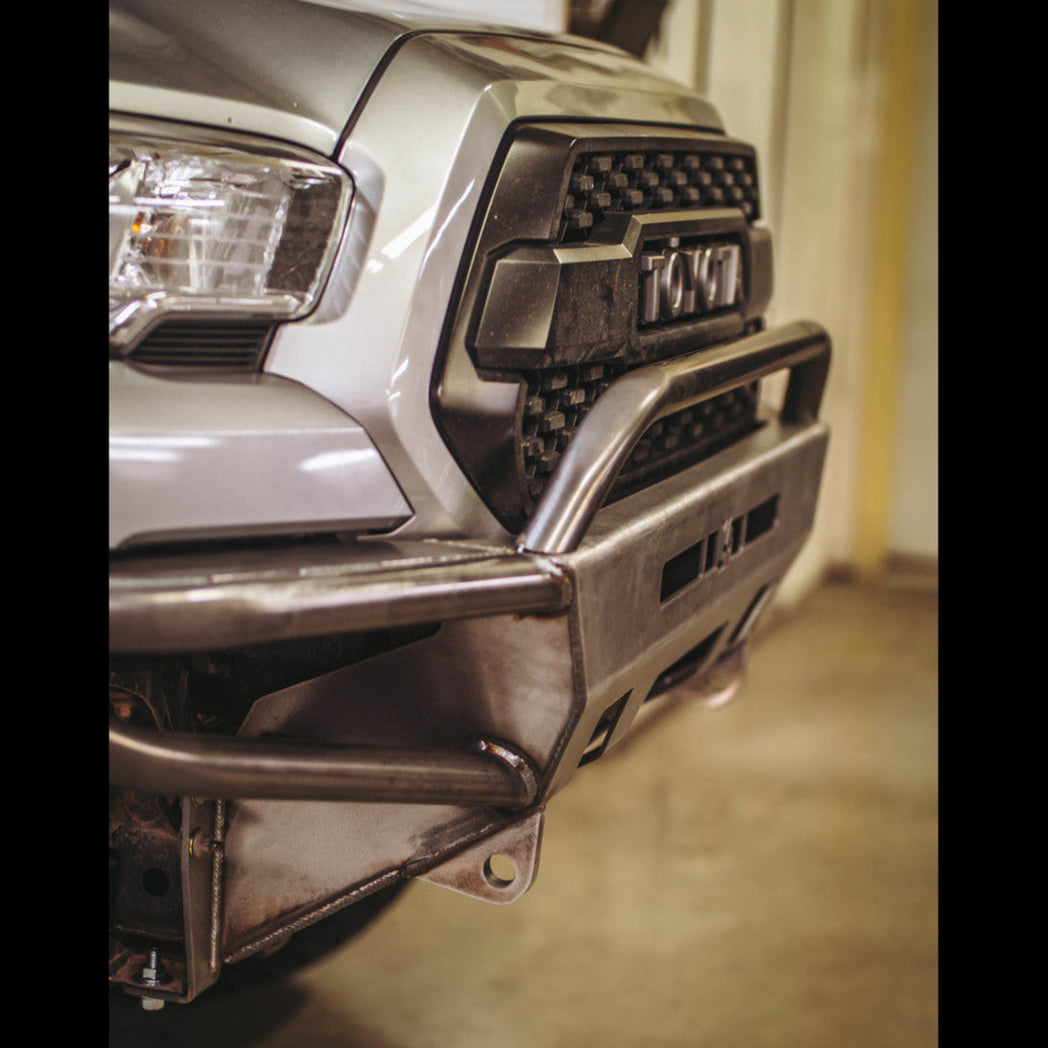

Close up of the C4 Hybrid bumper with mid-height bull bar.

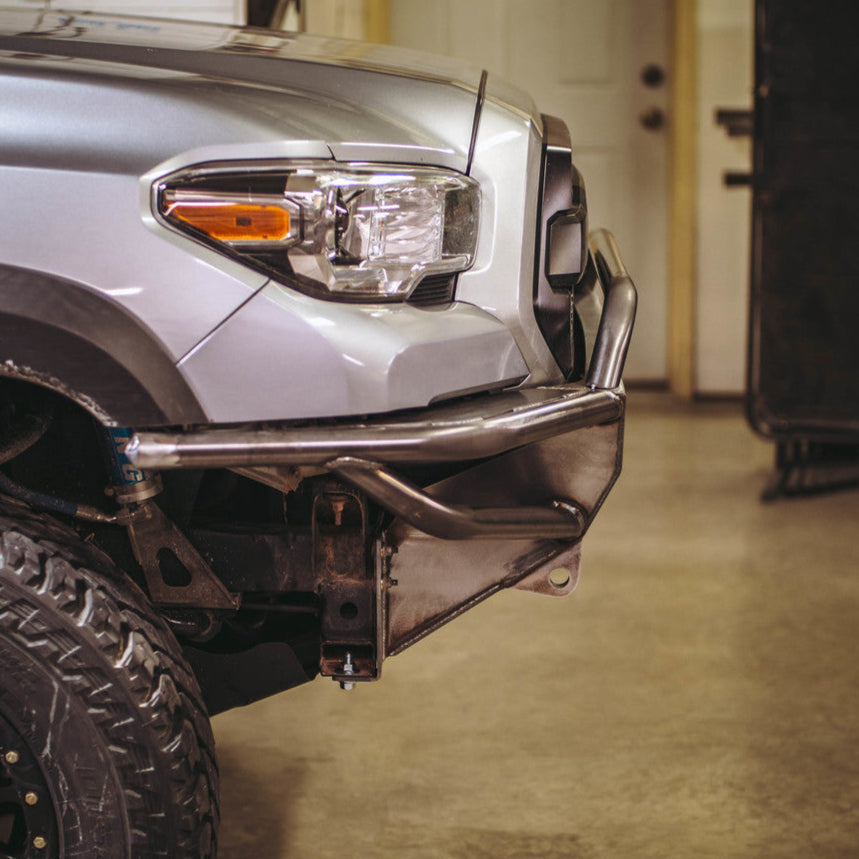

Side view of the C4 Hybrid bumper with mid-height bull bar showing how tight the bull bar fits to the grille.
Straight front view of the C4 Hybrid bumper in raw steel like it ships to all customers.

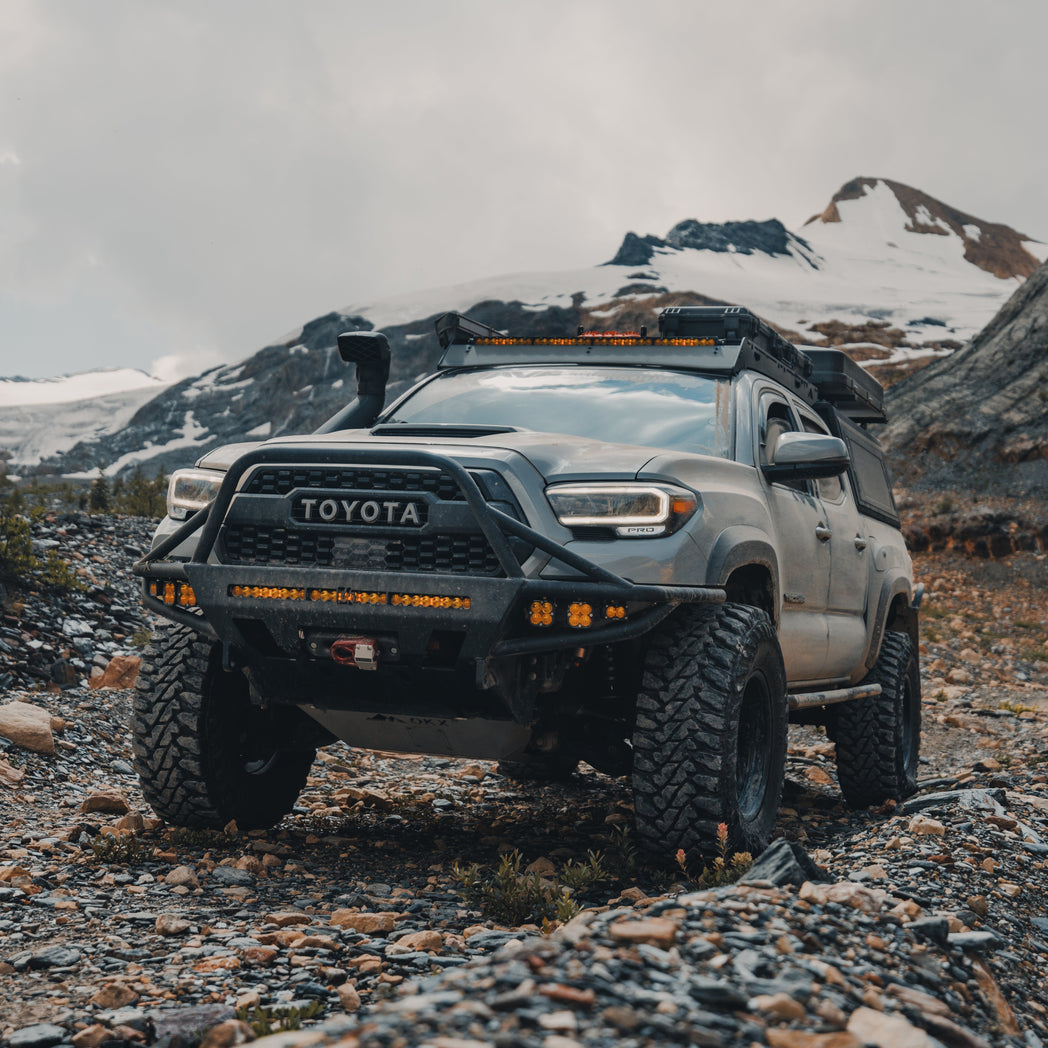

Tacoma on a shale road fully equipped for adventure and with a C4 Hybrid bumper on front.
Cover photo of the C4 Hybrid front bumper for 3rd Gen Toyota Tacomas with the background faded out and emphasis on the truck and bumper. Three digital renderings showing the three bull bar options for the C4 Hybrid winch bumper - no bull bar, mid-height bull bar and full-height bull bar with tube gussets. Tan Toyota Tacoma equipped with the C4 Hybrid winch bumper with full-height bull bar with tube gussets. Purple 3rd Generation Tacoma with a C4 Hybrid front winch bumper with low bull bar. Close up of the tube style wings on the C4 Hybrid winch bumper. Purple Tacoma with C4 Hybrid front winch bumper. Purple wide-body Tacoma with long-travel suspension and a C4 Hybrid front winch bumper. Wide-body Tacoma with purple wrap and a C4 Hybrid bumper. Tan 3rd Gen Tacoma on a mountain dirt road equipped with a snorkel and C4 Hybrid bumper and Sliders. Low angle showing the C4 Hybrid front bumper on a 3rd Gen 4-door Tacoma. Baby blue four-door Tacoma fully outfitted for overlanding and with a C4 Hybrid front winch bumper. tacoma hybrid front bumper tacoma hybrid front bumper best tacoma hybrid front bumper top tacoma hybrid front bumper Blue Tacoma running high speed down a sand road at sunset with a C4 Hybrid front bumper with full-height bull bar. Blue Toyota Tacoma with C4 winch bumper. Tacoma on lift with the wheels off and equipped with a Hybrid bumper from C4 Fabrication. Close-up of the Hybrid bumper with full-height bull bar with tube gusset. Close up of two Baja Designs lights mounted in the wings of a C4 Hybrid bumper. Single row light bar mounted inside a C4 Hybrid front winch bumper. Light bar in a C4 bumper. C4 Hybrid bumper with full-height bull bar and tube gussets. White Tacoma on a lift with the wheels off and zoomed in on the C4 Hybrid winch bumper with full compliment of lighting. Tacoma off-roading in the snow and equipped with a pop-top topper and C4 Hybrid front bumper. White Tacoma with C4 bumper. Low angle of the C4 Hybrid bumper and front skid plate. Bare steel view of the C4 Hybrid bumper with mid-height bull bar. Bare steel version of the C4 Hybrid bumper with no bull bar. Top-down view showing the flats on the wings and center bumper section of the C4 Hybrid bumper. Bottom view of the center section of the C4 Hybrid bumper. Tan Tacoma on a mountain trail with a C4 Hybrid bumper with full-height bull bar with tube gussets. Close up of the C4 Hybrid bumper with mid-height bull bar. Side view of the C4 Hybrid bumper with mid-height bull bar showing how tight the bull bar fits to the grille. Straight front view of the C4 Hybrid bumper in raw steel like it ships to all customers. Tacoma on a shale road fully equipped for adventure and with a C4 Hybrid bumper on front.

C4 Fabrication

Tacoma Hybrid Front Bumper / 3rd Gen / 2016-2023

LEAD TIME: 6–8 WEEKS (Built to Order)

Our 3rd Gen Tacoma Hybrid Front Bumper strikes the perfect balance between rugged strength and streamlined functionality. Engineered for 3rd Gen Tacomas, this high-clearance bumper requires trimming of the factory plastic bumper for proper installation. This results in a sleek, aggressive fit that maximizes approach angle.

Designed to accommodate most 8,000-12,000 lb winches, it’s best paired with models that allow remote relocation of the control box. Confirmed fitment on ComeUp, Smittybilt X20, Warn Zeon, and VR Series. Winches with integrated control boxes may need slight modification to the grille support brackets. For ideal performance, we recommend synthetic rope and a hawse-style fairlead.

This bumper is also built to house a 30" single-row light bar (specifically the Baja Designs S8), with compatibility for the RIGID 30" SR Series and Extreme LED 5D. Additional cutouts allow mounting of up to 4 Baja Designs Squadron lights, 2 S2 lights, and provide direct winch lever access.

Cover photo of the C4 Hybrid front bumper for 3rd Gen Toyota Tacomas with the background faded out and emphasis on the truck and bumper. Close
Raw Powder Coat
No Bull Bar Mid-Height Bull Bar Full-Height Bull Bar w/ Tube Gussets
No Thanks (Standard Width) Yes (Build Wider)
SKU: 1200-3216-30-NB
$1,454.00
-%
$1,454.00
$1,454.00
Add to cart
Why Shop With Us
Manufacturer Warranty

Minimum of 12 Months

Guaranteed Fitment

Always the correct parts

Shop with Confidence

Your information is safe

In-House Experts

We know our products
Compatibility

Toyota Tacoma

3rd Gen

2016 – 2023
Shipping & Returns
  • All products are subject to manufacturer lead times.
  • Returns will be handled by Off-Road Place per return policy.
  • Product ships from Manufacturer at this time.
