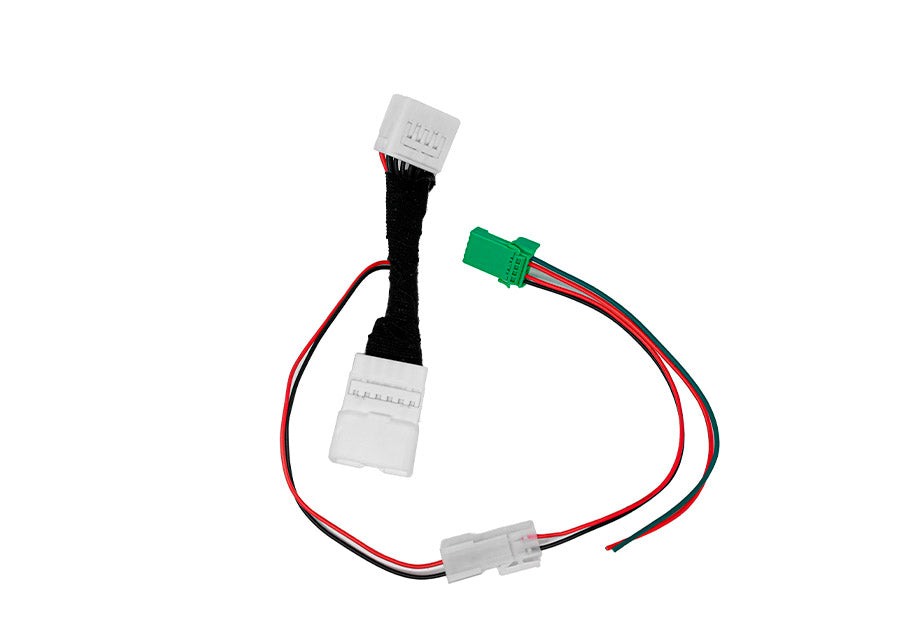

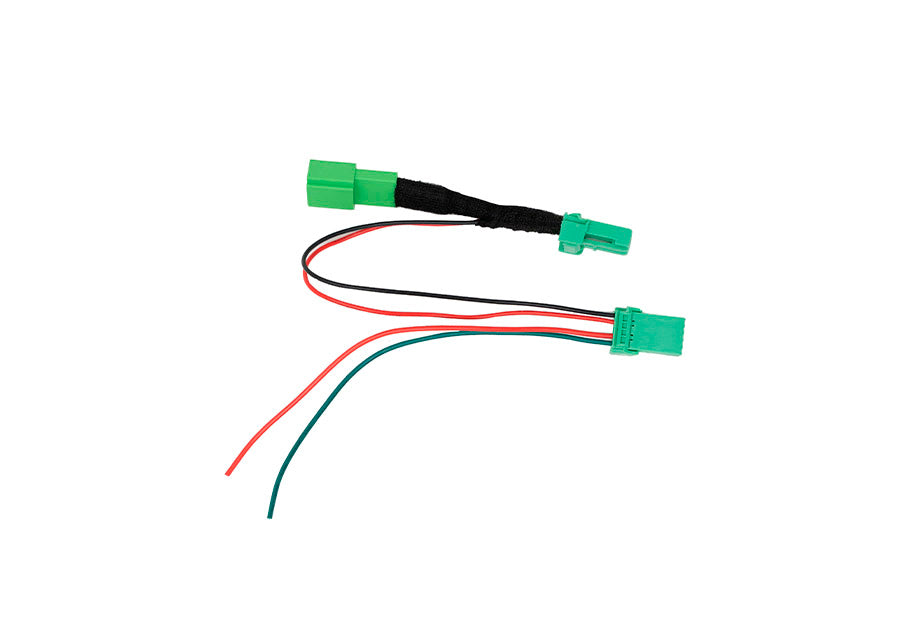

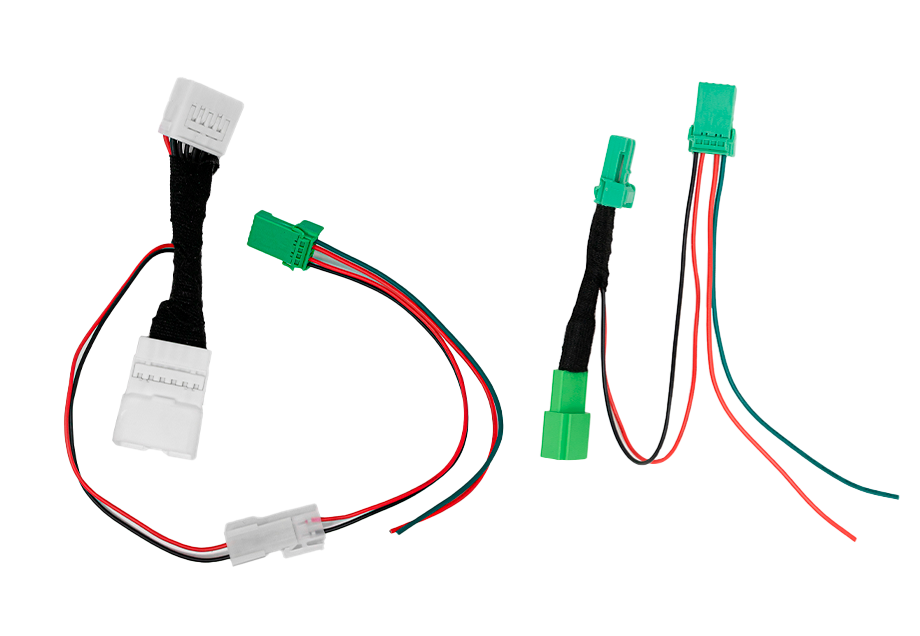

Plug and Play Switch Illumination Harness

Having a hard time getting those aftermarket switches to light up like your factory switches? Are you fed up with splicing into your factory wiring to get those switches working? We have a solution!

These are plug-and-play harnesses that are designed to illuminate your aftermarket switches without the need to use Vampire Clips, T-taps, or any other device that might cut one of your tiny factory wires.

How It Works:

• Each harness is intended to be plugged into the back of a factory connector and “borrow” the factory illumination circuit that runs through that connector.
• Included in each kit is an extra green connector that completely replaces the one you get with your CH4x4/Cali-Raised/AOB/MIC-Tuning Toyota-style switches so there is no more guesswork when it comes to illuminating your switches.
• When you use these harnesses your new switch(es) will light up with the rest of the switches in your truck and be dimmable using the dimmer on your dash.
• The left of the steering wheel harness allows you to illuminate 1 aftermarket switch without splicing.

NOTE: Works for 3rd Gen Tacoma Only.
