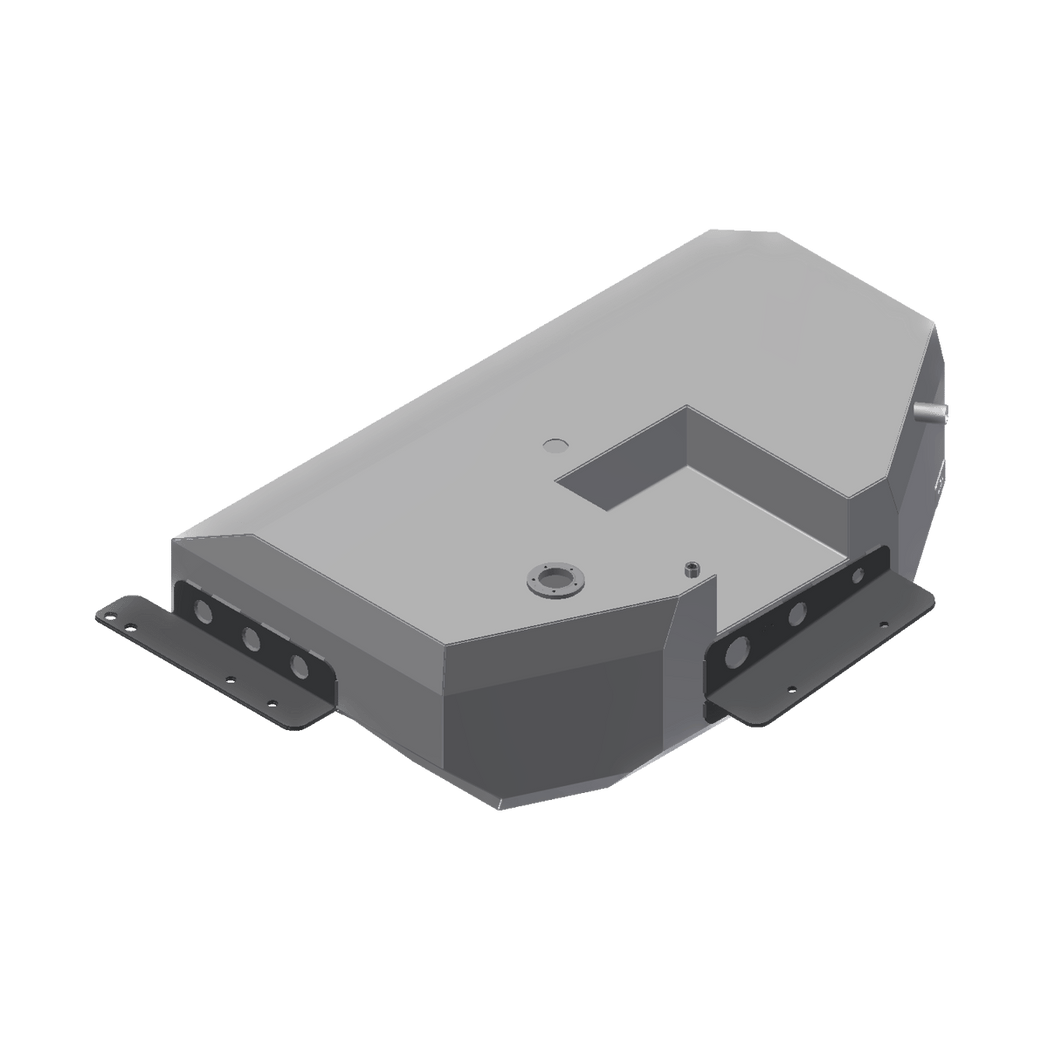

Crafted from rugged 2mm aluminized steel, our 24-gallon auxiliary tank is meticulously designed to harmoniously integrate with the Lexus GX470 & Toyota 4th Gen 4Runner (2003-2009), delivering enhanced fuel capacity for extensive adventures. Elevate your long-distance travel capabilities with this dependable, tailor-made solution.
- Suits Lexus GX470 (all years) and 4th Gen 4Runner (all years 2003-2009), works without KDSS and without air suspension

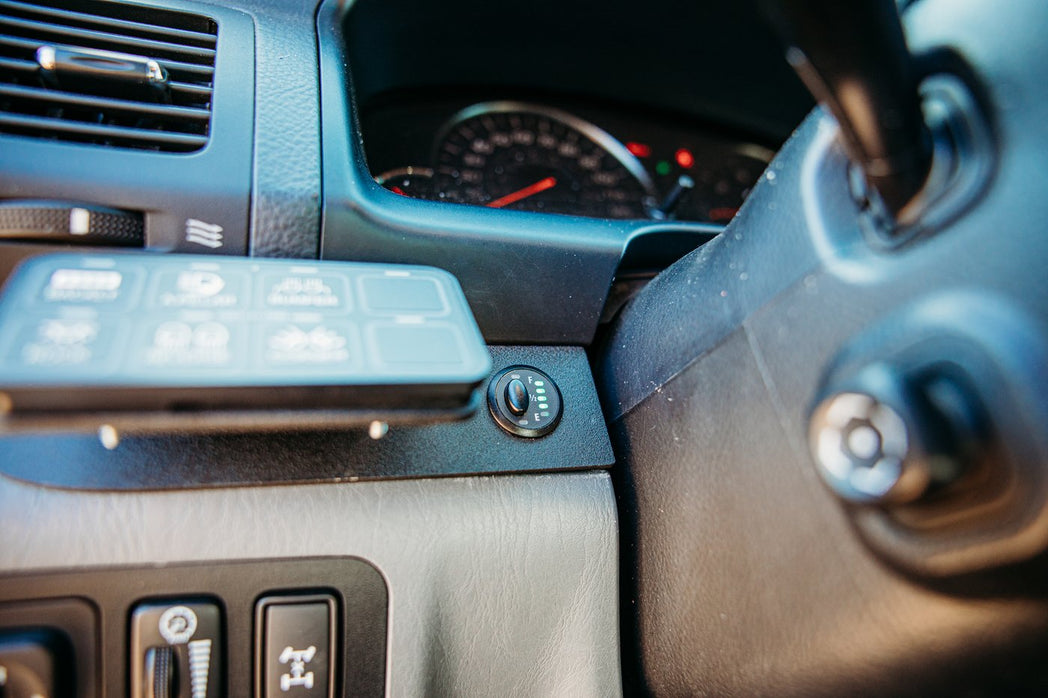

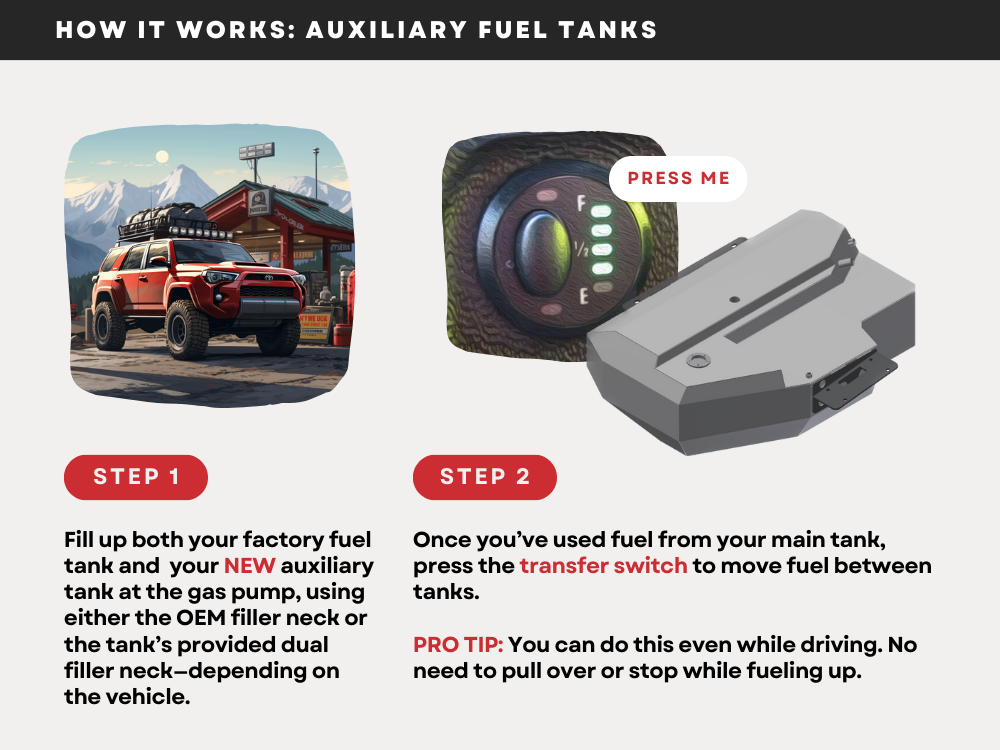

- This is an additional tank that goes behind the rear axle, it holds 24 gallons, and uses a transfer pump to fill your main tank when you hit a switch

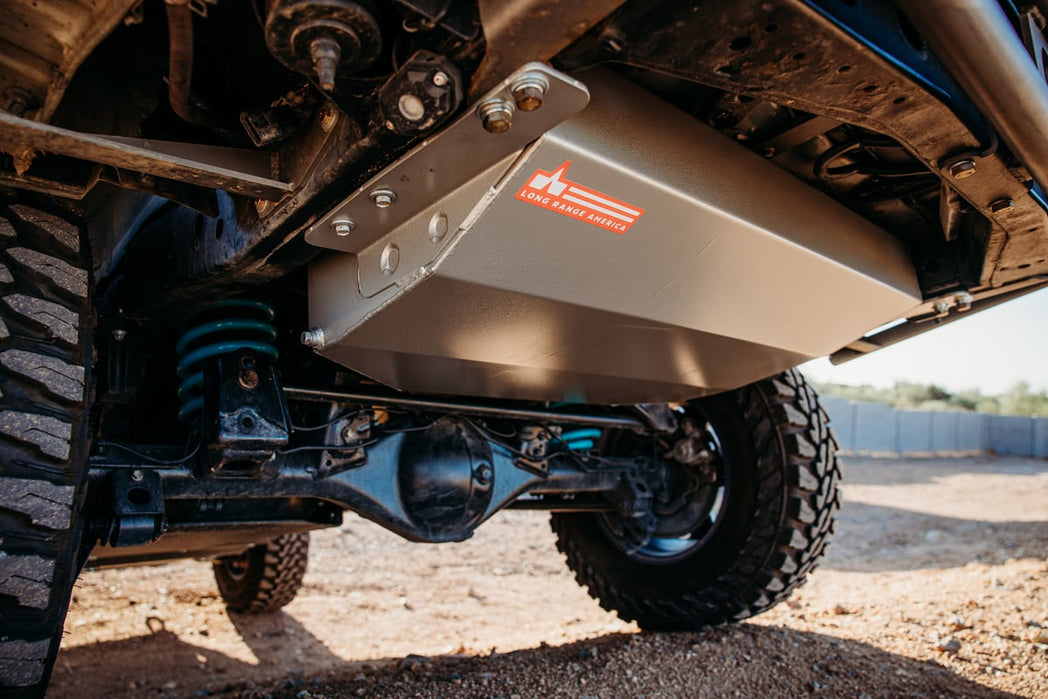

- 24 gallon capacity, fits in the void behind the rear axle and in front of the rear bumper, requires relocation of the stock spare tire
- 24 gallon size is a redesign of the 33 gallon, to maintain better clearance under the tank
- 24 gallons plus your original 23 gallon tank gives you a capacity of 47 gallons in total!!
- SPLIT FILL – Single fill point with no diversion – fuel flows into both tanks until both are full
- Tank uses a transfer pump to fill the main tank, 2L per minute pump rate
- No Exhaust modification required
- Spare tire must be relocated
-
When Installing the tank, it is highly recommended that all charcoal canisters be replaced
-
Fuel Tanks are not Intended to be be topped off, this will void tank warranty.
- installation is intended to be performed by a certified mechanic
NOTE: This tank is not KDSS or Air Suspension compatible , Also please note the OEM hitch will not fit and a curt style hitch is needed. Does require relocation of stock spare.
