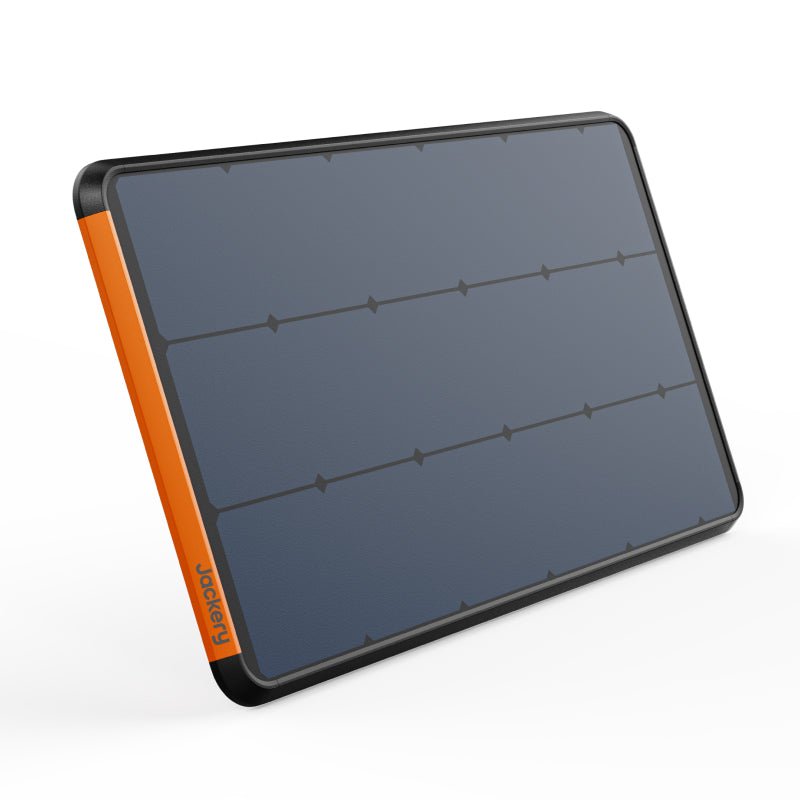

Clean solar charging made simple, the Jackery SolarSaga 100 Prime Solar Panel is a 100W foldable panel with an unshaded front and a bifacial rear that capture more sunlight. IP68 waterproof and easy to set up, it powers your Jackery Explorer station via DC8020 for RV trips, camping, and emergency backup.
Why choose the SolarSaga 100 Prime
Higher solar conversion
An unshaded front and bifacial rear turn more sunlight into stored power.
Easy setup and foldable
Fast to deploy and compact to store.
Weatherproof and certified

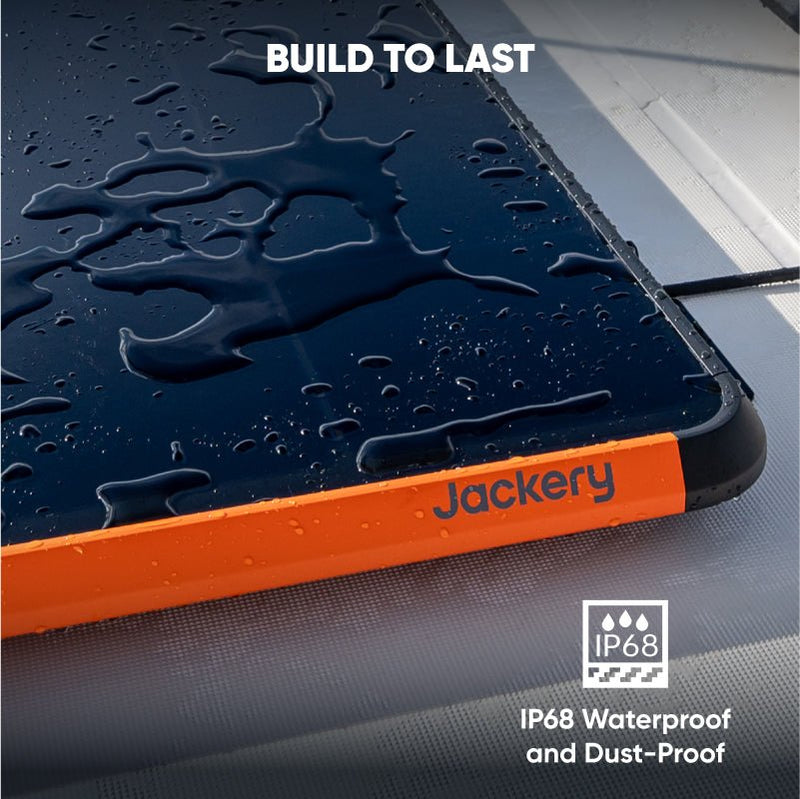

IP68 waterproof with international certification and a wide operating temperature range.
Technical specifications
General
| Rated power (Pmax) |
100W (up to 108W bifacial) |
| Weight |
13.23 lbs (6 kg) |
| Protection class (electric shock) |
Class II |
| Waterproof |
IP68 |
| Operating temperature range |
-40 to 85 C (-40 to 185 F) |
| Connector |
DC8020 |
| Unfolded dimensions |
38.8 x 21.7 x 1.1 in (986 x 552 x 29 mm) |
| Warranty |
3 plus 2 years |
Solar
| Maximum system voltage |
600V DC |
| Maximum reverse current |
15A |
| Bifaciality coefficient (back/front) |
Pmax greater than 65 percent, Voc greater than 97 percent, Isc greater than 65 percent |
| Voltage temperature coefficient |
-0.268 percent per C |
| Power temperature coefficient |
-0.29 percent per C |
| Open circuit voltage (Voc) |
22.7V |
| Short circuit current (Isc) |
5.53A |
| Power voltage (Vmp) |
18.7V |
| Power current (Imp) |
5.30A |
Frequently asked questions
Which stations is it compatible with?
It connects natively to newer Explorer stations via DC8020; older models (E1000, E550, E500, E300, E240, E160) need a DC8020-to-DC7909 adapter.
Can I connect more than one?
Yes, use the Jackery Anderson Connector and Cable to link panels on supported stations.
Is it waterproof?
Yes, it is IP68 rated against dust and water, though it should not be submerged.
