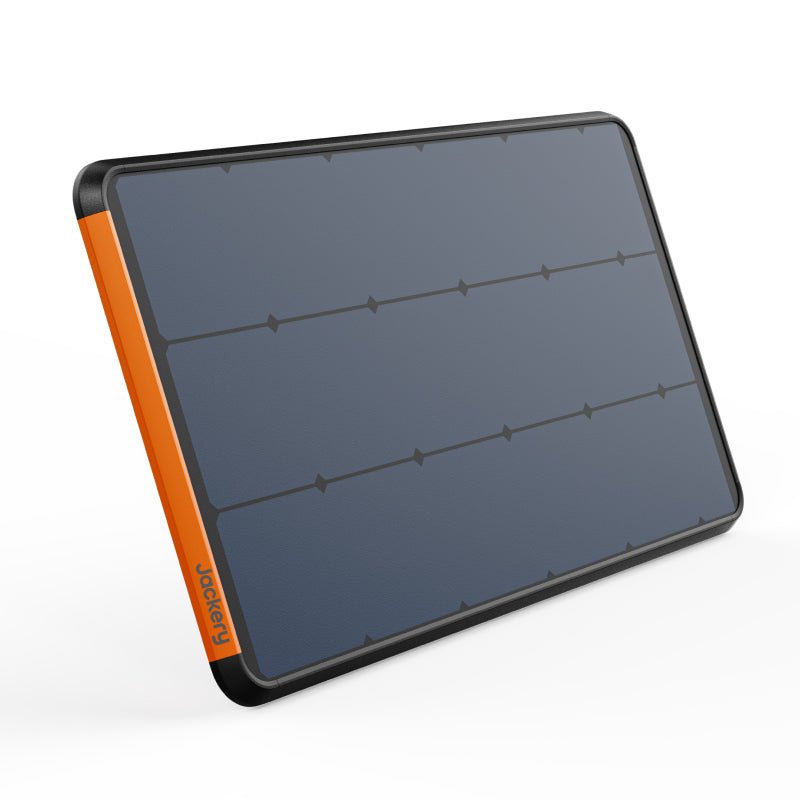

Easy-setup 100W solar, the Jackery SolarSaga 100 Prime Solar Panel is a foldable, IP68 waterproof panel with an unshaded front that captures more sunlight and a bifacial rear for added output. Built for RVs, camping, and emergency power, it connects to Jackery Explorer stations via DC8020 for clean solar charging.
Why choose the SolarSaga 100 Prime
High solar capture
An unshaded front design plus a bifacial rear convert more sunlight into usable power.
Easy setup and foldable
Sets up quickly for RVs, campsites, and backup, then folds flat for storage.
Weatherproof and certified
IP68 waterproof with international certification and a wide operating temperature range.
Technical specifications
General
| Rated power (Pmax) |
100W (up to 108W bifacial) |
| Weight |
13.23 lbs (6 kg) |
| Protection class (electric shock) |
Class II |
| Waterproof |
IP68 |
| Operating temperature range |
-40 to 85 C (-40 to 185 F) |
| Connector |
DC8020 |
| Unfolded dimensions |
38.8 x 21.7 x 1.1 in (986 x 552 x 29 mm) |
| Warranty |
3 plus 2 years |
Solar
| Maximum system voltage |
600V DC |
| Maximum reverse current |
15A |
| Bifaciality coefficient (back/front) |
Pmax greater than 65 percent, Voc greater than 97 percent, Isc greater than 65 percent |
| Voltage temperature coefficient |
-0.268 percent per C |
| Power temperature coefficient |
-0.29 percent per C |
| Open circuit voltage (Voc) |
22.7V |
| Short circuit current (Isc) |
5.53A |
| Power voltage (Vmp) |
18.7V |
| Power current (Imp) |
5.30A |
Frequently asked questions
Which stations is it compatible with?
It connects natively to newer Explorer stations via DC8020; older models (E1000, E550, E500, E300, E240, E160) need a DC8020-to-DC7909 adapter.
Can I connect more than one?
Yes, use the Jackery Anderson Connector and Cable to link panels on supported stations.
Is it waterproof?
Yes, it is IP68 rated against dust and water, though it should not be submerged.
