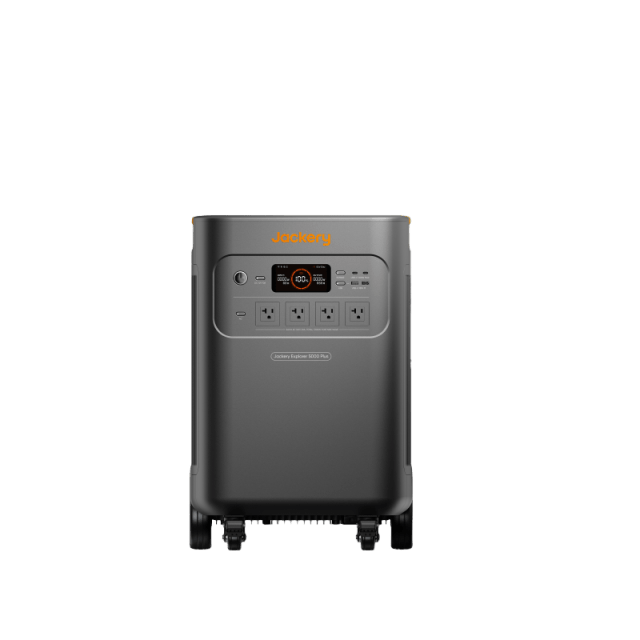

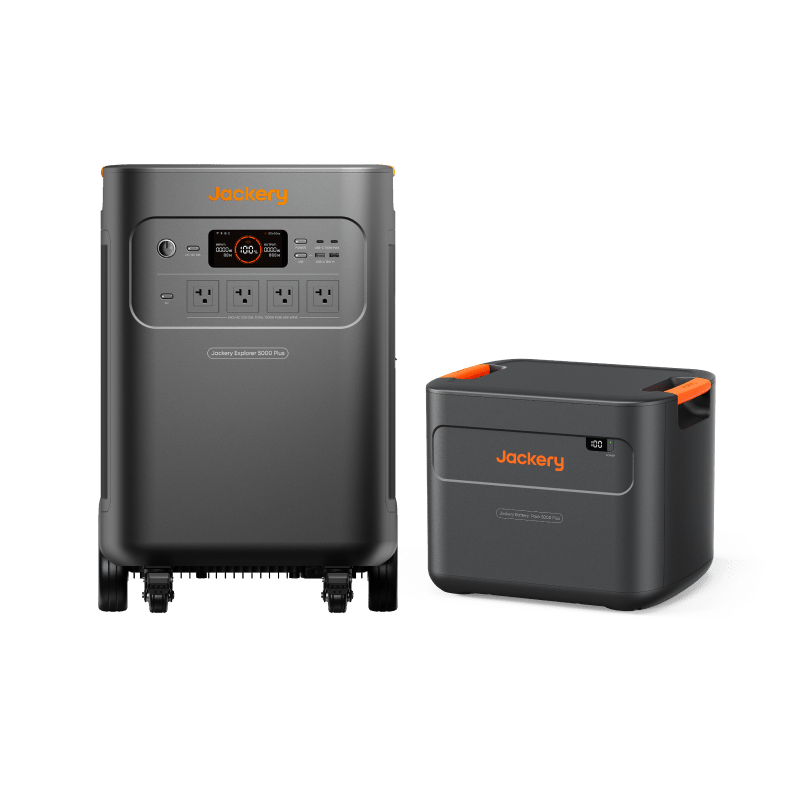

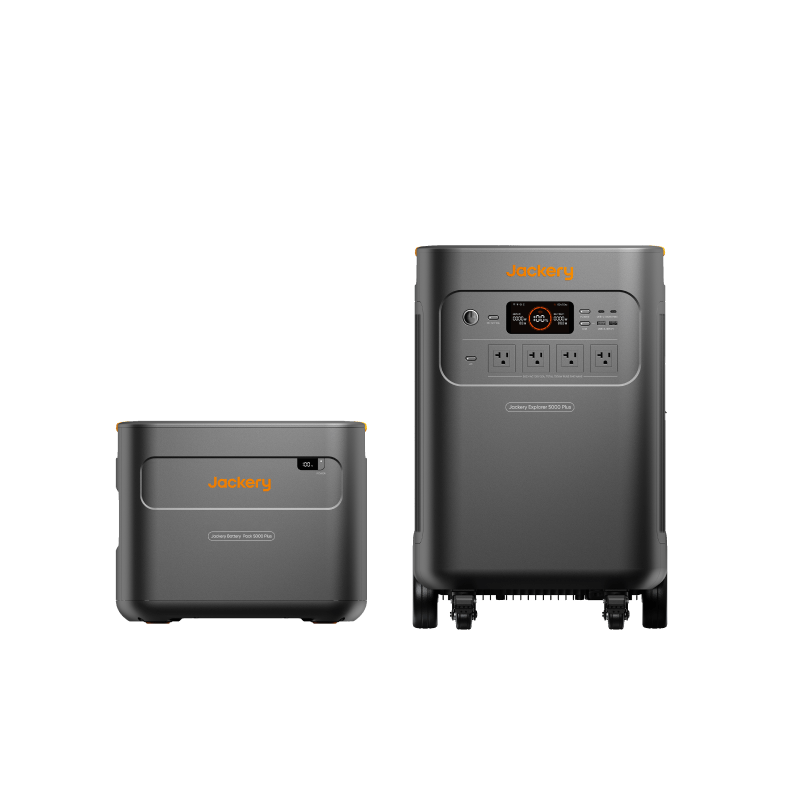

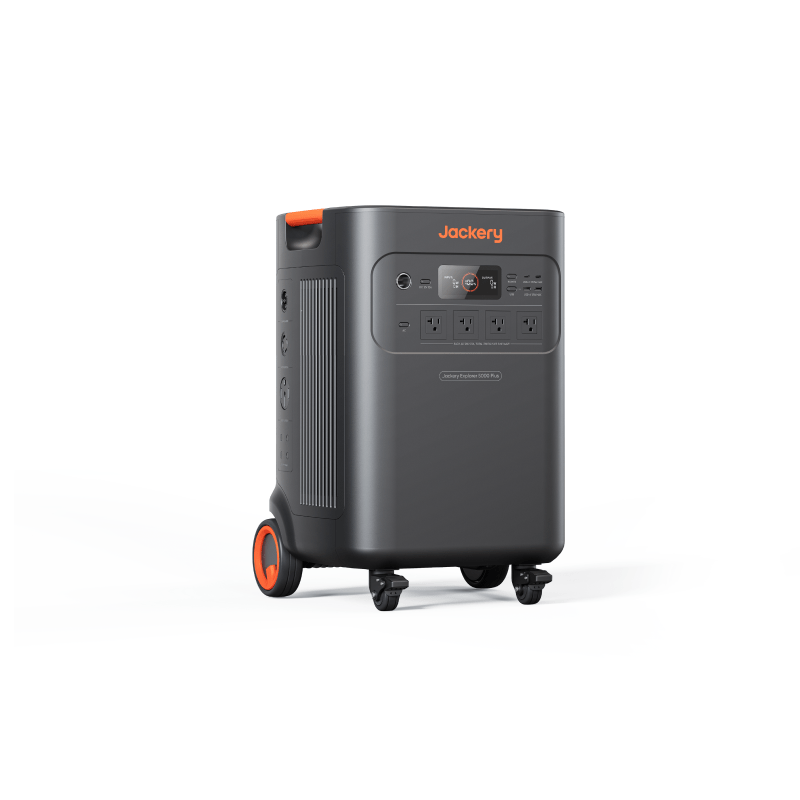

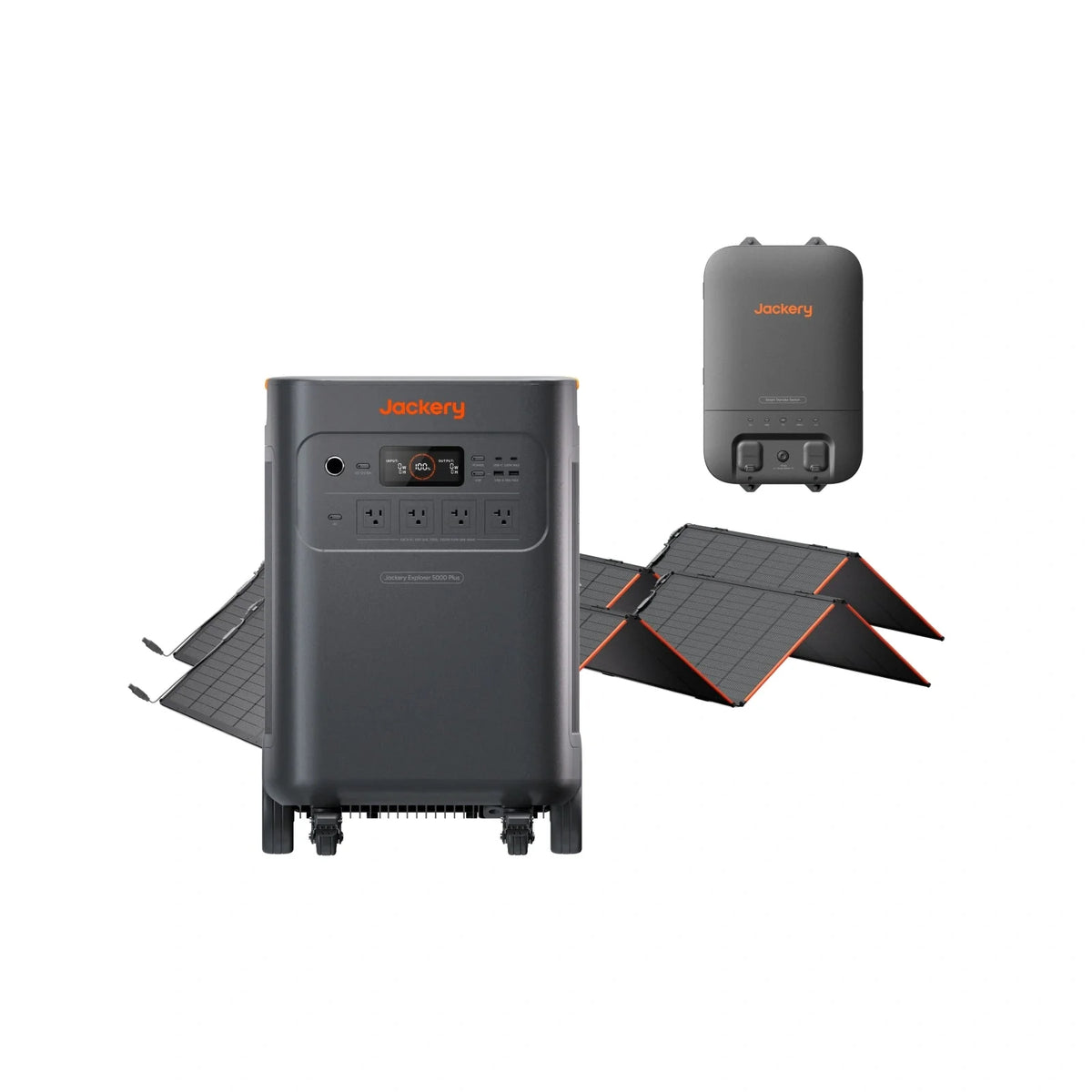

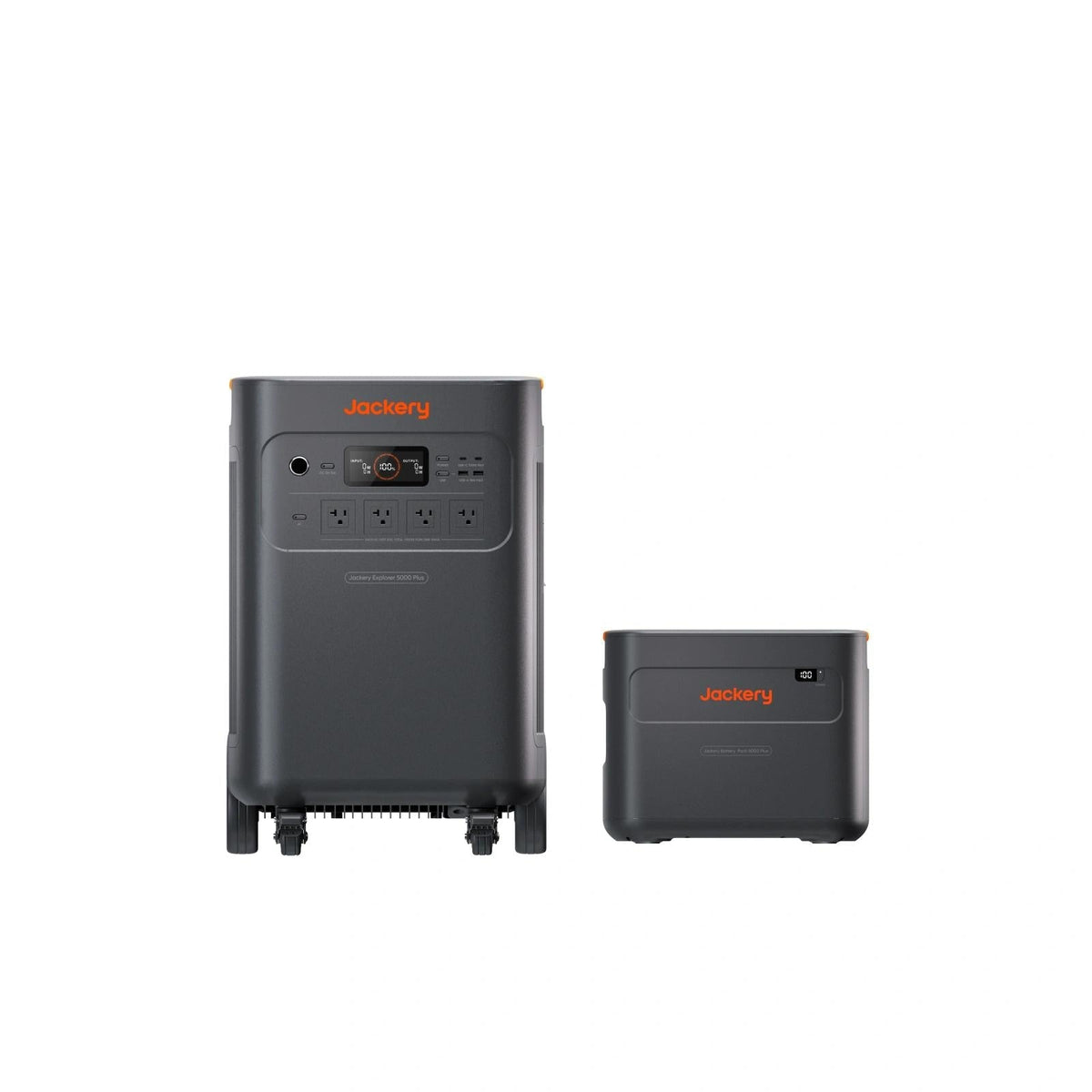

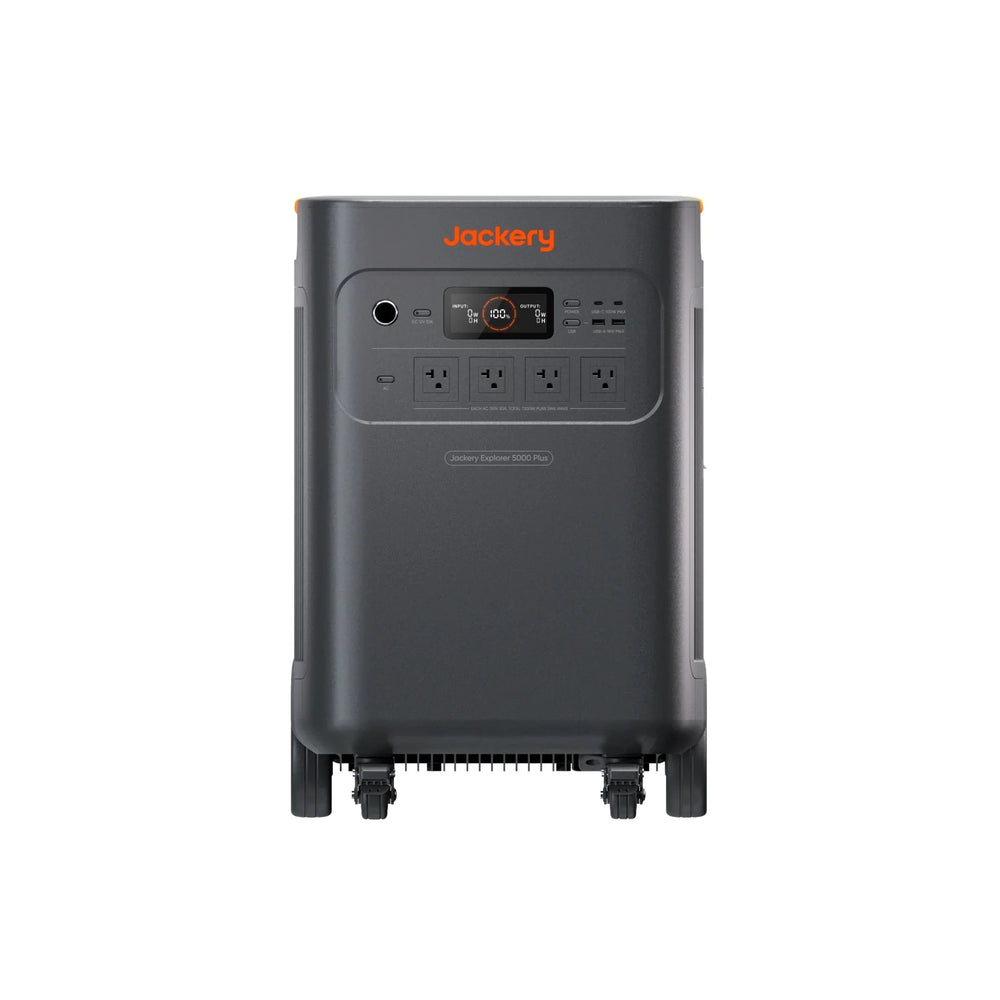

Expandable home backup that scales with you, the Jackery Explorer 5000 Plus (10kWh) pairs the Explorer 5000 Plus station with a Battery Pack 5000 Plus for 10,080Wh of total LiFePO4 capacity. It delivers 7200W at 120V and 240V (14400W surge) and expands further toward roughly 60kWh.
Why choose the 5000 Plus 10kWh
10,080Wh of capacity
Runs essential circuits and heavy appliances through extended outages.
7200W, 120V and 240V
Handles high-demand 240V loads with a 14400W surge.

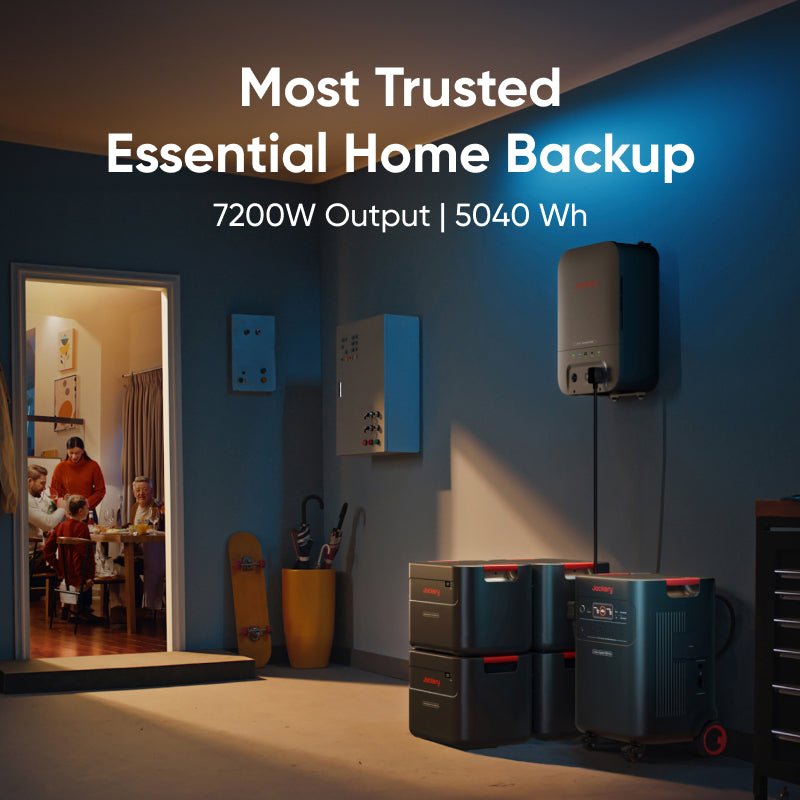

Keeps expanding
Add Battery Pack 5000 Plus units to scale total capacity as your needs grow.
Technical specifications
General
| System capacity |
10,080Wh (2x 5040Wh), expandable |
| Cell chemistry |
LiFePO4 |
| Cycle life |

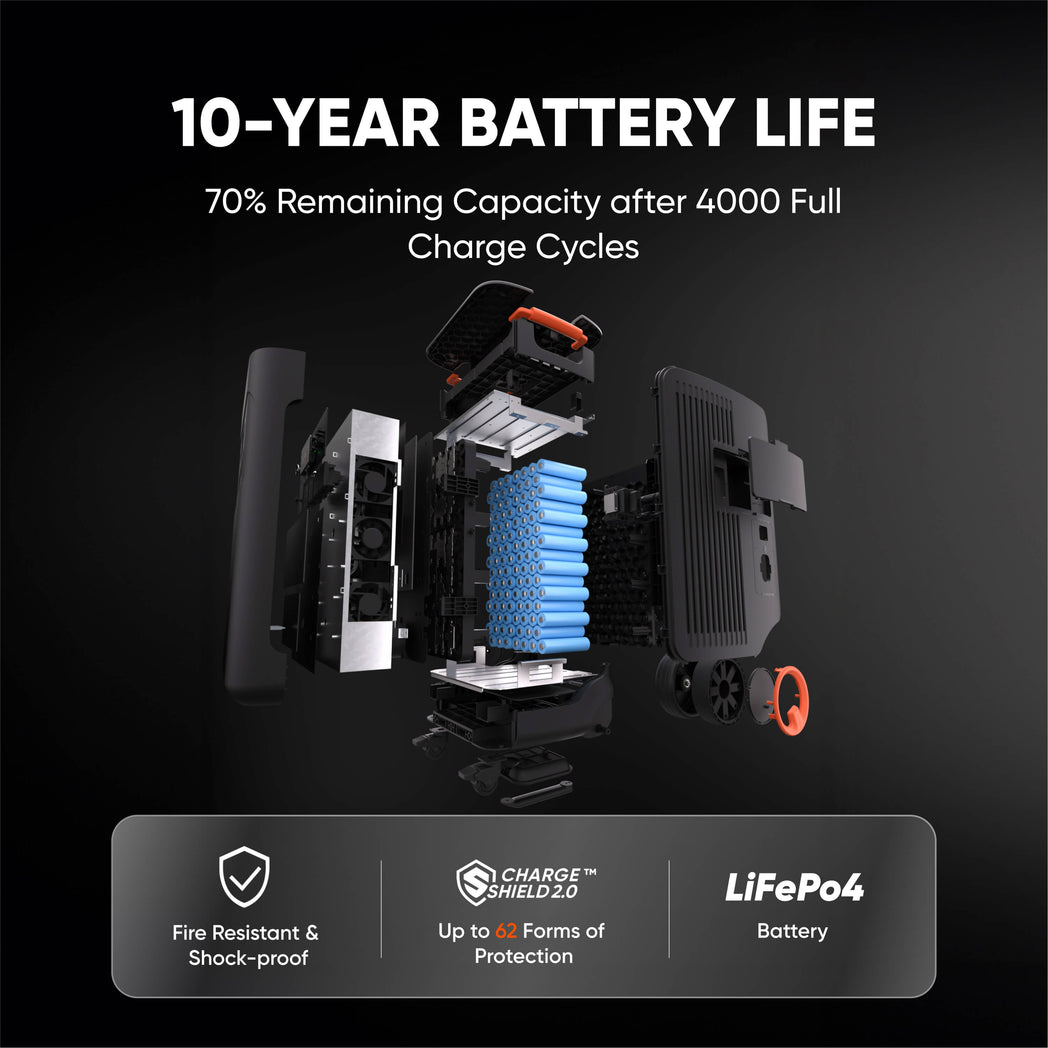

4,000 cycles to 70 percent plus capacity |
| Warranty |
5 years |
Output ports
| AC output (4x) |
120V, 20A, 3600W max |
| AC output (1x) |
NEMA L14-30R / 14-50, 120/240V 60Hz, 30A, 7200W max |
| AC total output |
7200W max, 14400W surge |
| USB-C output |
2x 100W max |
| USB-A output |
2x 18W max |
| Cigarette lighter port |
12V 10A |
Input ports and charging
| AC input |
120V 60Hz, 15A max |
| Bypass mode |
120V 12A max; 240V 16.7A max |
| DC input (high PV) |
135 to 450V, 15A max |
| Solar |
Approx. 6.5 to 8.5 hours |
| UPS |
Online UPS 0ms, backup UPS under 20ms |
Frequently asked questions
What is the difference from the Double Kit?
Both provide about 10,080Wh; naming varies by configuration. Each expands with additional Battery Pack 5000 Plus units.

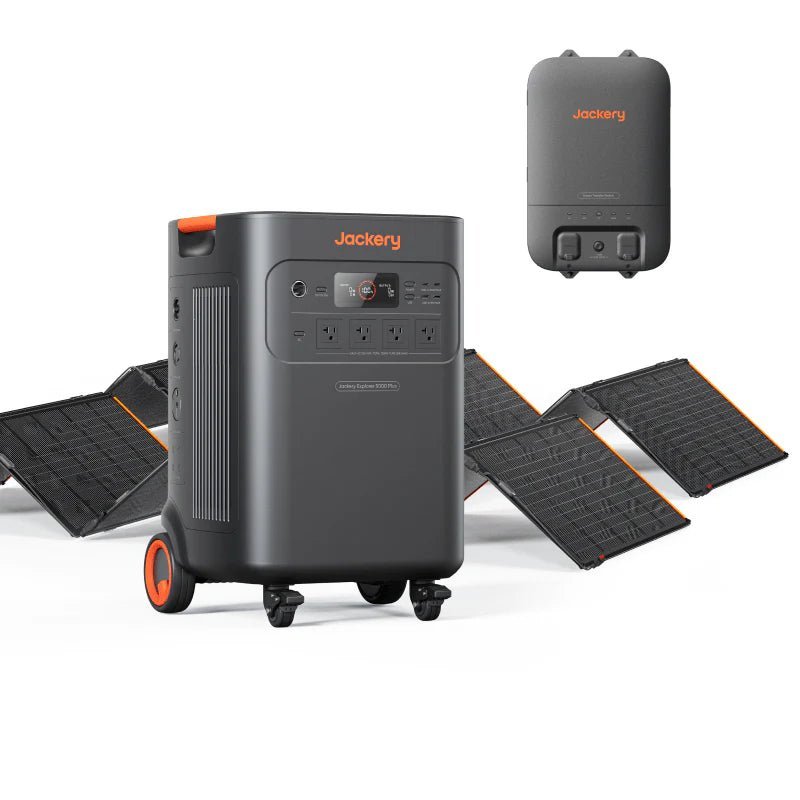

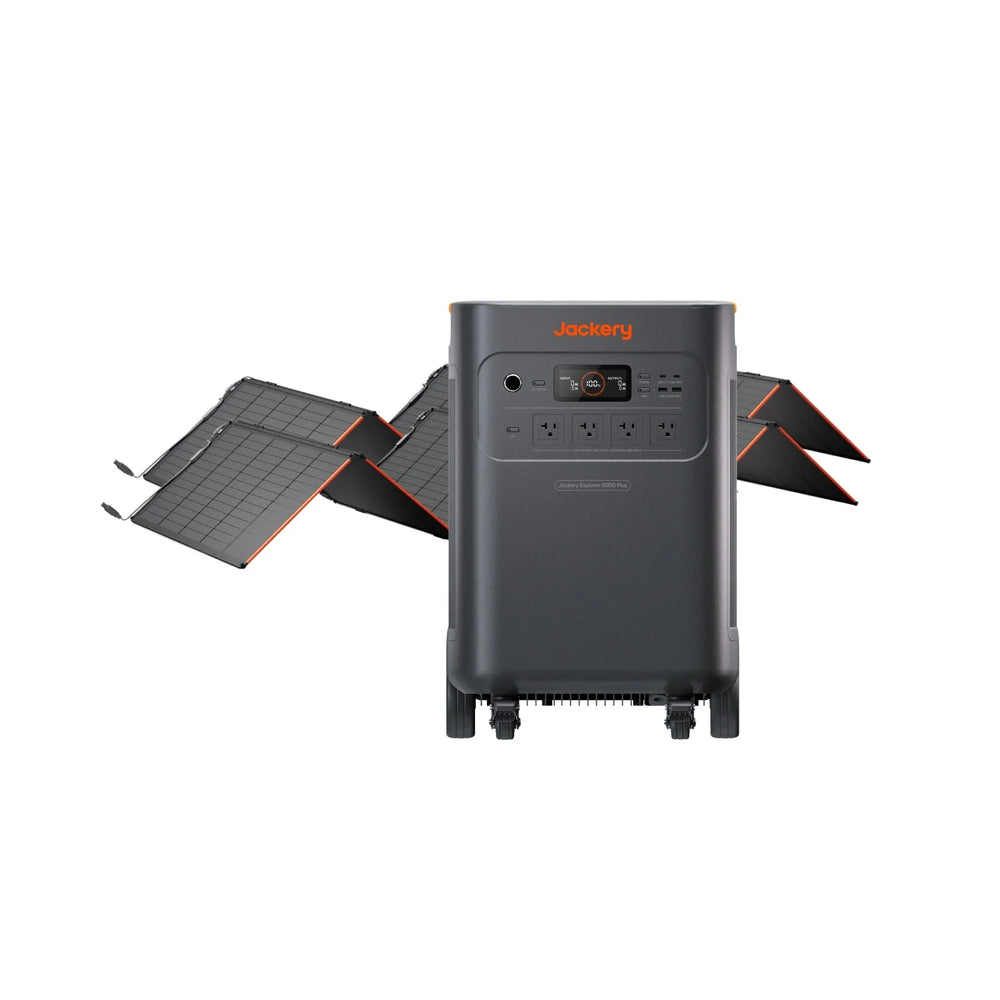

Can I recharge with solar?
Yes, it accepts high-voltage PV input for SolarSaga panels.
