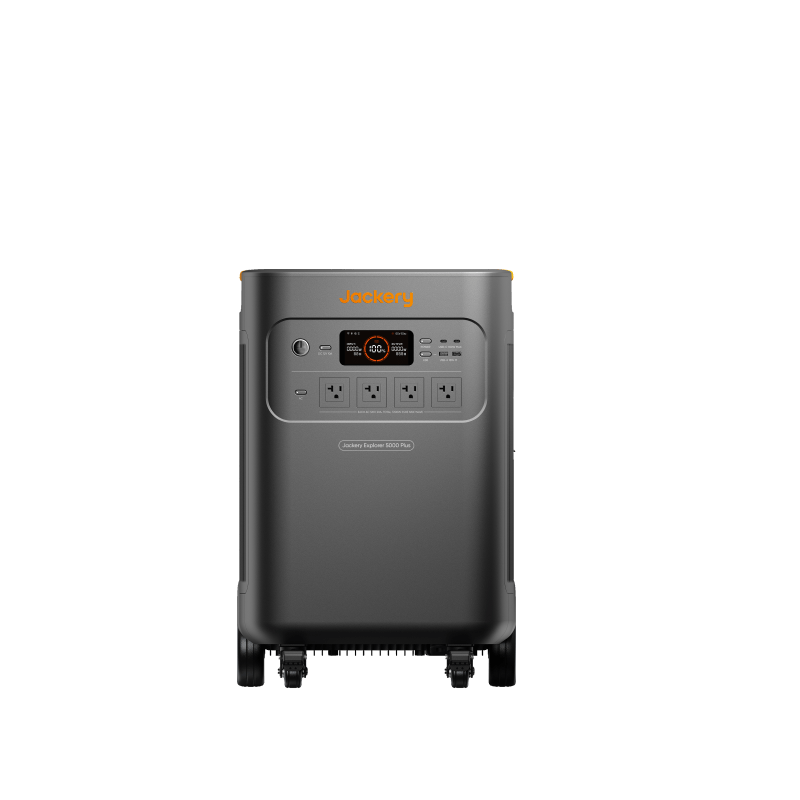

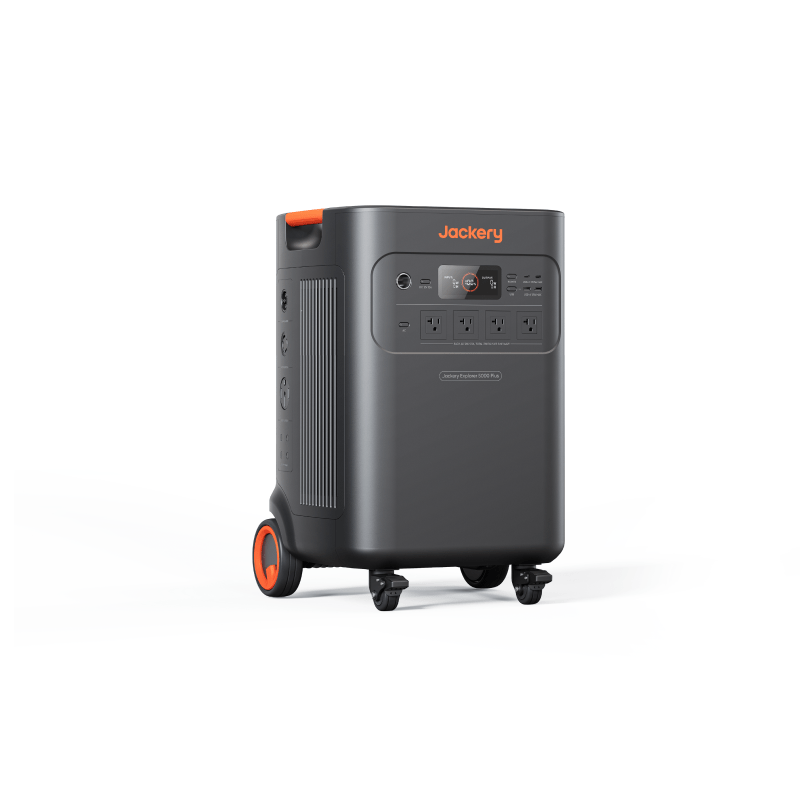

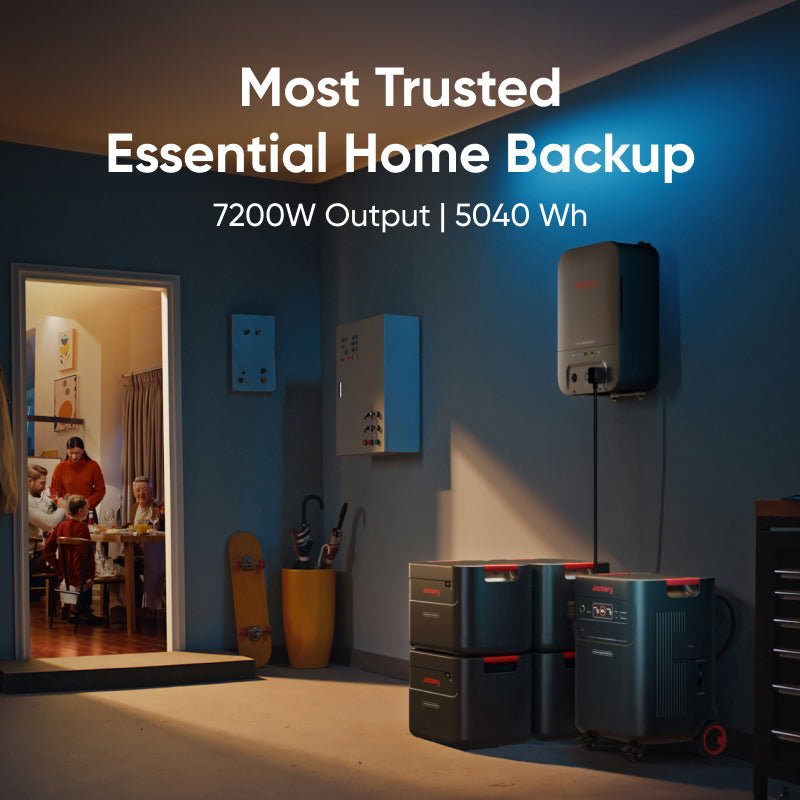

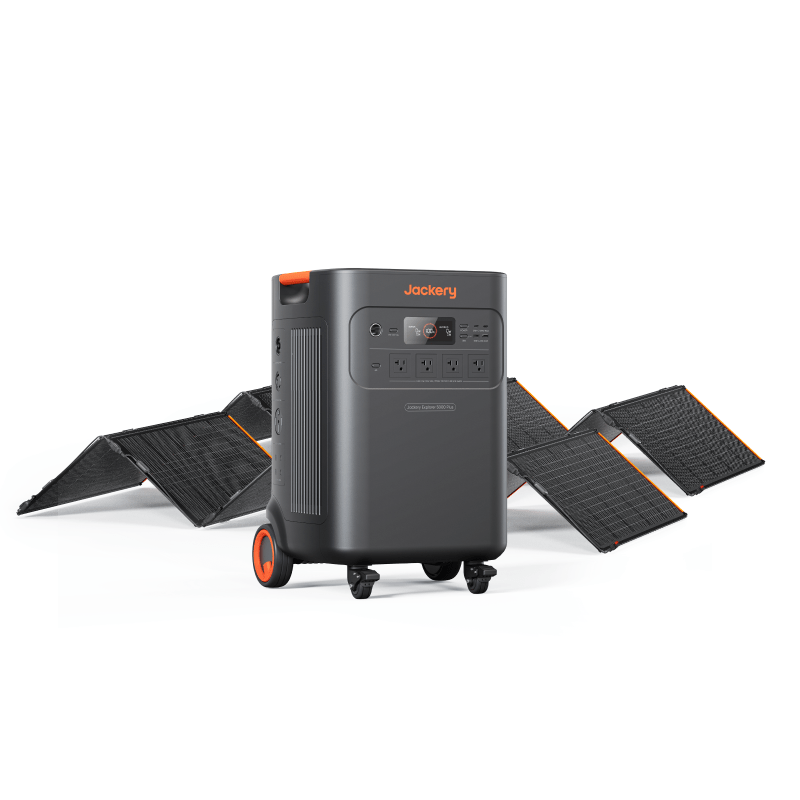

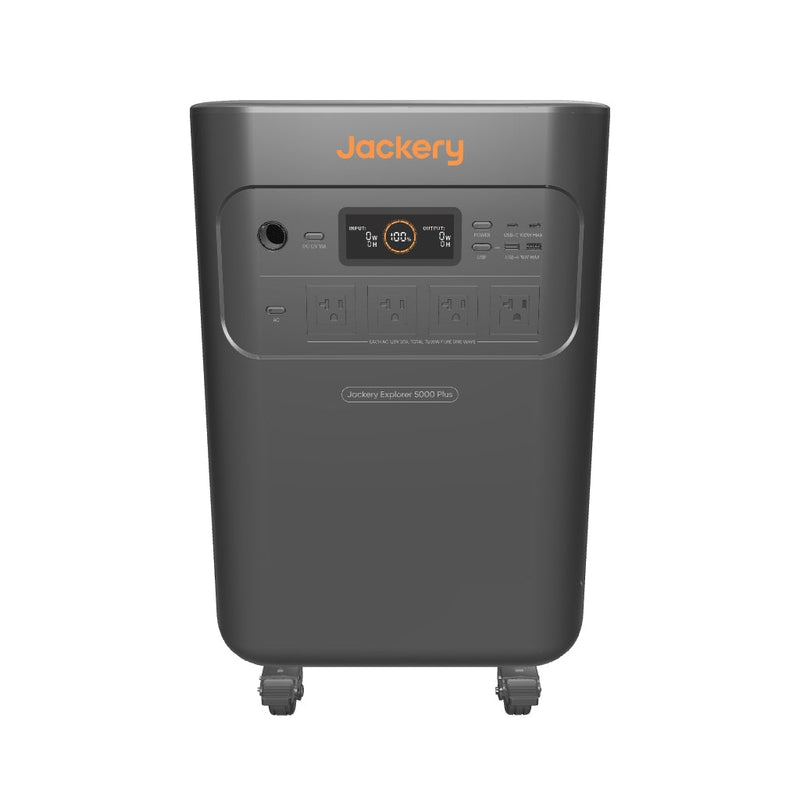

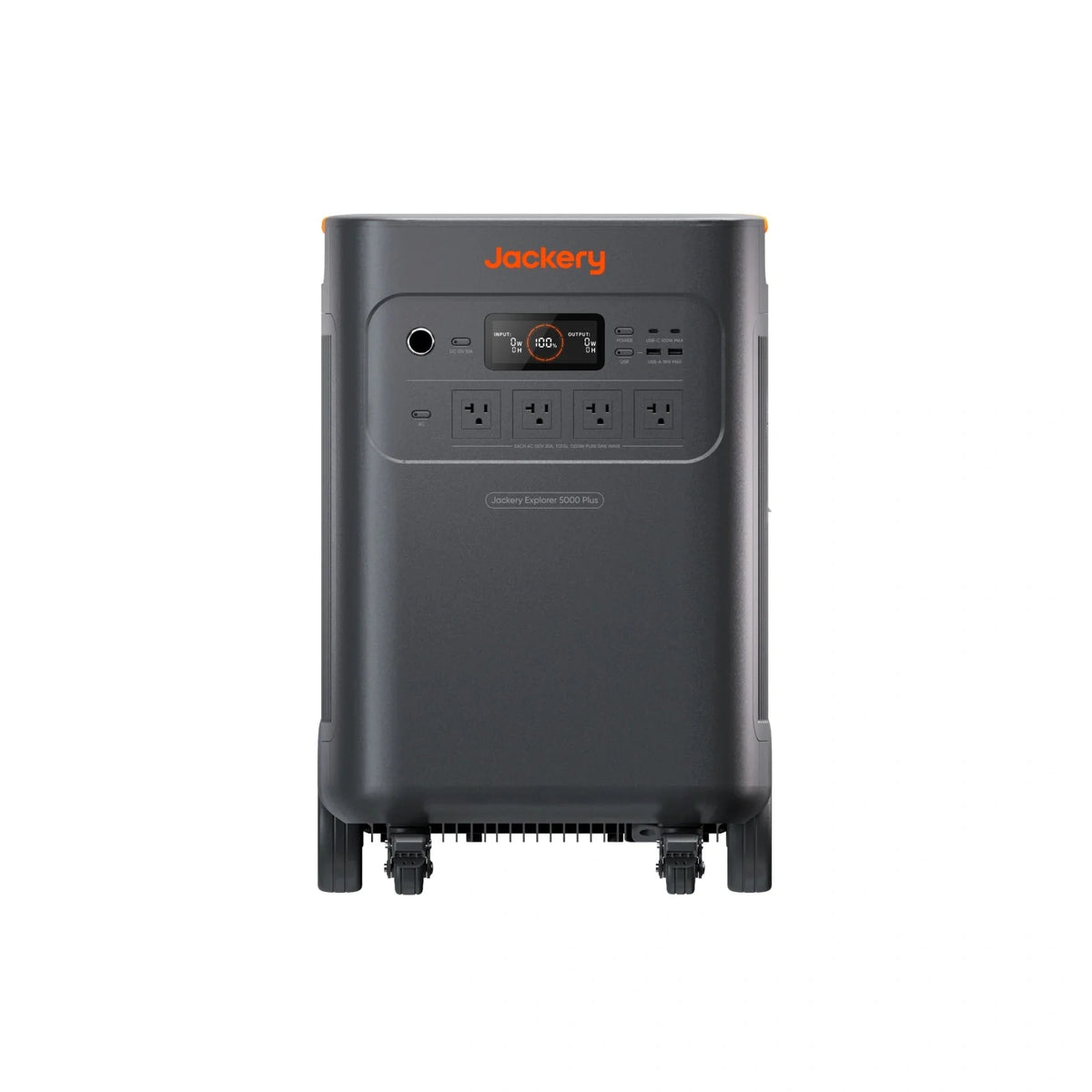

Whole-home backup in a single expandable unit, the Jackery Explorer 5000 Plus Portable Power Station delivers 7200W at 120V and 240V from a 5040Wh LiFePO4 battery. With 0ms online UPS switching and expansion toward roughly 60kWh, it runs heavy appliances and essential circuits through extended outages.
Why choose the Explorer 5000 Plus
7200W, 120V and 240V
Handles high-demand appliances and multiple circuits with a 14400W surge.

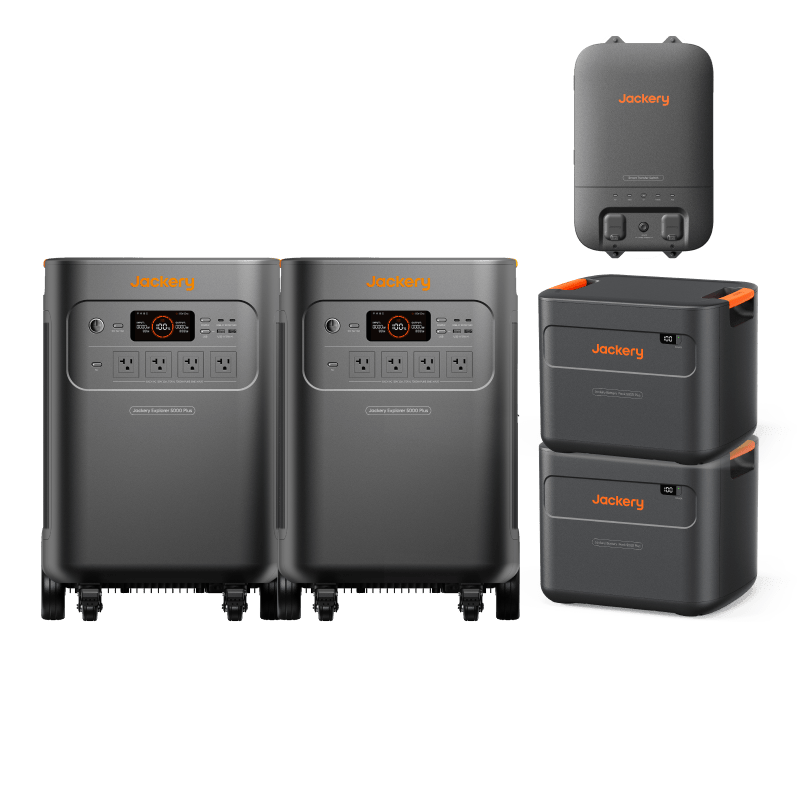

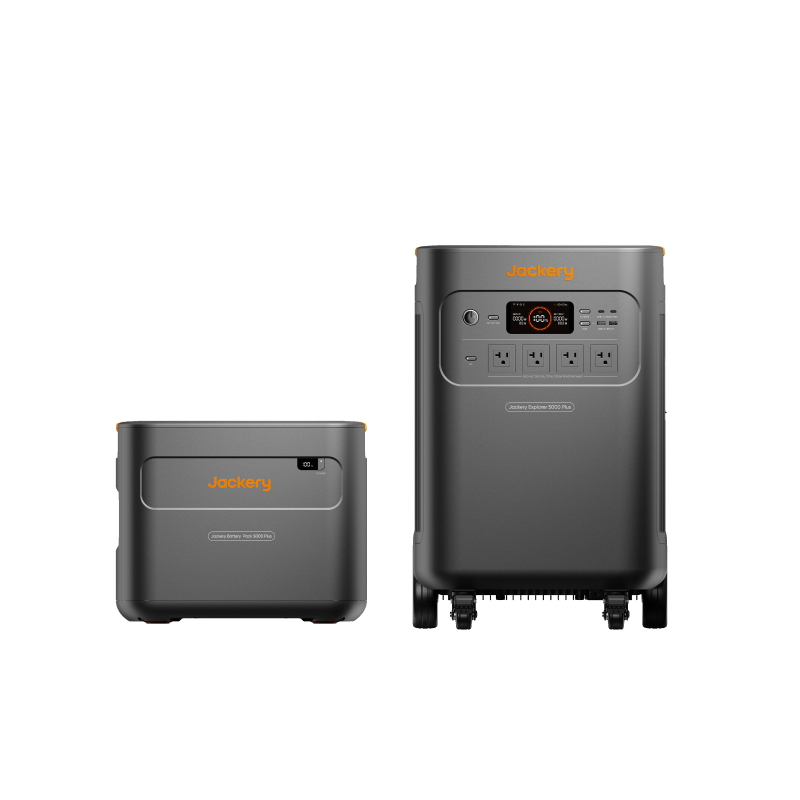

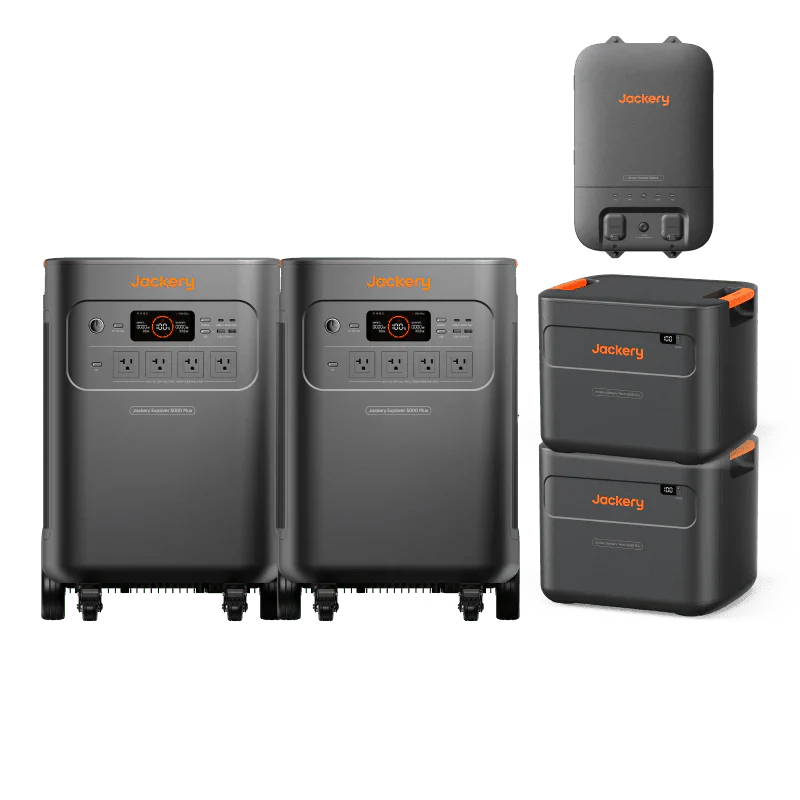

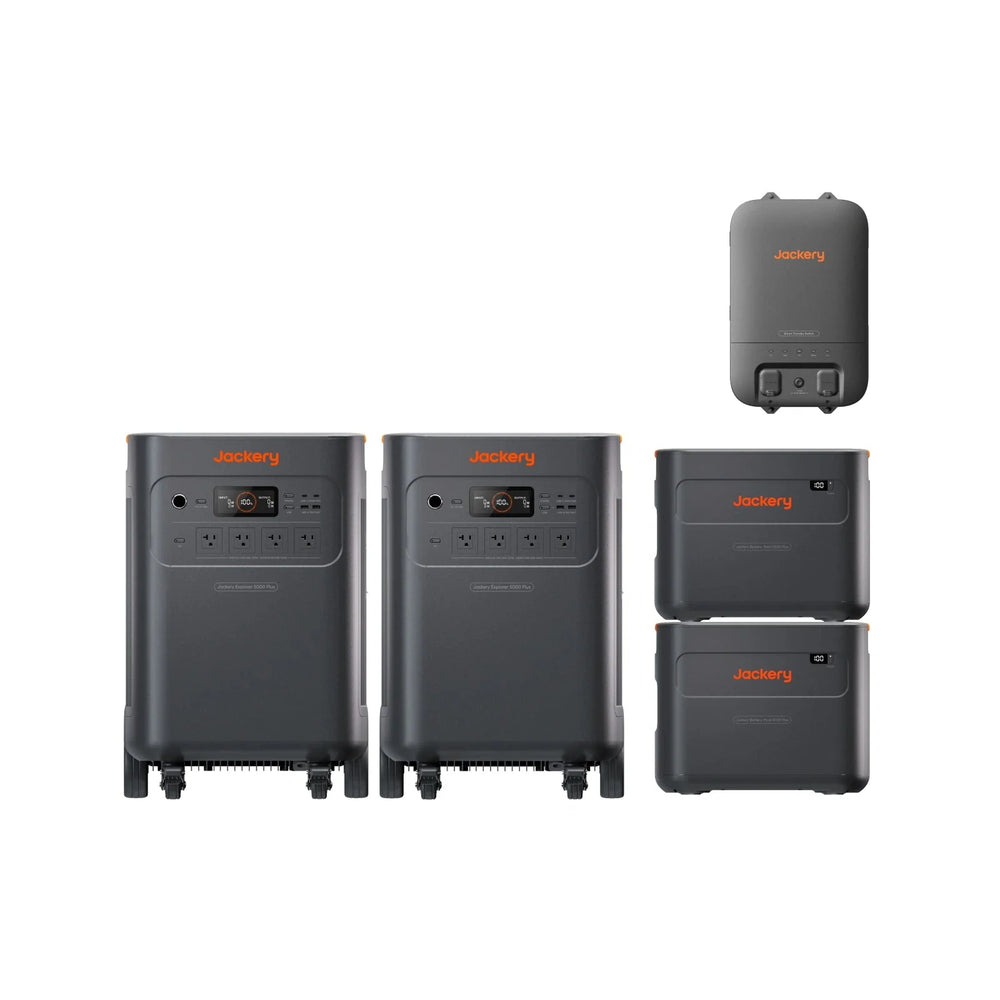

Expandable to 60kWh

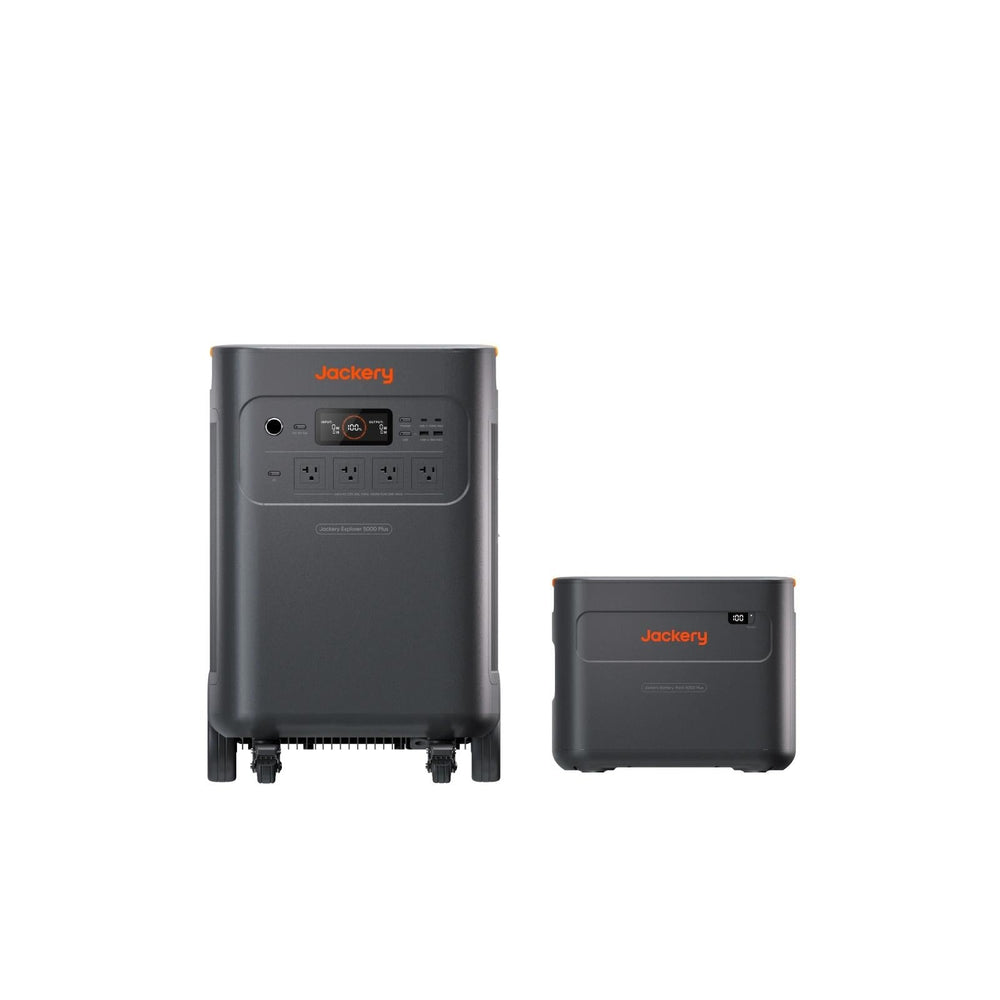

Add Battery Pack 5000 Plus units for multi-day, whole-home backup.
Online UPS protection
0ms online UPS keeps sensitive electronics running through an outage.
Technical specifications
General
| Battery capacity |
5040Wh (45Ah / 112V DC), expandable |
| Cell chemistry |
LiFePO4 |

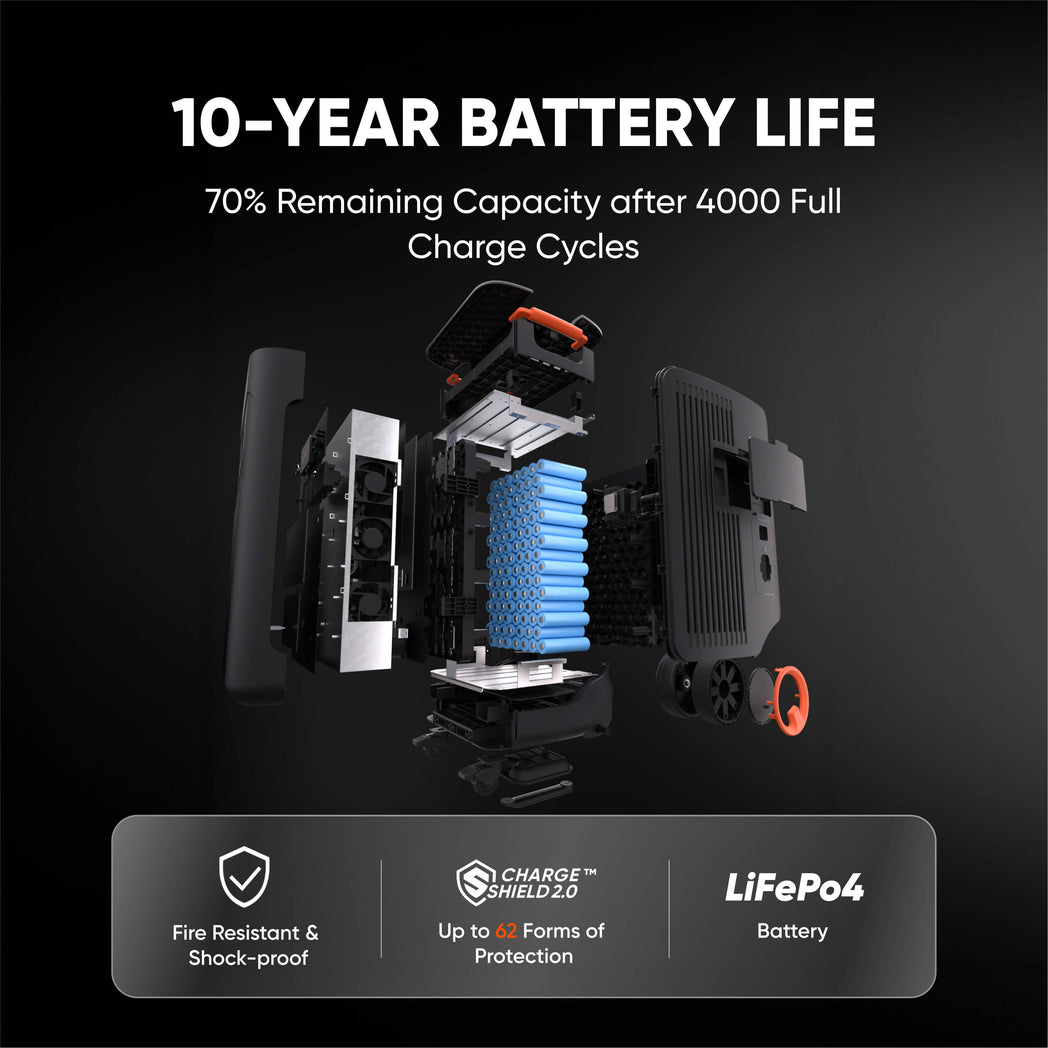

| Cycle life |
4,000 cycles to 70 percent plus capacity |
| Weight |
Approx. 134.5 lbs (61 kg) |
| Dimensions |
16.5 x 15.5 x 25 in (41.8 x 39.5 x 63.5 cm) |
| Warranty |
5 years |
Output ports
| AC output (4x) |
120V, 20A, 3600W max |
| AC output (1x) |
NEMA L14-30R / 14-50, 120/240V 60Hz, 30A, 7200W max |
| AC total output |
7200W max, 14400W surge |
| USB-C output |
2x 100W max |
| USB-A output |
2x 18W max |
| Cigarette lighter port |
12V 10A |
Input ports and charging
| AC input |
120V 60Hz, 15A max |

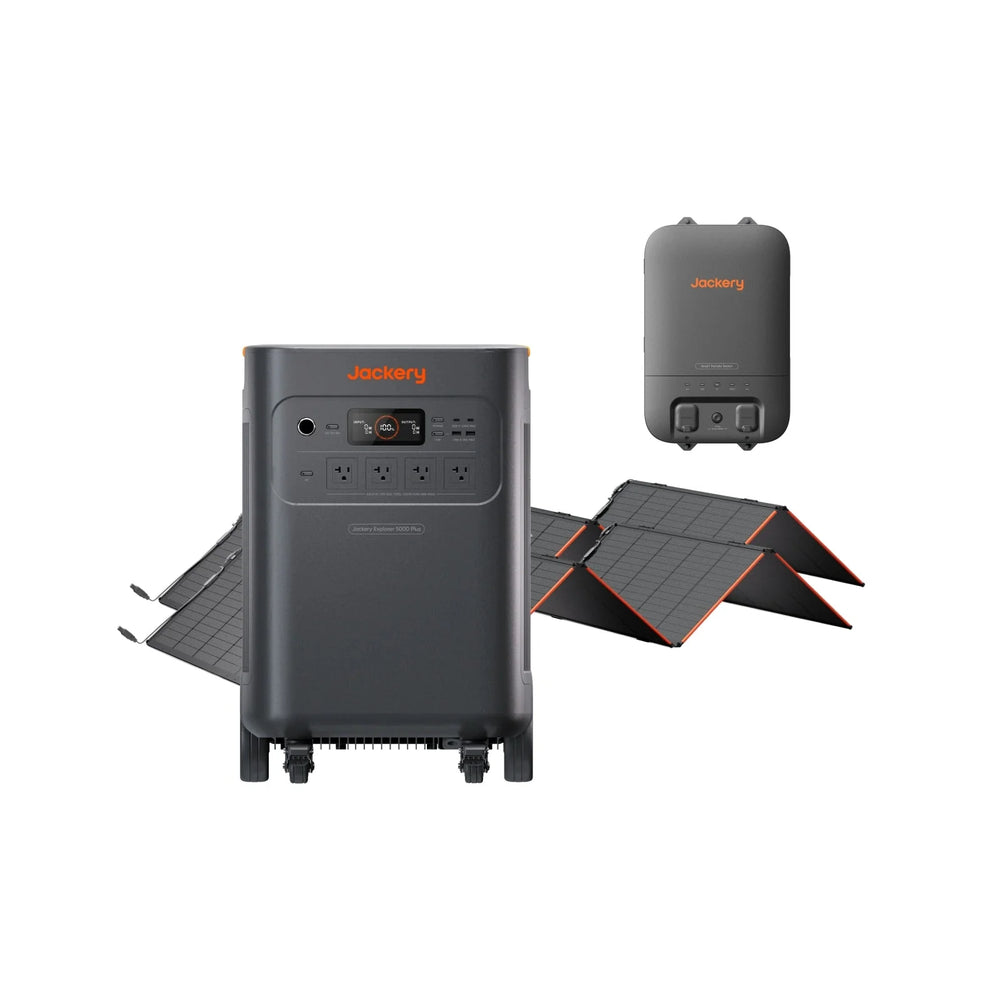

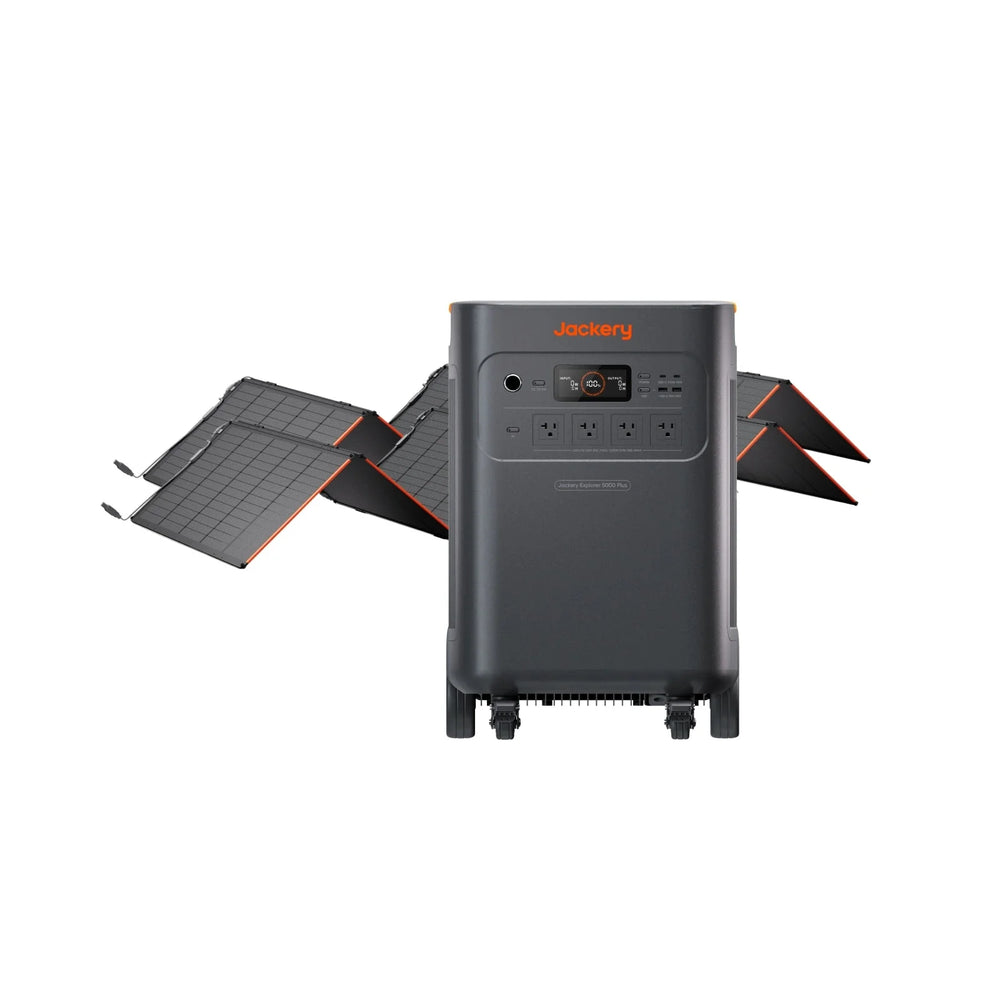

| DC input (high PV) |
135 to 450V, 15A max |
| AC adapter charge |
Approx. 3.5 hours |
| UPS |
Online UPS 0ms, backup UPS under 20ms |
Frequently asked questions
Can it run 240V loads?

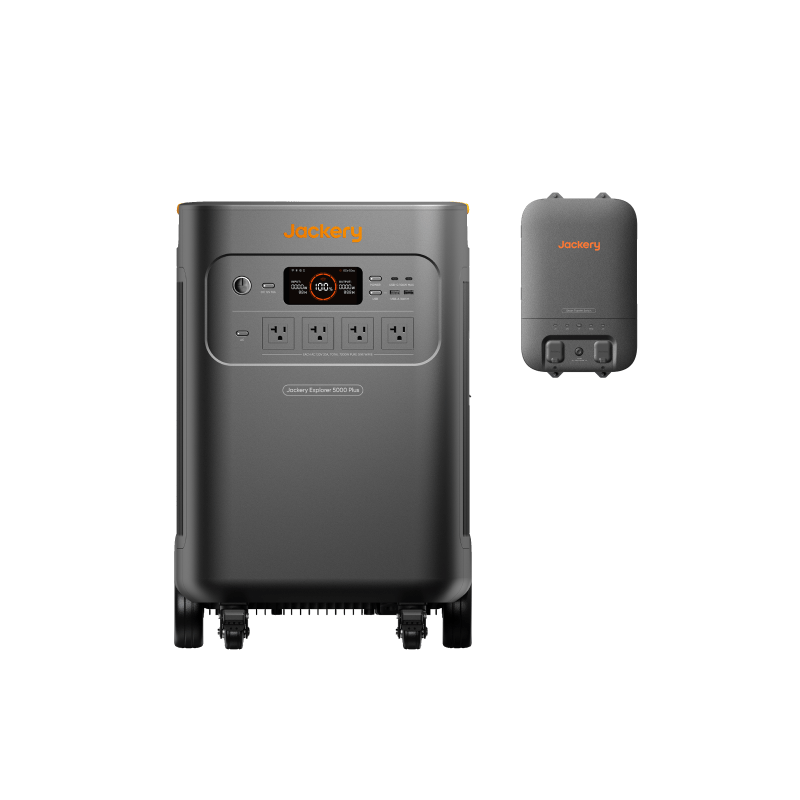

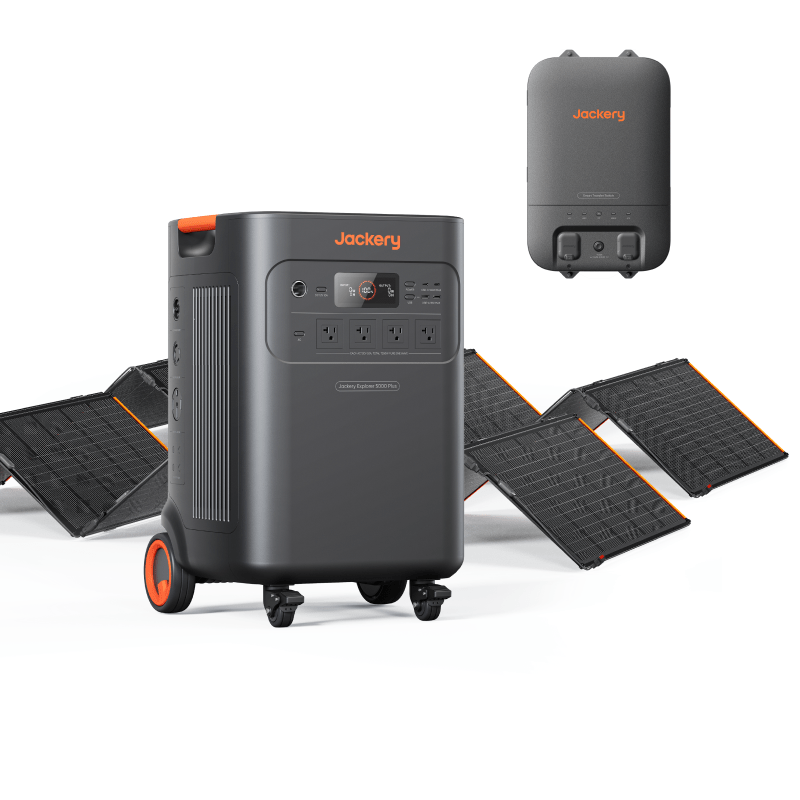

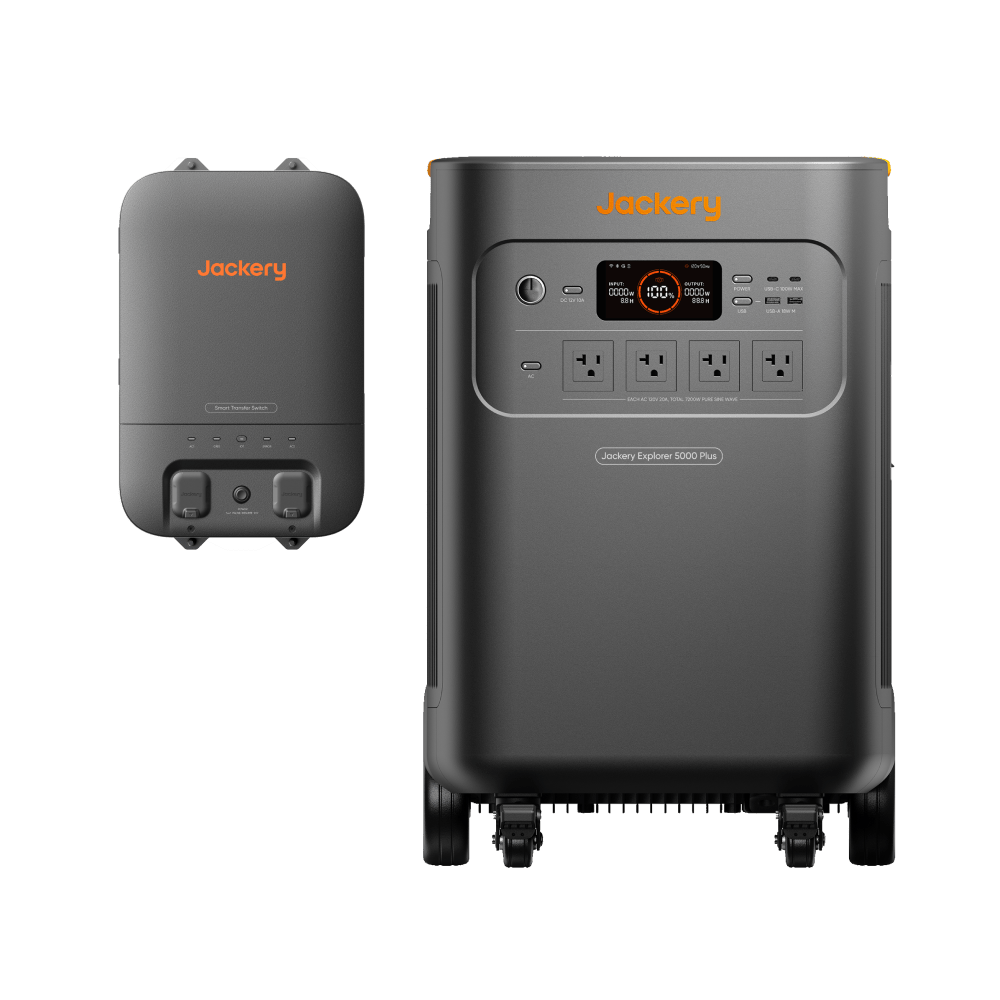

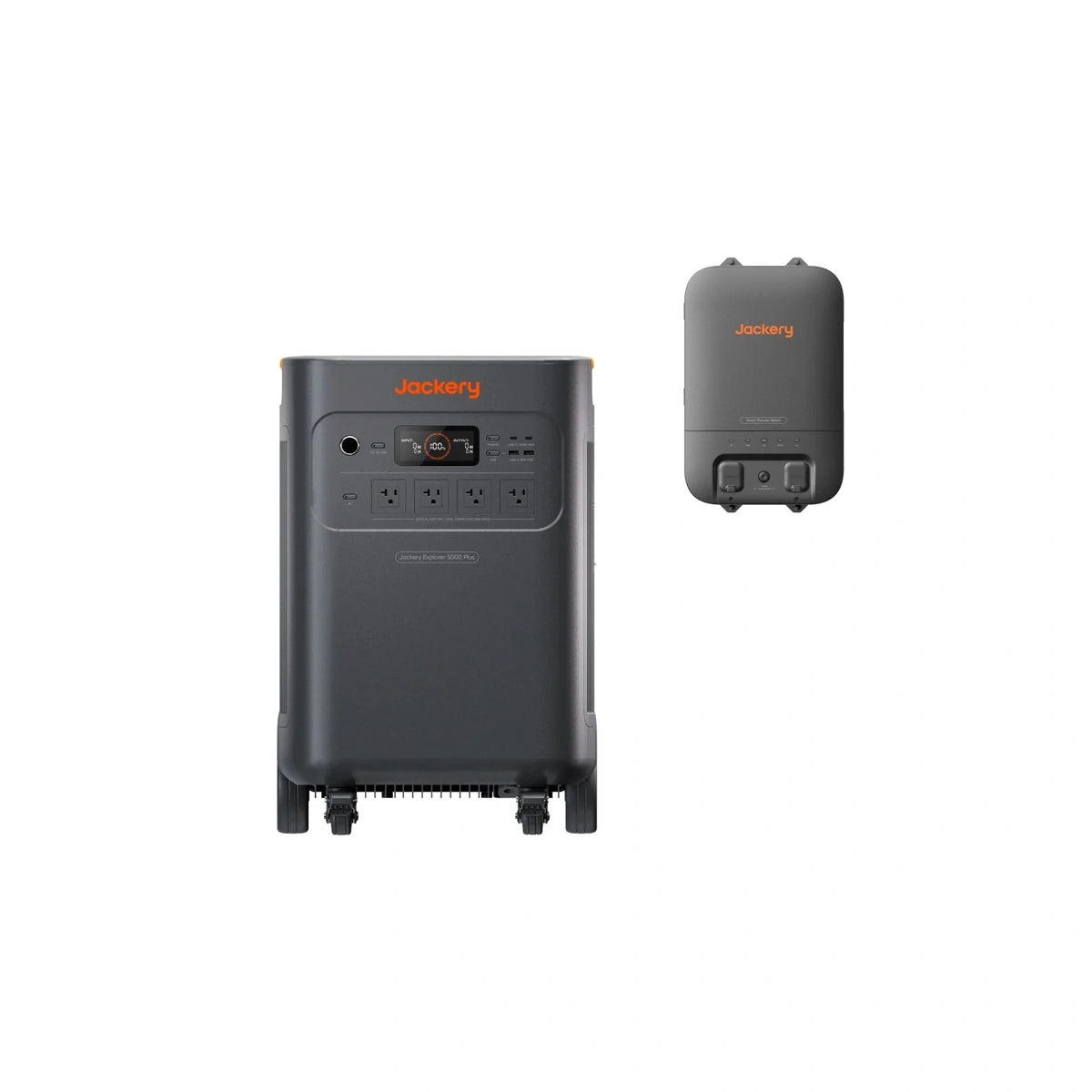

Yes, its NEMA L14-30 output provides 240V for high-demand appliances. Add a Smart Transfer Switch for home circuits.
How much can I expand it?
Add Battery Pack 5000 Plus units to reach roughly 60kWh total.
