Overview

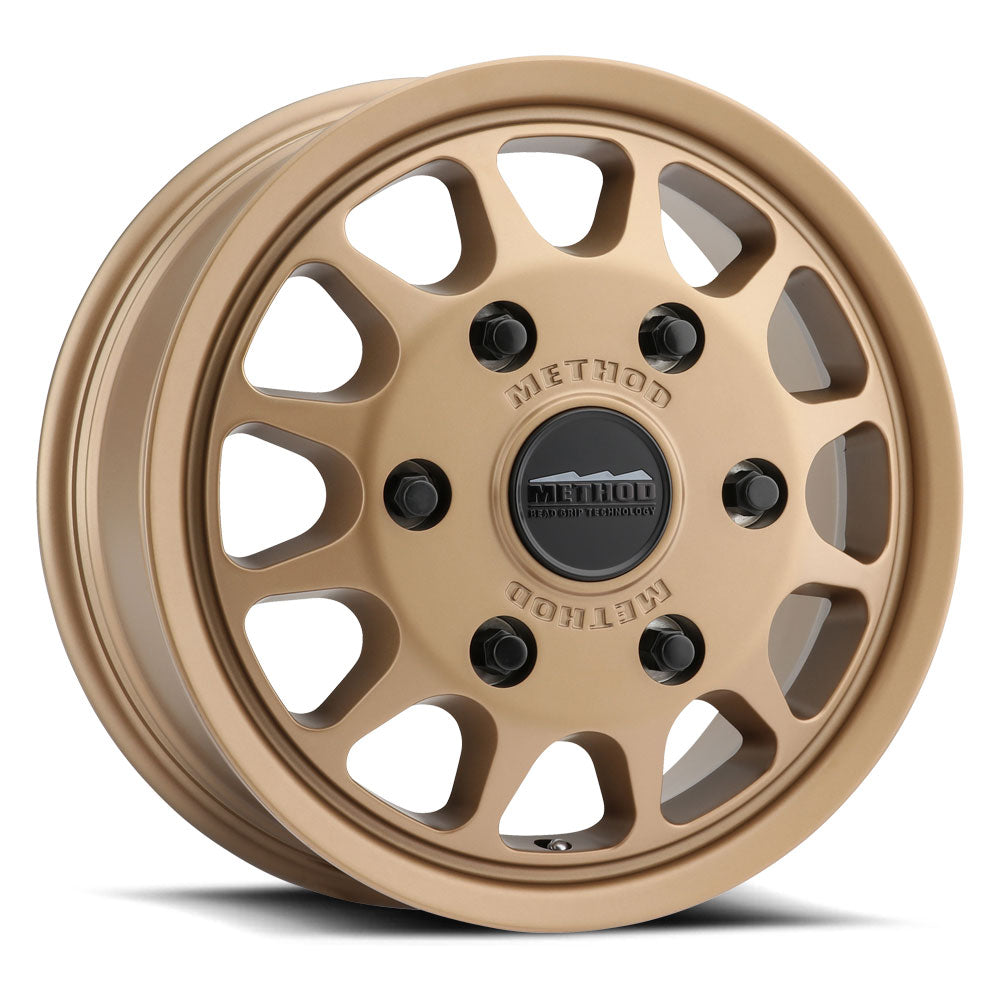

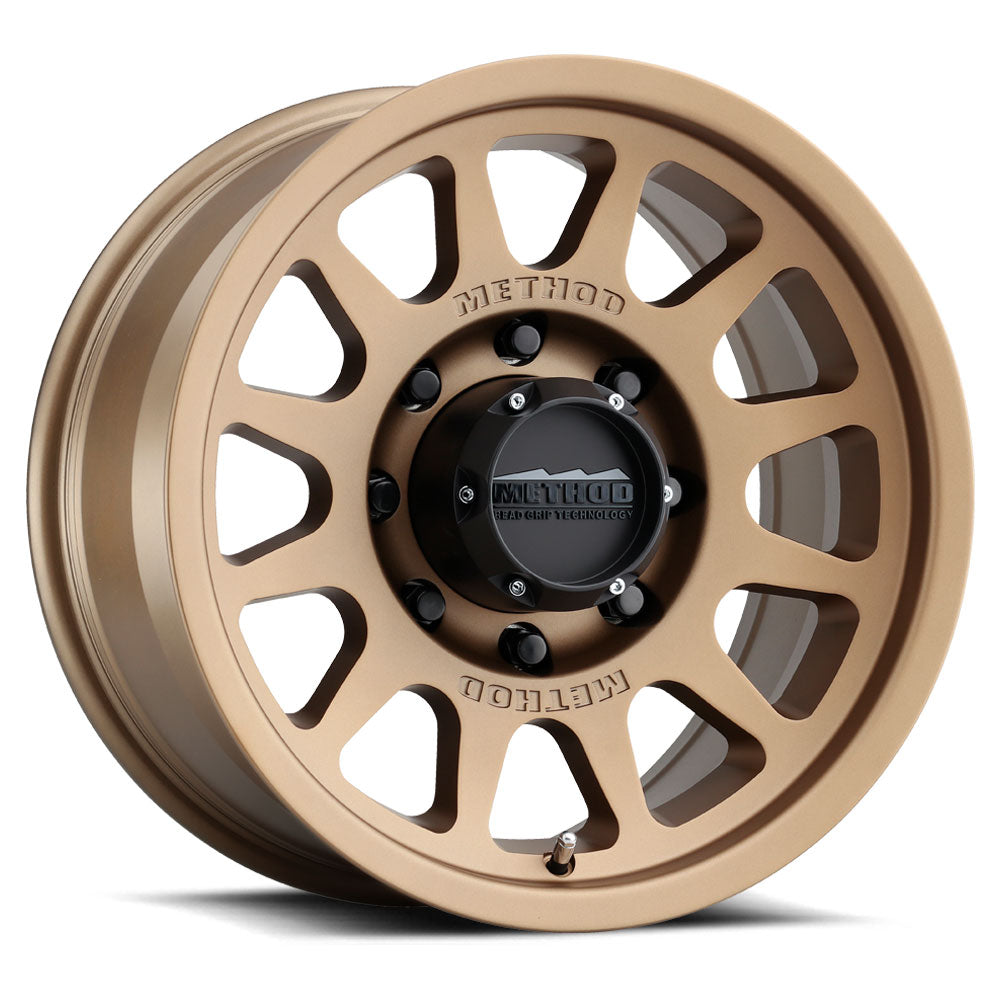

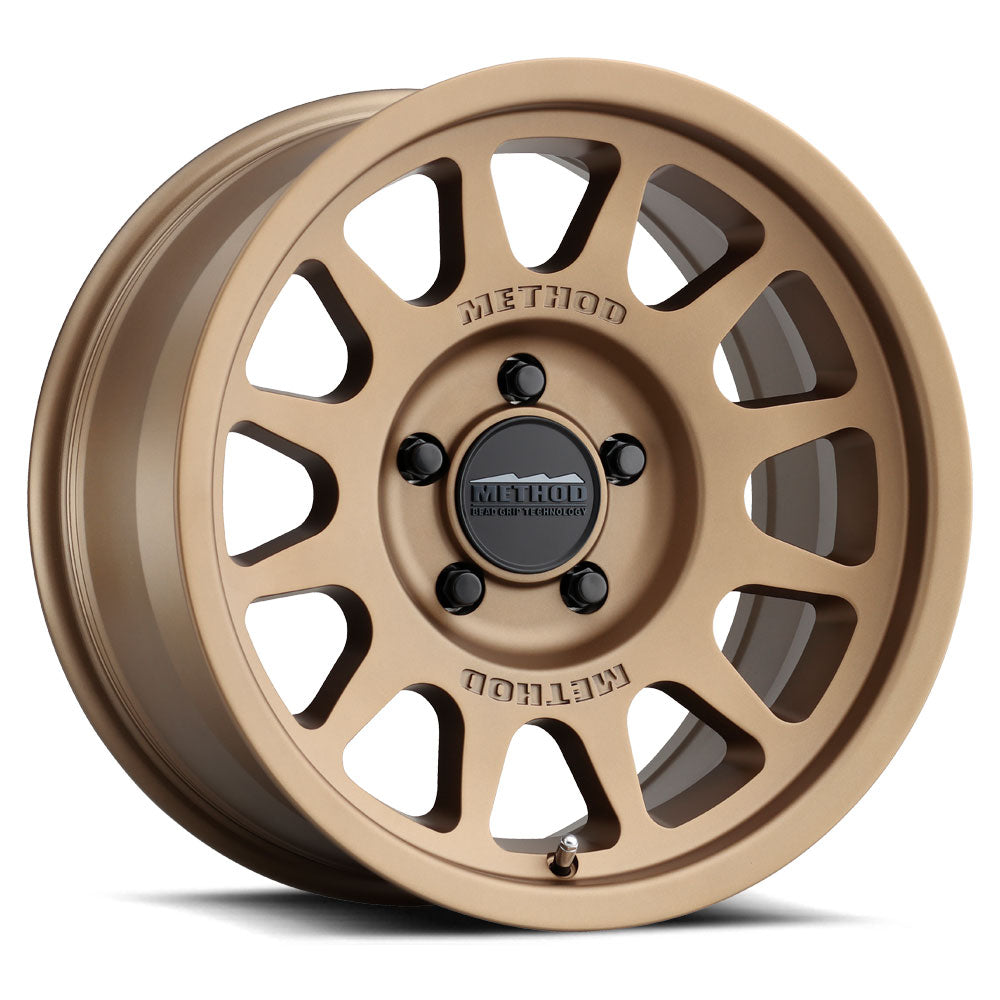

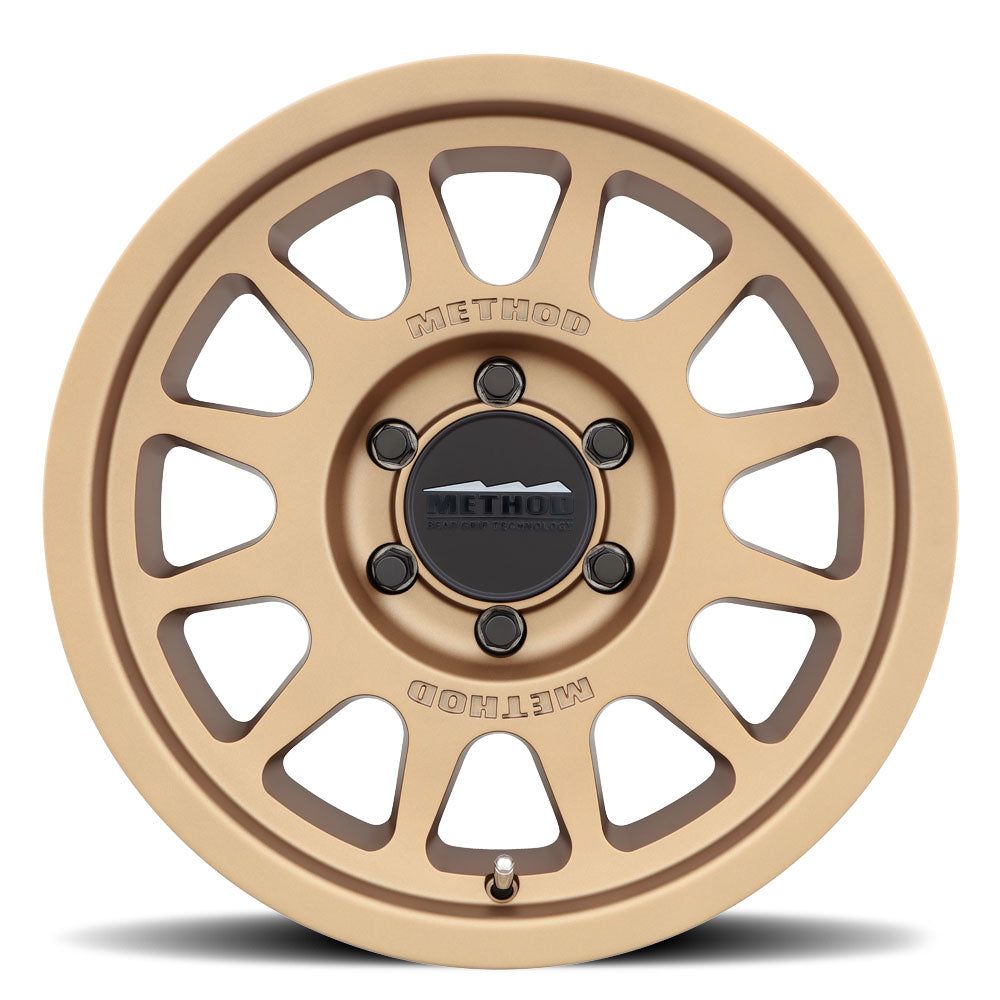

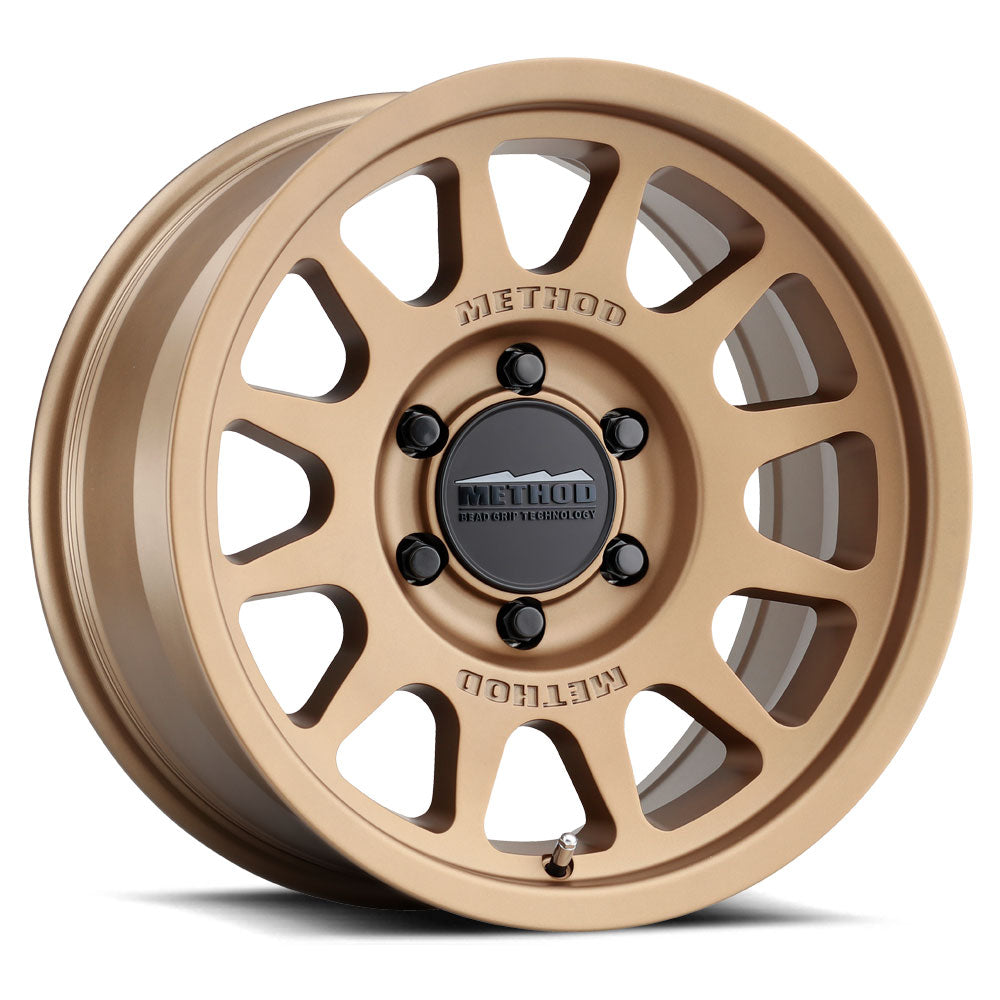

Built for off-road enthusiasts, the 703 Bead Grip® wheel is designed for the toughest trails and your next overland trip. Its iconic 12-window design and dual debossed METHOD logos set your rig apart. Bead Grip Technology® lets you air down to pressures that used to require a beadlock to keep the tire from unseating. Running lower pressure off-road widens the tire's contact patch for more traction on loose terrain and softens the ride by lowering the tire's effective spring rate.

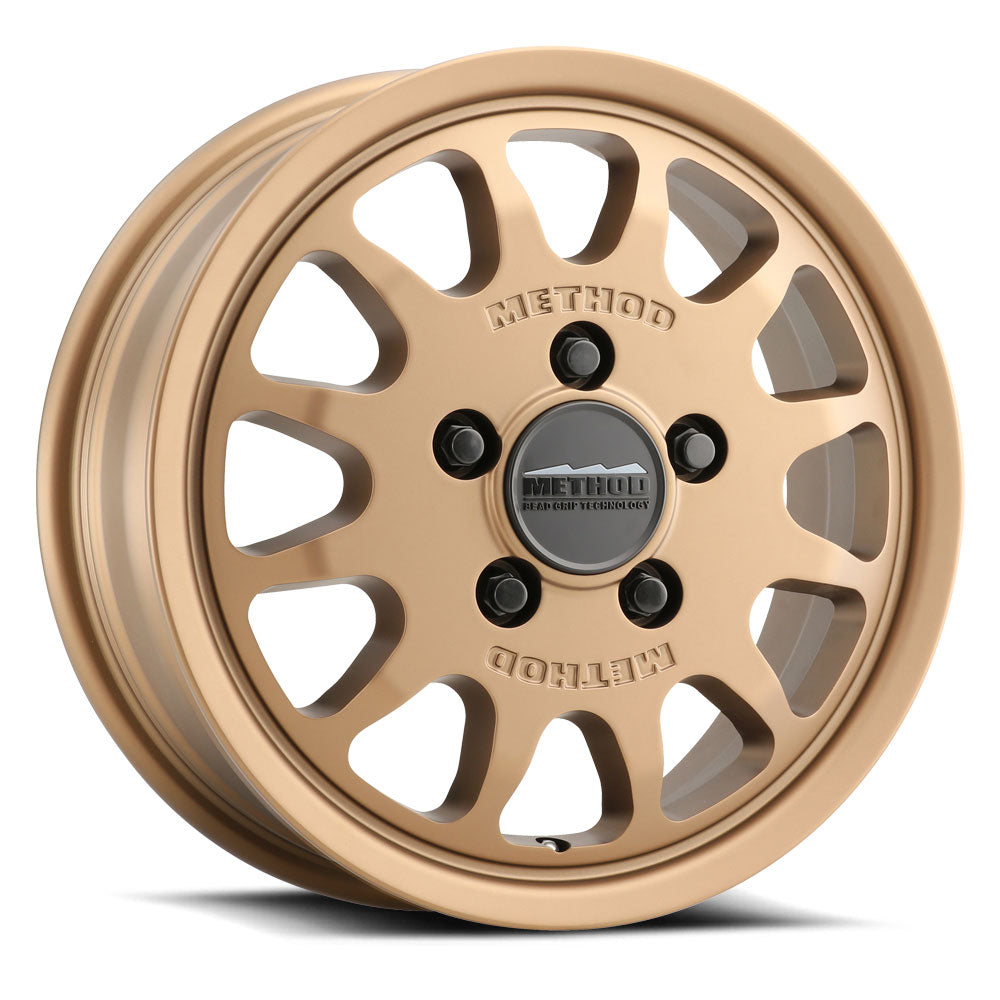

The 703 lineup also includes popular van fitments.
Specifications
| Part Number |
Size |
Bolt Pattern |
Offset (mm) |
Back Spacing (in) |
Hub Bore (mm) |
Weight (lbs) |
Max Load (lbs) |
| MR70368060900 |
16x8 |
6x139.7 (6x5.5) |
0 |
4.5 |
106.25 |
25.24 |
2650 |
| MR70377563950 |
17x7.5 |
6x130 |
50 |
6.2 |
84.1 |
27.43 |
3640 |
| MR70378558935 |
17x8.5 |
5x150 |
35 |
6.2 |
110.5 |
27.93 |
2650 |
| MR70378550900 |
17x8.5 |
5x127 (5x5) |
0 |
4.8 |
71.5 |
27.28 |
2650 |
| MR70378558900 |
17x8.5 |
5x150 |
0 |
4.8 |
110.5 |
26.59 |
2650 |
| MR70378516900 |
17x8.5 |
6x135 |
0 |
4.8 |
87 |
26.9 |
2650 |
| MR70378516925 |
17x8.5 |
6x135 |
25 |
5.78 |
87 |
28.94 |
2650 |
| MR70378560900 |
17x8.5 |
6x139.7 (6x5.5) |
0 |
4.8 |
106.25 |
26.75 |
2650 |
| MR70378560935 |
17x8.5 |
6x139.7 (6x5.5) |
35 |
6.2 |
106.25 |
27.93 |
2650 |
| MR70379050912N |
17x9 |
5x127 (5x5) |
-12 |
4.57 |
71.5 |
27.07 |
2650 |
| MR70379055912N |
17x9 |
5x139.7 (5x5.5) |
-12 |
4.57 |
108 |
26.37 |
2650 |
| MR70379060912N |
17x9 |
6x139.7 (6x5.5) |
-12 |
4.57 |
106.25 |
26.29 |
2650 |
Details
- Patented Bead Grip Technology® engages tire bead for increased grip at low tire pressures
- Solid A356 aluminum with T6 heat treatment construction
- Iconic 12 window design with debossed METHOD logos
- Aggressive safety hump on bead seats further prevents debeading
- Reinforced inner lip taken from MRW race wheel increases strength
- Snap-in center cap with embossed METHOD Bead Grip Technology® logo
- Push-through center cap with embossed METHOD Bead Grip Technology® logo for 8 lug applications
- Hub centric fitments for common applications
- Industry’s best lifetime structural warranty
- Super strong 2650 lbs. and 3640 lbs. load ratings
