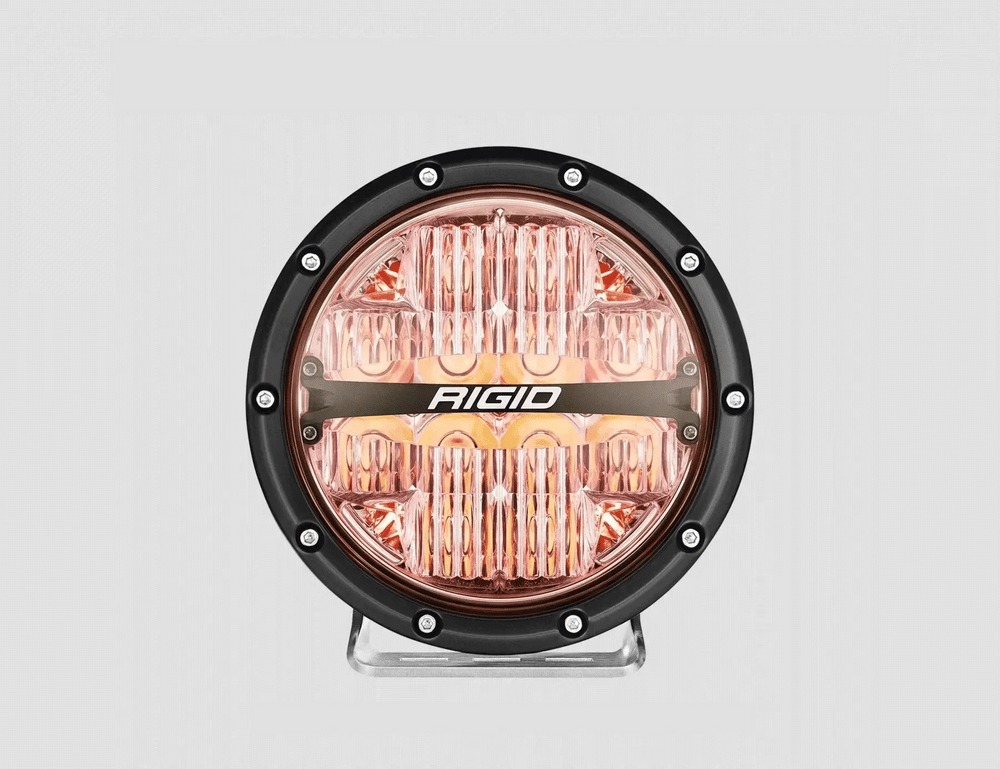

RIGID Industries' 360-Series family of LED lights. The optimized beam patterns project 3060 to 23,232 raw lumens, depending on which size light you select, and are protected by an aluminum housing.
RIGID’s 360-Series feature beam patterns are available from 17.2 degrees to 68.7 degrees on the horizontal plane, providing an option for any application. RIGID 360-Series round lights seamlessly integrate into multiple OEM applications and make it easier than ever to Own The Night.
Note: 4" and 6" kits include a harness and switch.
Specs (per light):

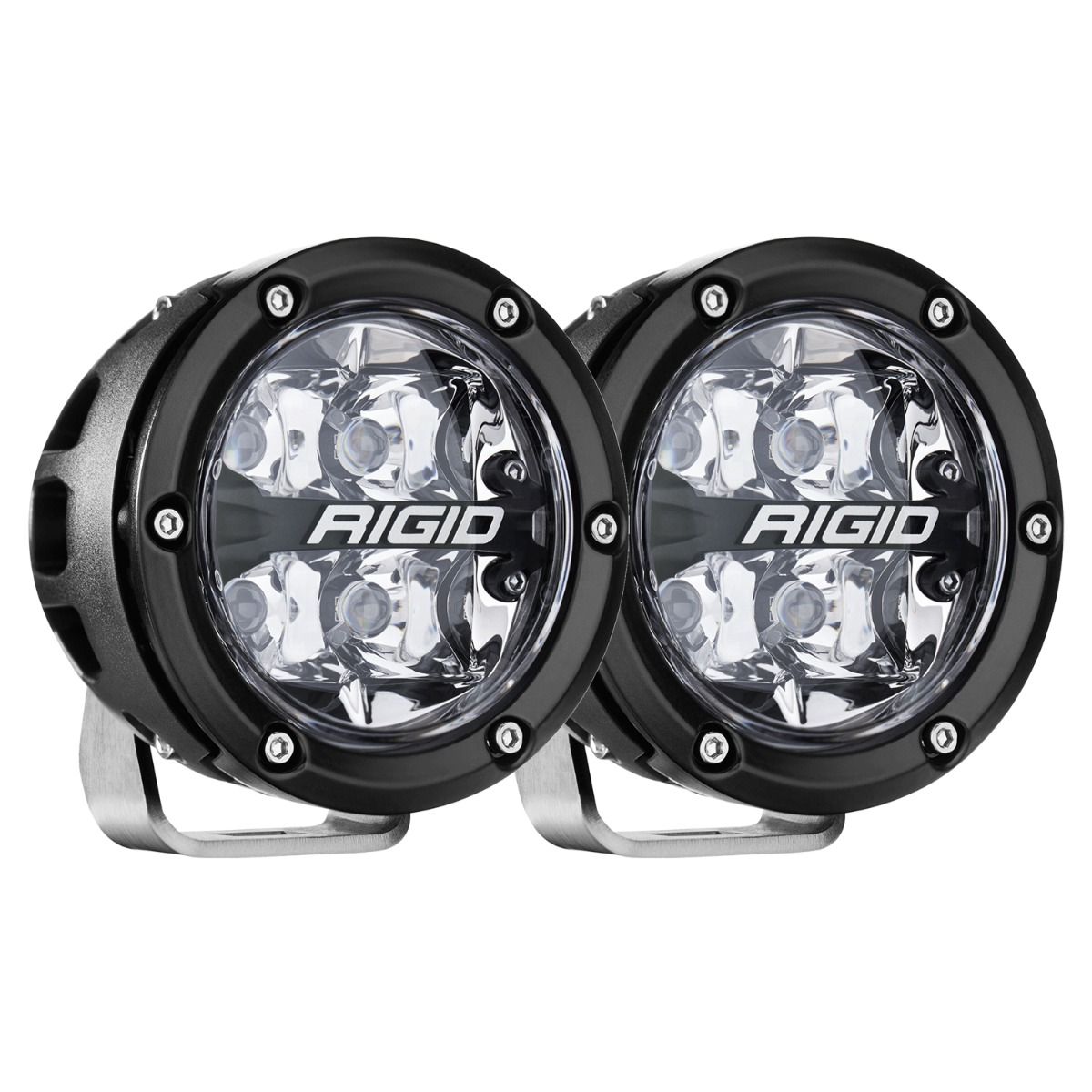

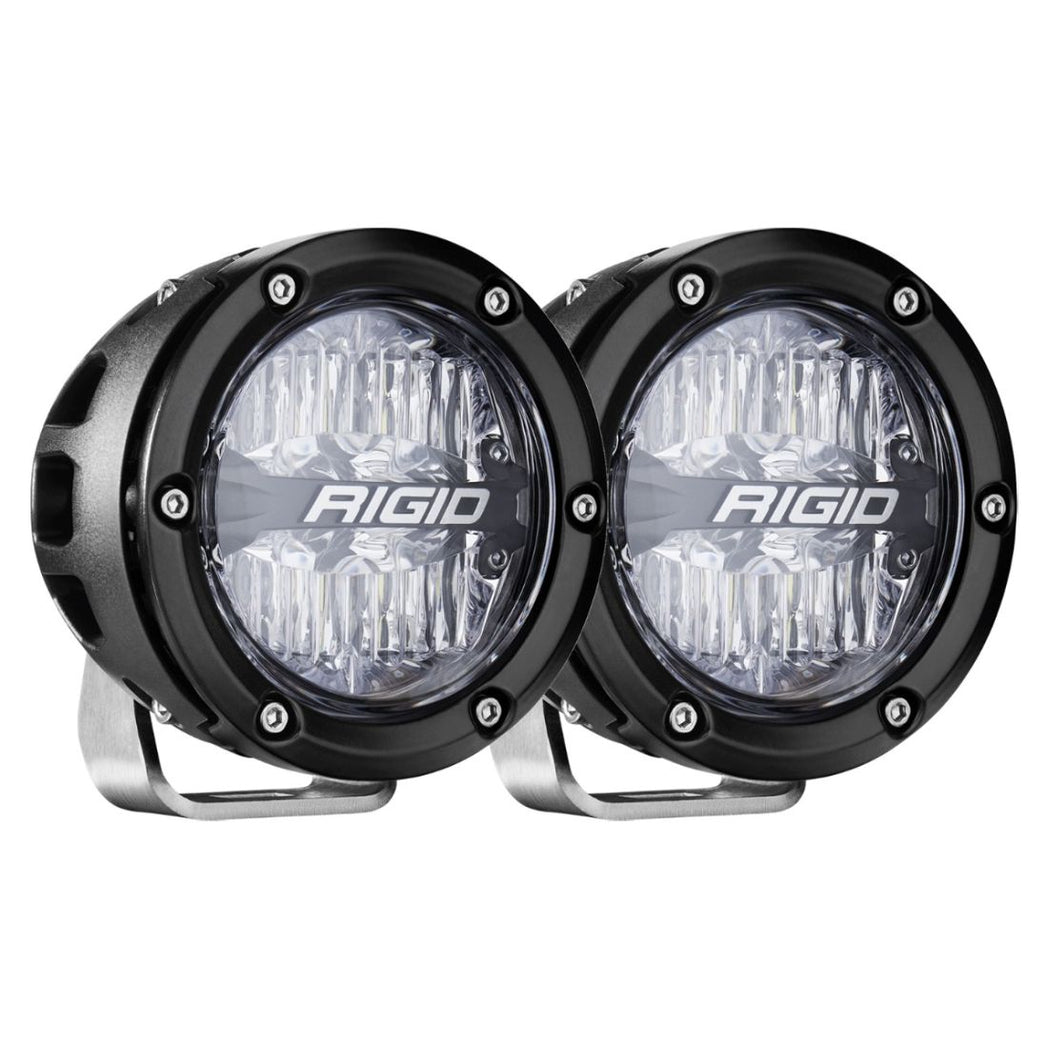

4" Light:
- Raw Lumens: 3,060
- 2A/28W per light
- Peak Beam Intensity measured in Candela (cd) by pattern + Horizontal and Vertical Field Degrees:

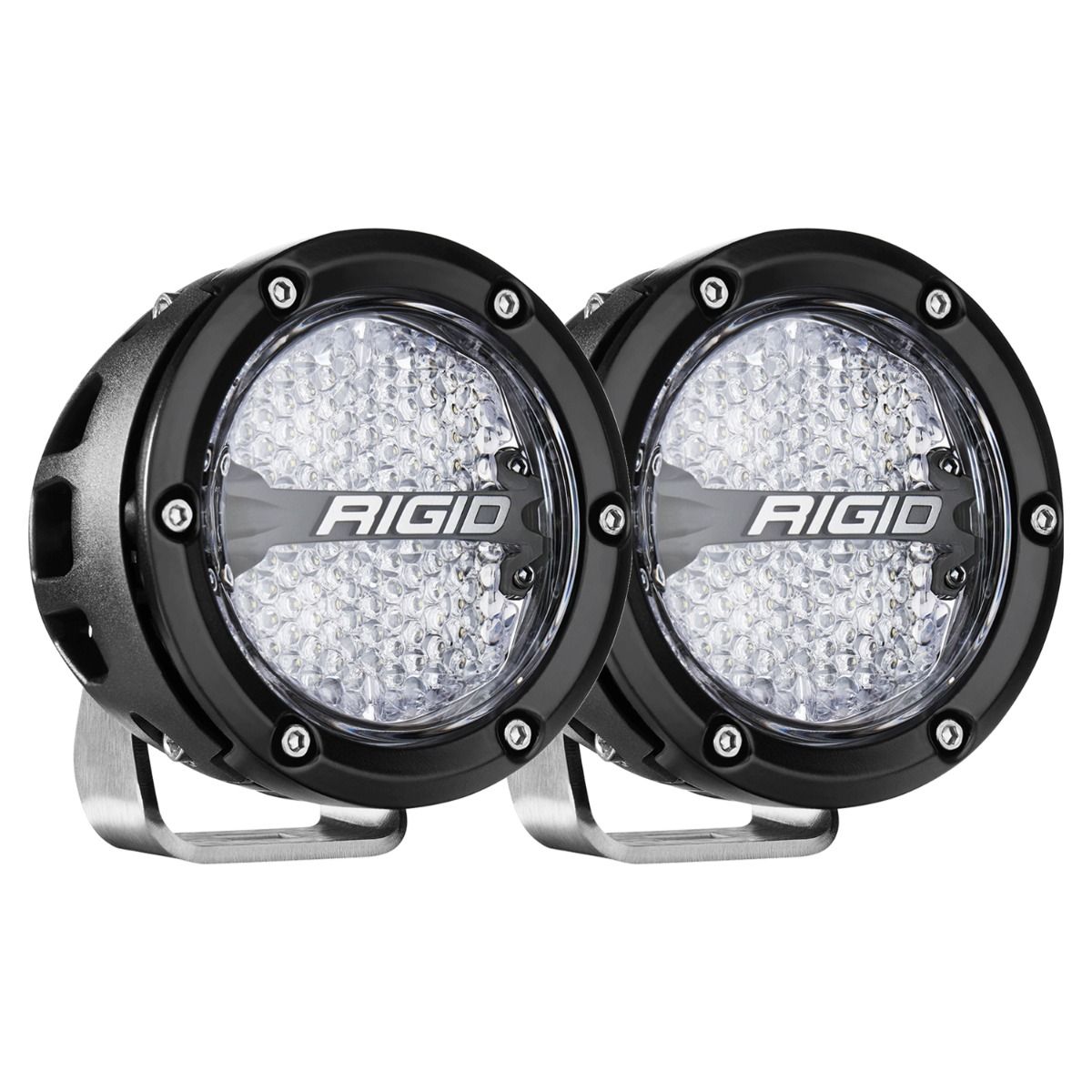

- Diffused: 1,681 cd, 68.7 degrees Horizontal Field, 44.5 degrees Vertical Field
- Drive: 32,685 cd, 44 degrees Horizontal Field, 15.4 degrees Vertical Field
- Spot: 72,582 cd, 16.5 degrees Horizontal Field, 15.7 degrees Vertical Field

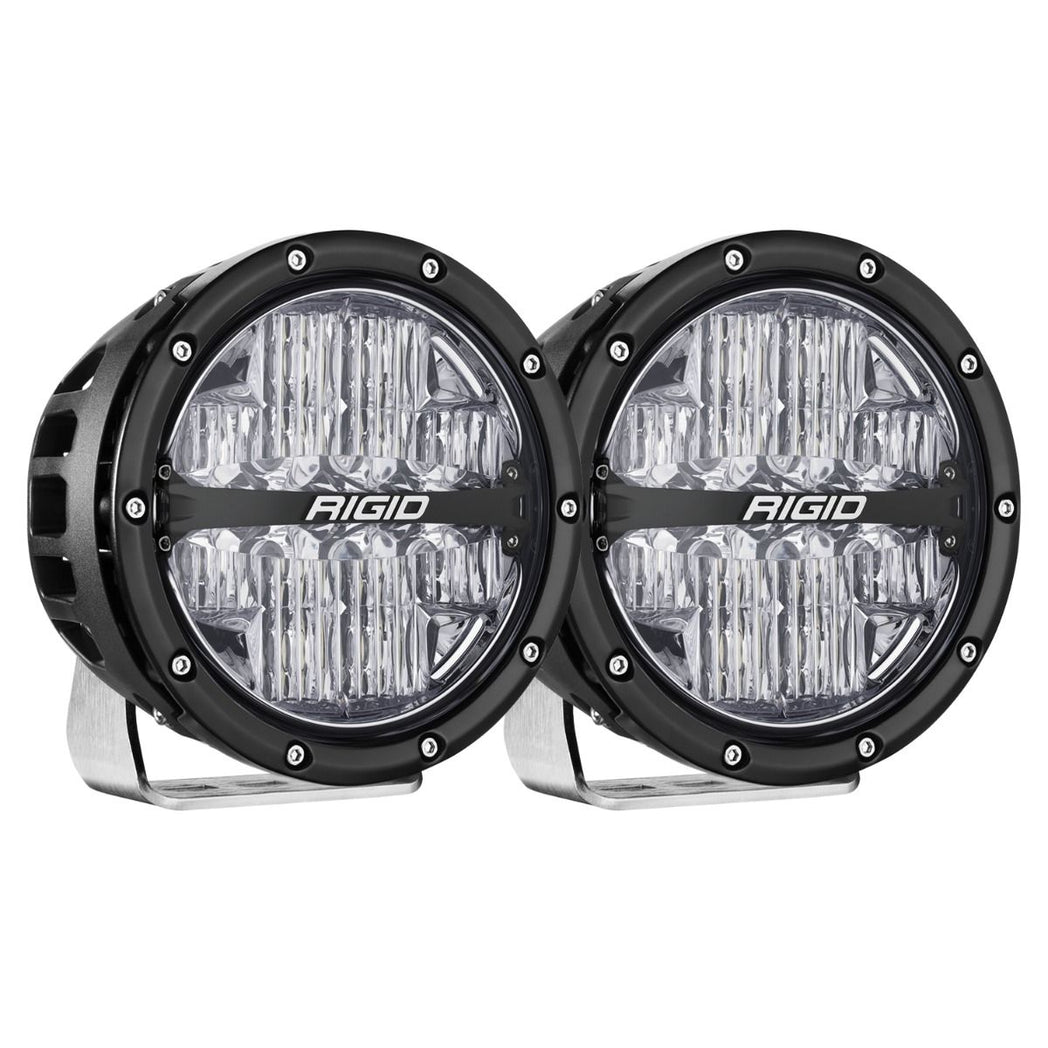

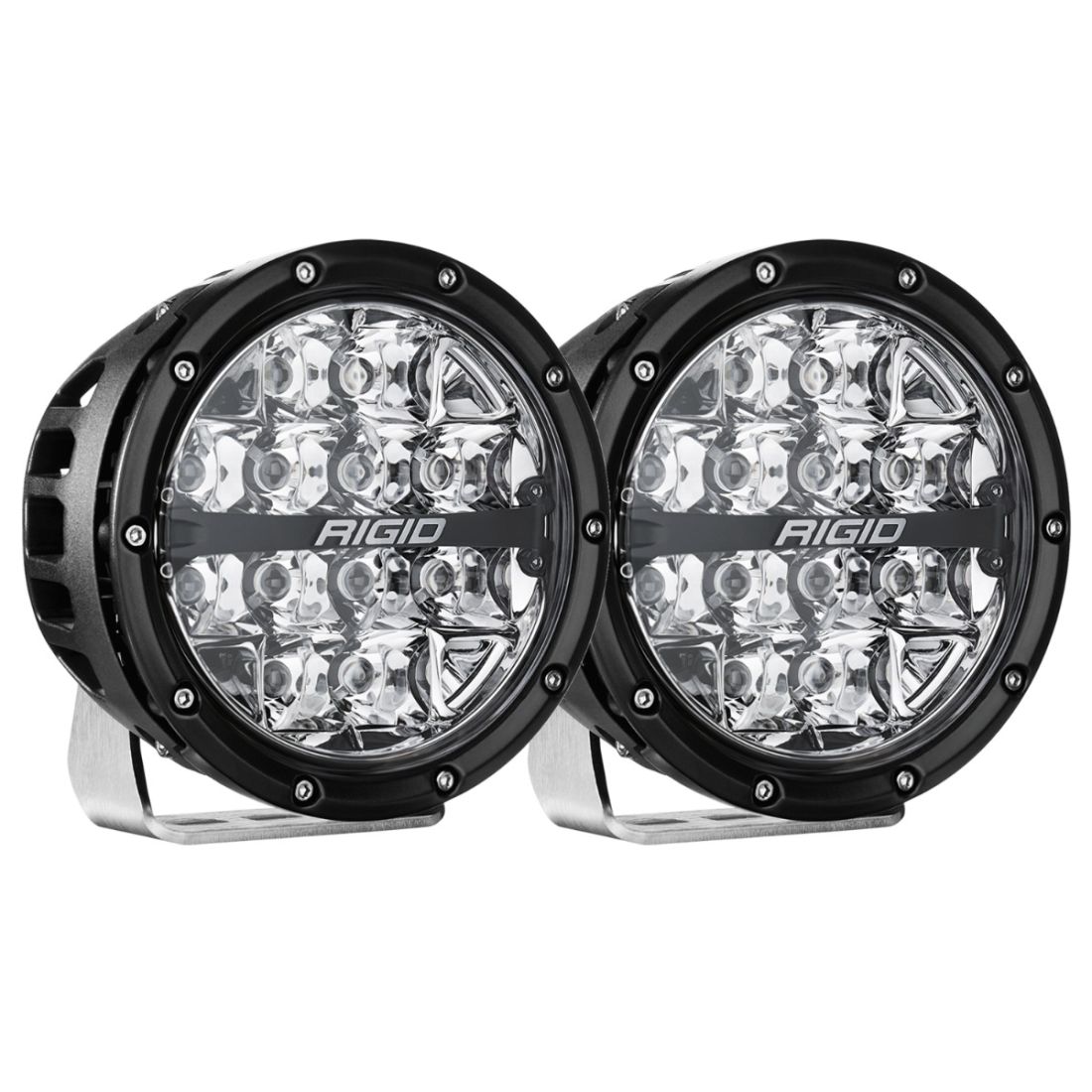

6" Light:
- Raw Lumens: 8,670
- 5.1A/72W per light
- Peak Beam Intensity measured in Candela (cd) by pattern + Horizontal and Vertical Field Degrees:
- Drive: 74,615 cd, 58.9 degrees Horizontal Field, 18.9 degrees Vertical Field
- Spot: 213,091 cd, 17.2 degrees Horizontal Field, 16.8 degrees Vertical Field

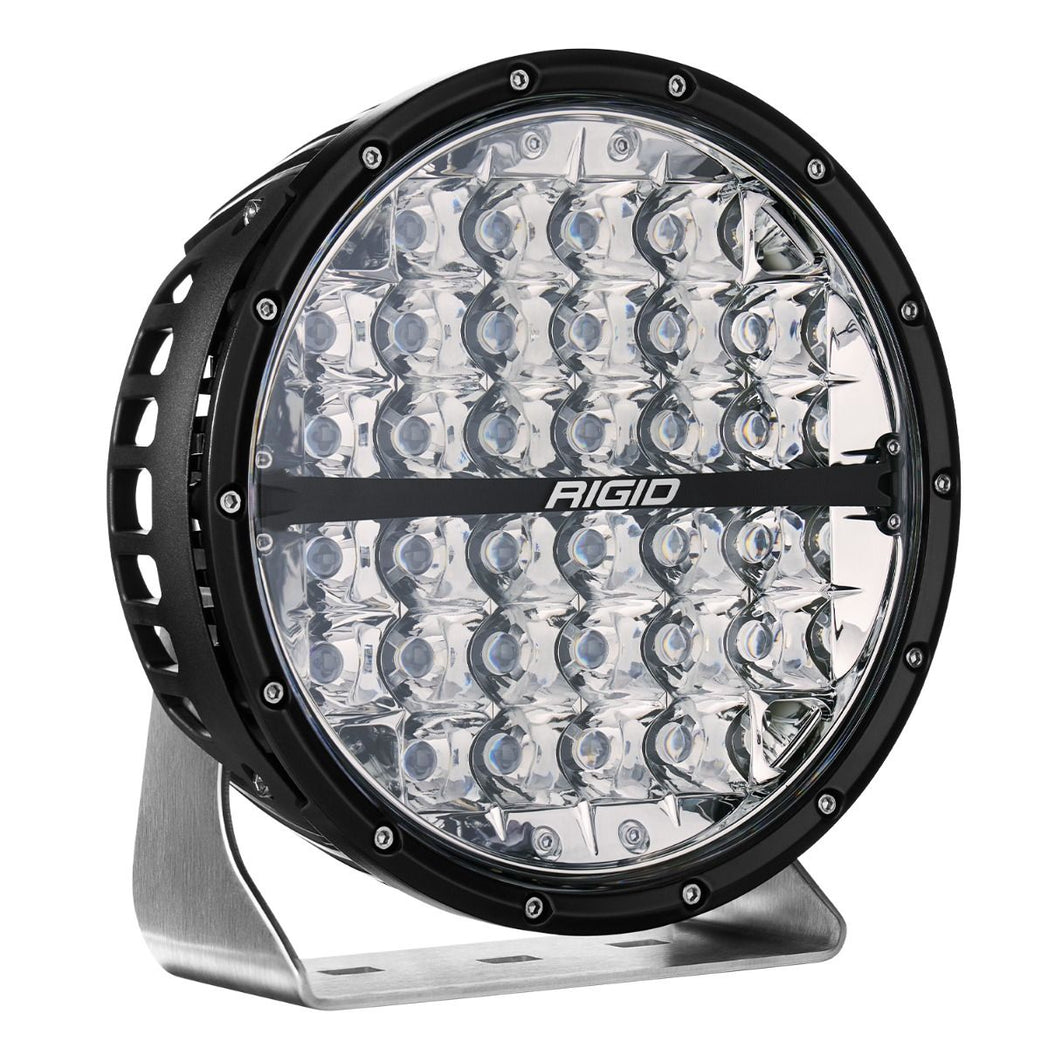

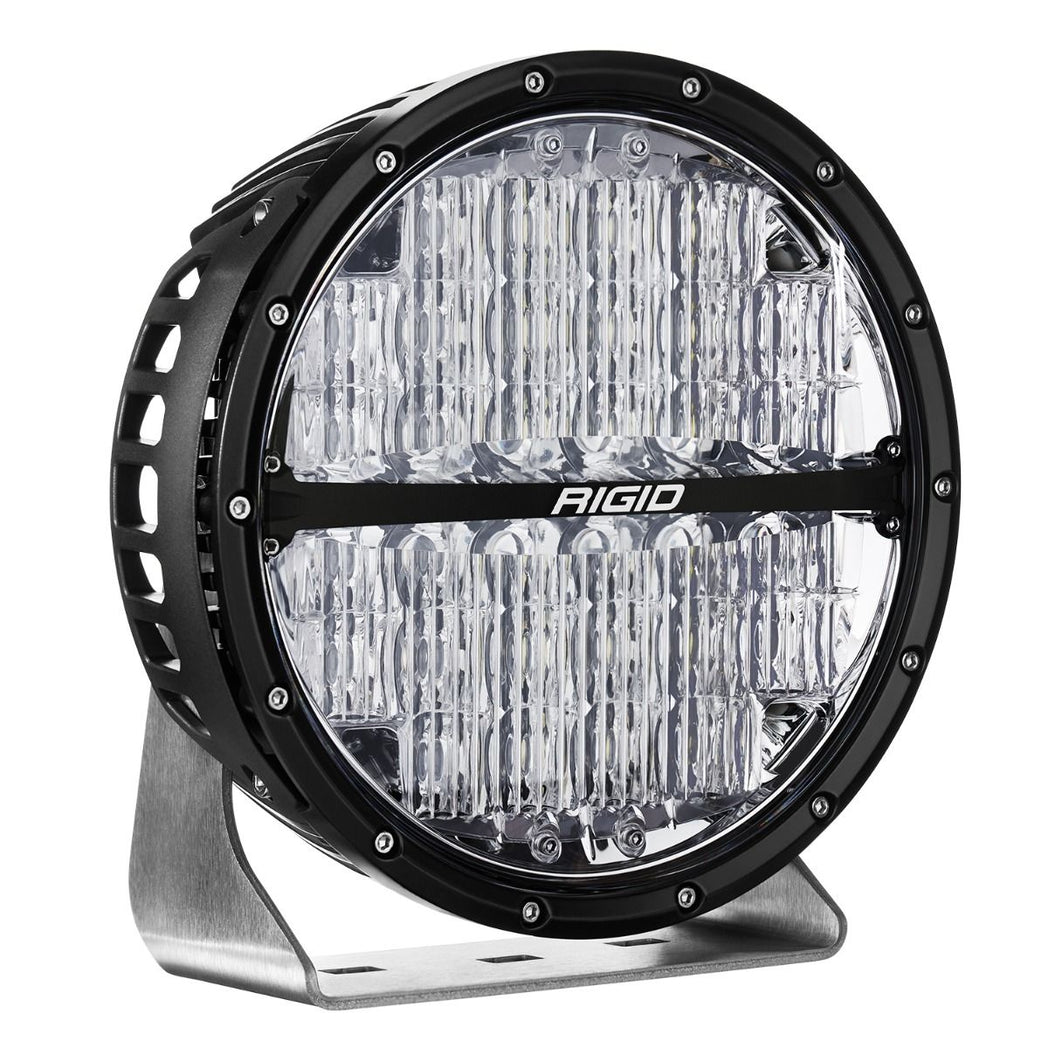

9" Light:
- Raw Lumens: 23,232
- 13.6A/189W per light
- Peak Beam Intensity measured in Candela (cd) by pattern + Horizontal and Vertical Field Degrees:
- Drive: 137,471 cd, 58 degrees Horizontal Field, 19.9 degrees Vertical Field
- Spot: 453,633 cd, 18.2 degrees Horizontal Field, 17.9 degrees Vertical Field

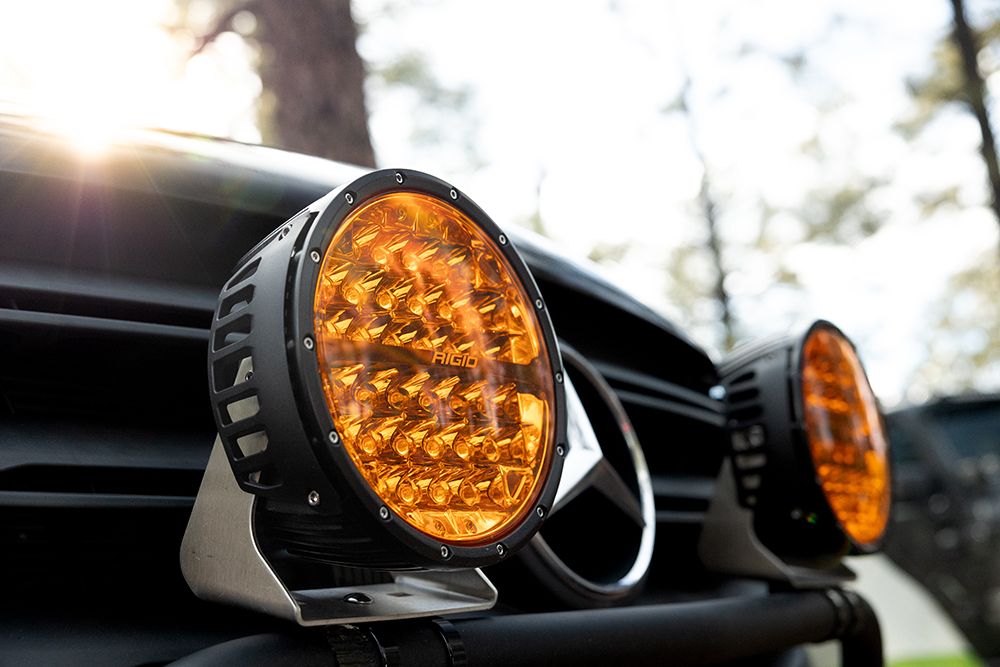

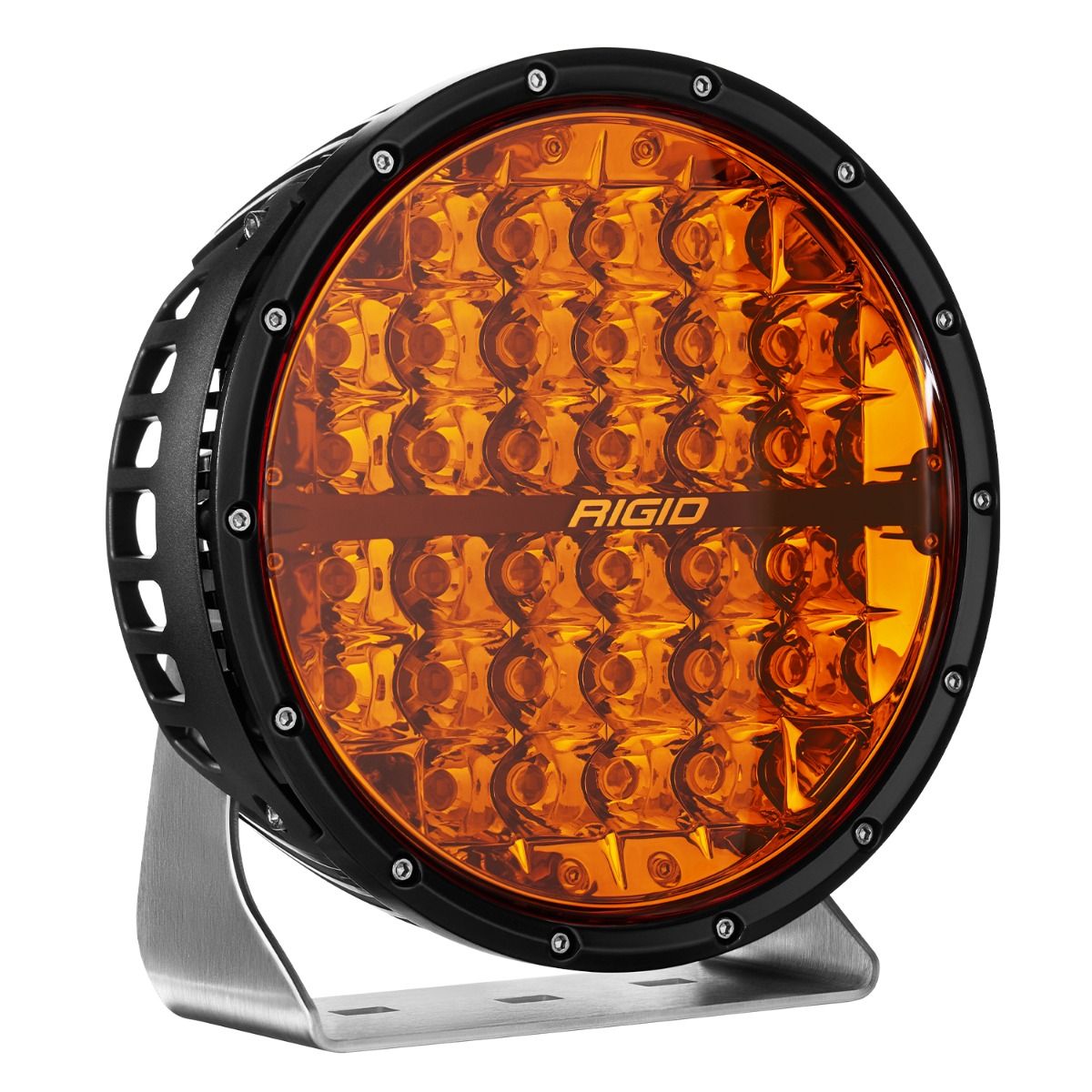

9" Amber Pro Light:
- Raw Lumens: 23,232
- 13.6A/189W per light
- Peak Beam Intensity measured in Candela (cd) by pattern + Horizontal and Vertical Field Degrees:
- Spot: 266,820 cd, 18.0 degrees Horizontal Field, 17.9 degrees Vertical Field
