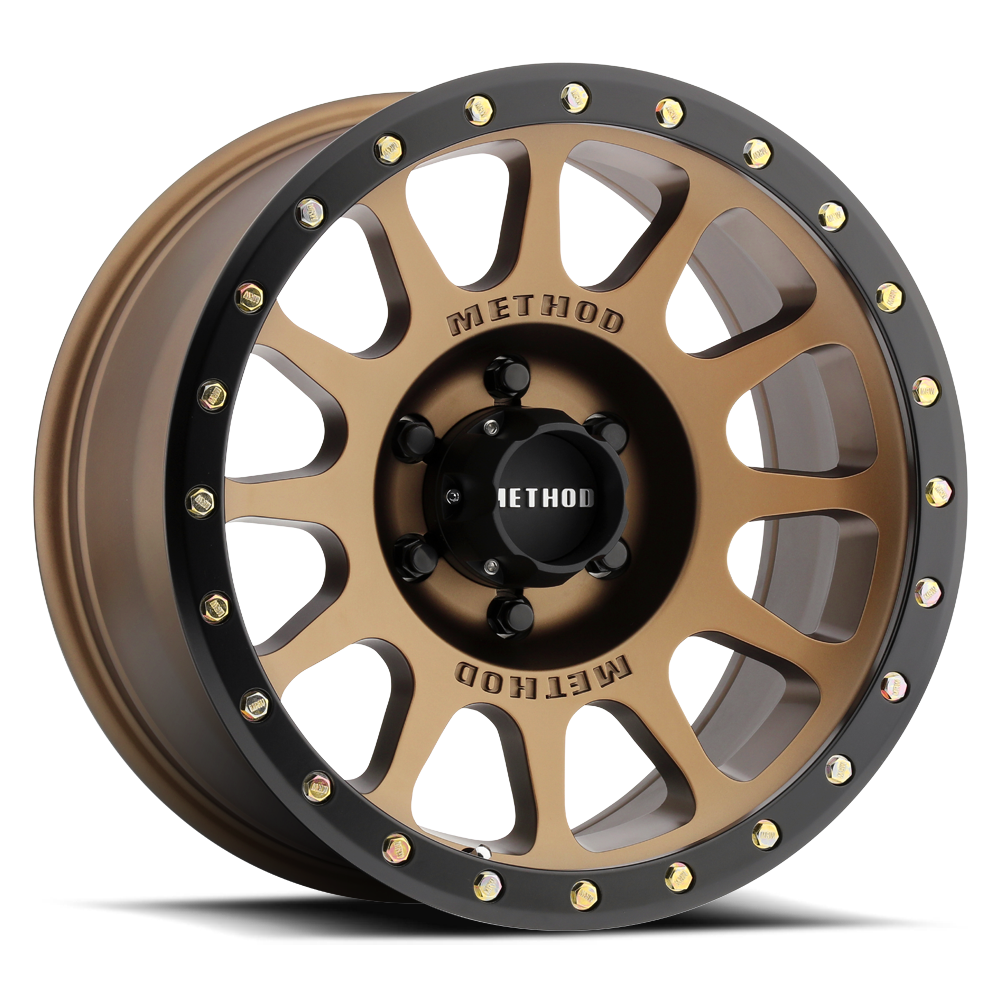

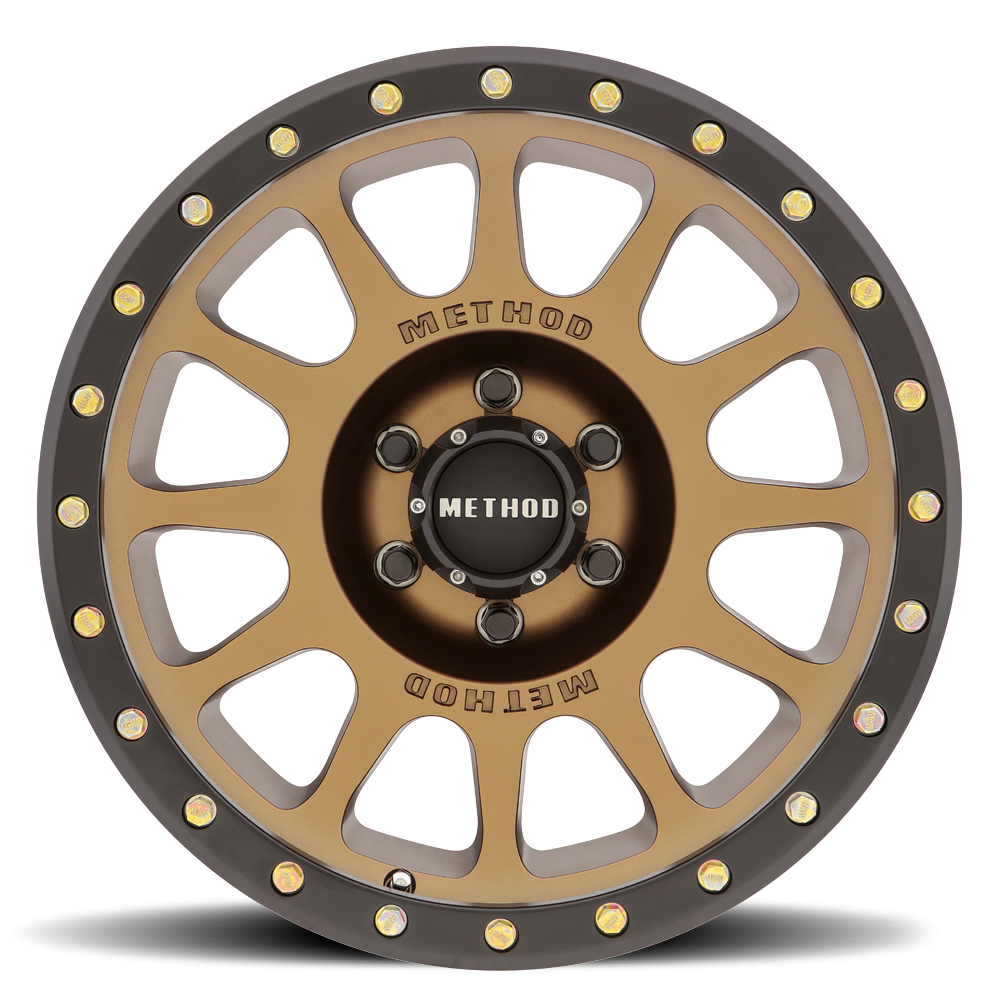

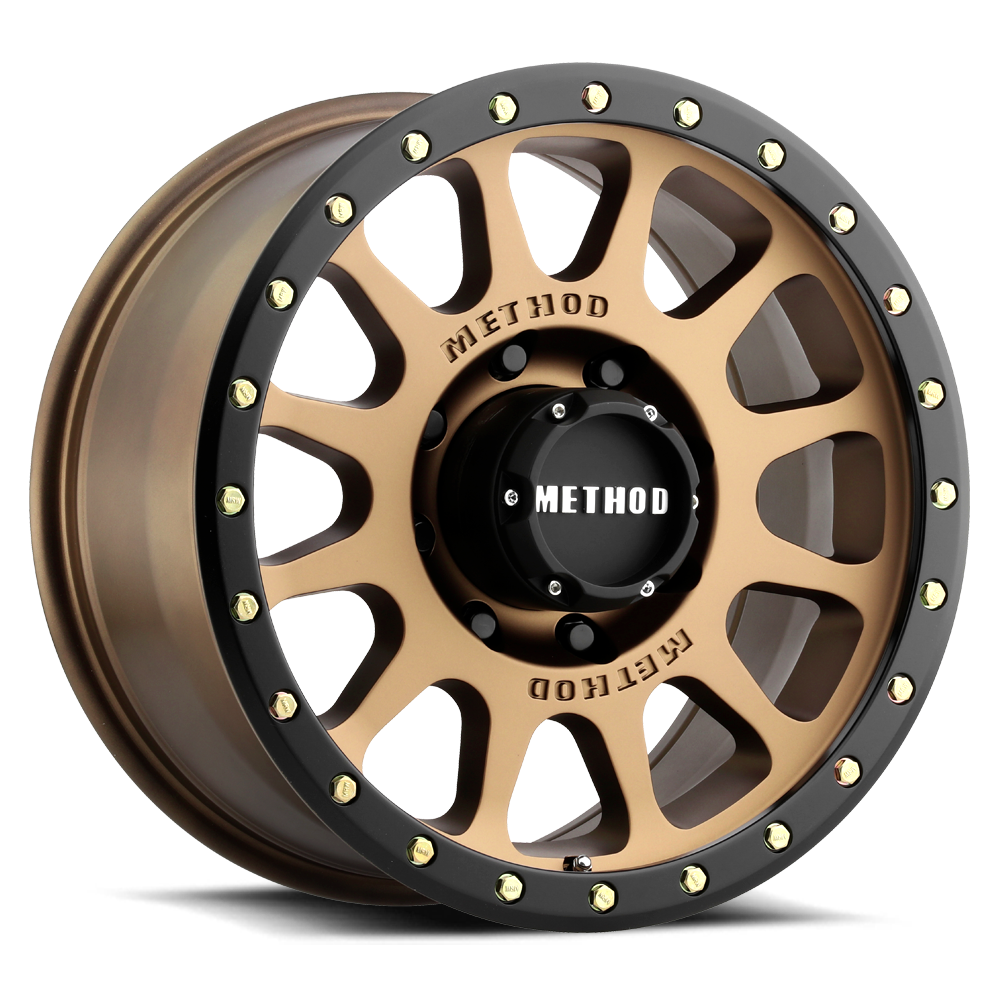

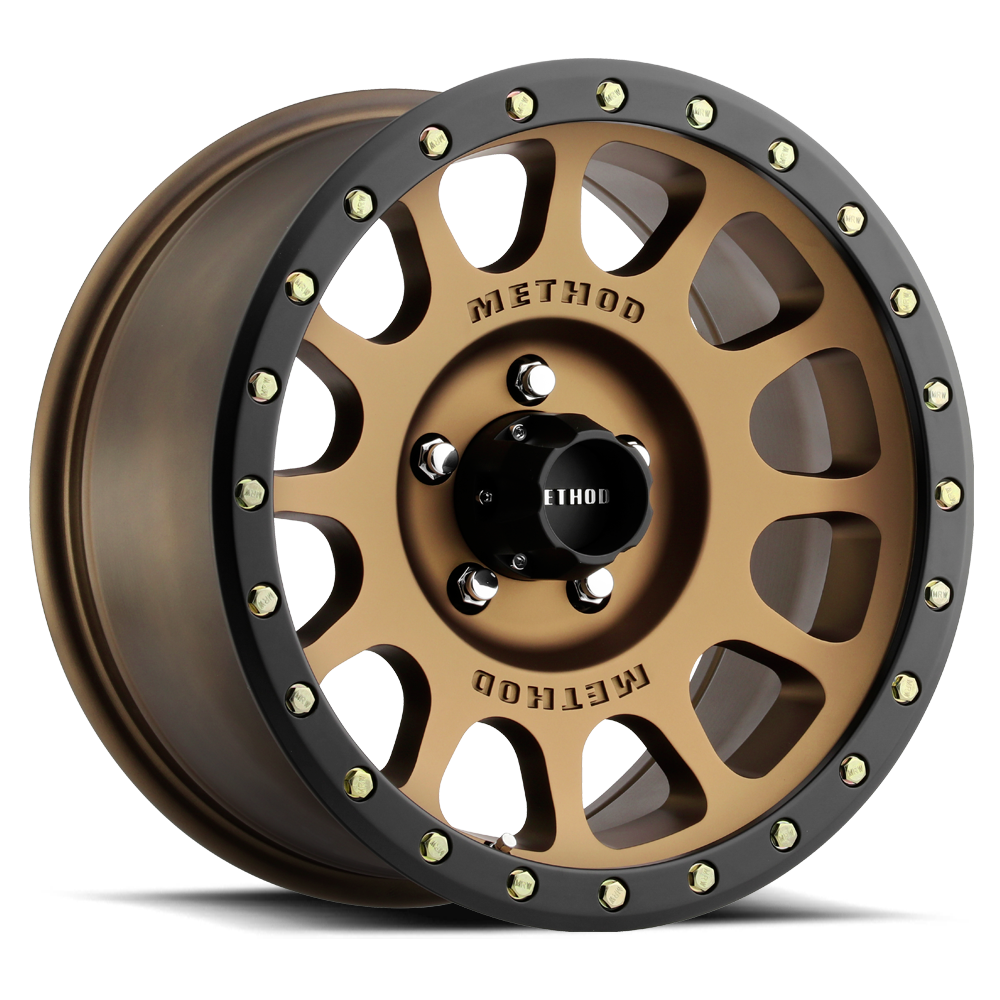

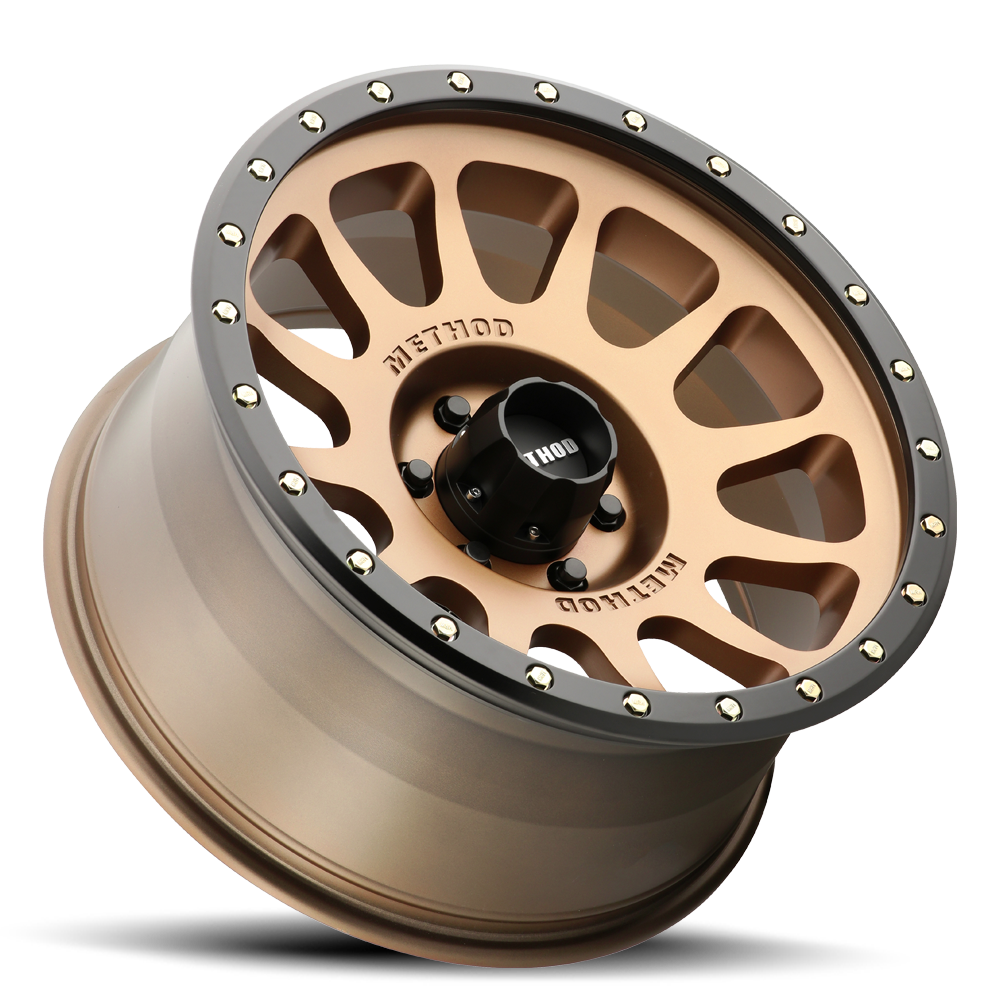

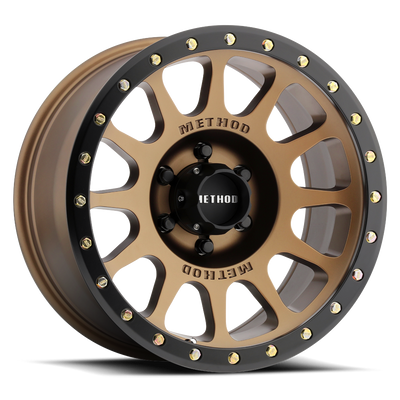

Overview
The 305 NV features Method's iconic 12-window design with a debossed Method logo on each side of the center cap. A lip undercut delivers true beadlock styling, and the replaceable lip bolts are available in optional colors. Load ratings range from 2,500 to 3,640 lbs., with heavy-duty (HD) 4,500 lb. fitments also offered.
Specifications
| Part Number |
Size |
Bolt Pattern |
Offset (mm) |
Back Spacing (in) |
Hub Bore (mm) |
Weight (lbs) |
Max Load (lbs) |
| MR30568060900 |
16x8 |
6x139.7 (6x5.5) |
0 |
4.5 |
108 |
26.49 |
2650 |
| MR30578550900 |
17x8.5 |
5x127 (5x5) |
0 |
4.75 |
94 |
30.86 |
2650 |
| MR30578558900 |
17x8.5 |
5x150 |
0 |
4.75 |
116.5 |
30.57 |
2650 |
| MR30578558925 |
17x8.5 |
5x150 |
25 |
5.7 |
116.5 |
29 |
2500 |
| MR30578555900 |
17x8.5 |
5x139.7 (5x5.5) |
0 |
4.75 |
108 |
30.57 |
2650 |
| MR30578560900 |
17x8.5 |
6x139.7 (6x5.5) |
0 |
4.75 |
108 |
30.35 |
2650 |
| MR30578560925 |
17x8.5 |
6x139.7 (6x5.5) |
25 |
5.7 |
108 |
29.39 |
2500 |
| MR30578562925 |
17x8.5 |
6x120 |
25 |
5.7 |
83 |
30.02 |
2500 |
| MR30578516900 |
17x8.5 |
6x135 |
0 |
4.75 |
94 |
30.94 |
2650 |
| MR30578516925 |
17x8.5 |
6x135 |
25 |
5.7 |
94 |
29.87 |
2500 |
| MR30578580900 |
17x8.5 |
8x165.1 (8x6.5) |
0 |
4.75 |
130.81 |
31.31 |
3640 |
| MR30578587900 |
17x8.5 |
8x170 |
0 |
4.75 |
130.81 |
30.9 |
3640 |
| MR30589058900 |
18x9 |
5x150 |
0 |
5 |
116.5 |
34.43 |
2650 |
| MR30589058925 |
18x9 |
5x150 |
25 |
6 |
116.5 |
32.37 |
2650 |
| MR30589060912N |
18x9 |
6x139.7 (6x5.5) |
-12 |
4.5 |
108 |
32.67 |
2650 |
| MR30589060900 |
18x9 |
6x139.7 (6x5.5) |
0 |
5 |
108 |
34.83 |
2650 |
| MR30589060918 |
18x9 |
6x139.7 (6x5.5) |
18 |
5.75 |
108 |
33.95 |
2650 |
| MR30589016900 |
18x9 |
6x135 |
0 |
5 |
94 |
35.38 |
2650 |
| MR30589016918 |
18x9 |
6x135 |
18 |
5.75 |
94 |
34.72 |
2650 |
| MR30589087918 |
18x9 |
8x170 |
18 |
5.75 |
130.81 |
31.93 |
3640 |
| MR30529060918 |
20x9 |
6x139.7 (6x5.5) |
18 |
5.75 |
108 |
38.58 |
2650 |
| MR30529080918 |
20x9 |
8x165.1 (8x6.5) |
18 |
5.75 |
130.81 |
37.55 |
3640 |
| MR30521087918N |
20x10 |
8x170 |
-18 |
4.76 |
130.81 |
38.51 |
3640 |
Details
- Solid A356 aluminum with T6 heat treatment construction
- Iconic 12 window design with debossed METHOD logos
- Street-Loc V.1 lip with undercut simulates true beadlock wheel
- Replaceable MRW lip bolts with optional colors available
- Push through center cap with embossed METHOD logo
- Flush cap appearance options available
- Industry’s best lifetime structural warranty
- Strong 2500 lbs. to 3640 lbs. load ratings with HD 4500 lbs. applications available
