Preload Collar Lift Kit - 2022-2026 Toyota Tundra TRD

Westcott Designs TRD preload collar lift kit for the 2022-2026 Toyota Tundra

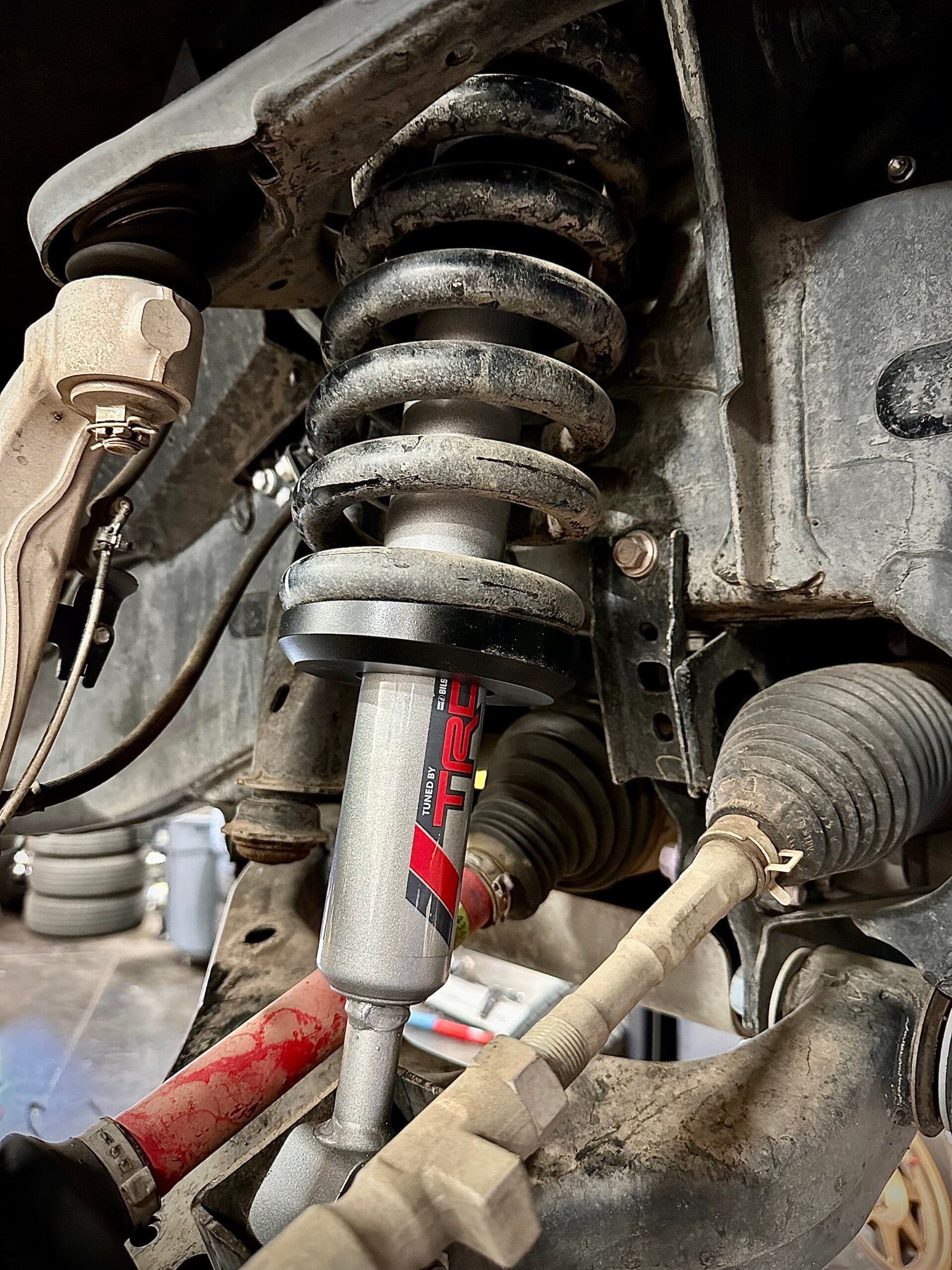

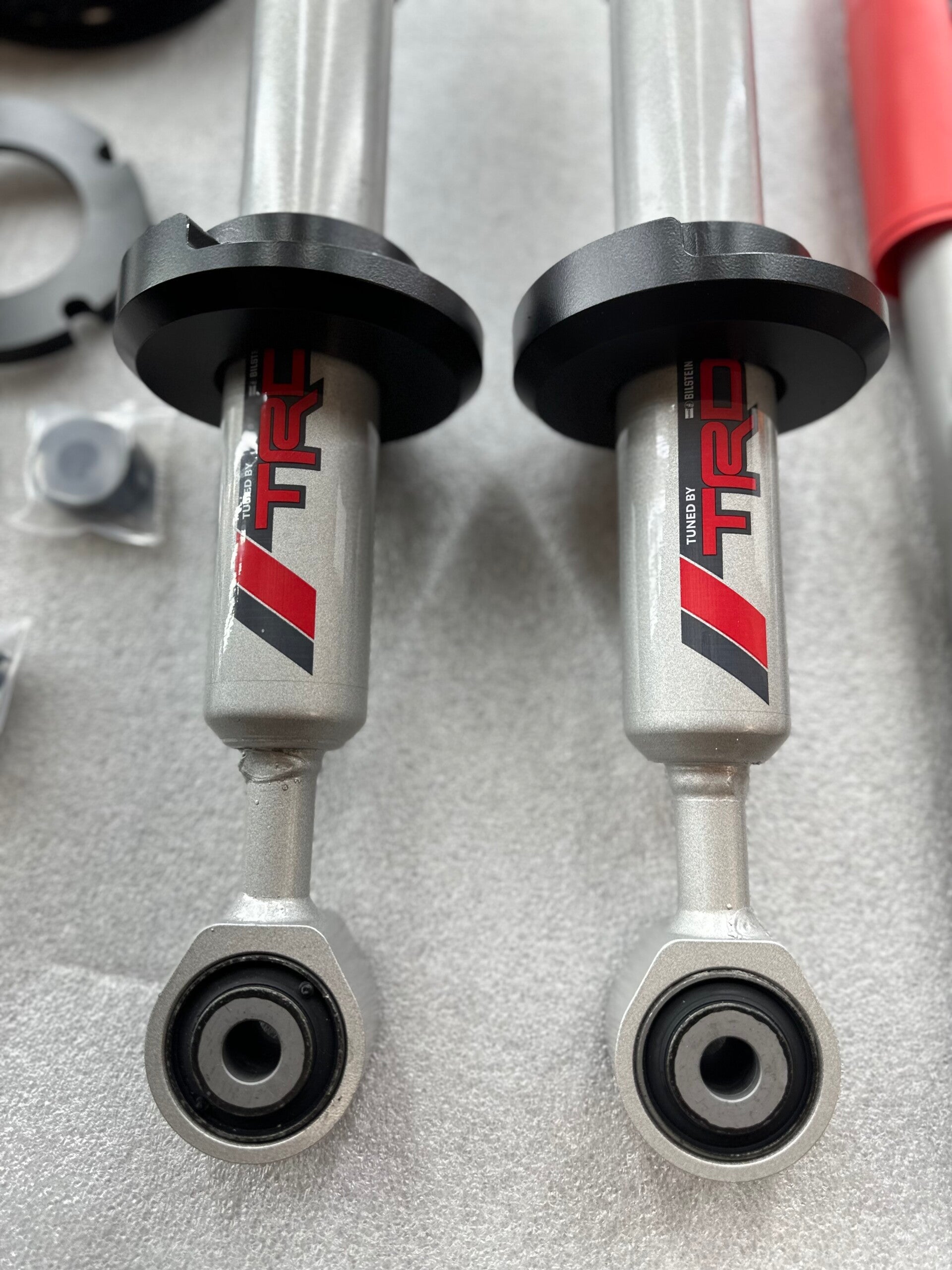

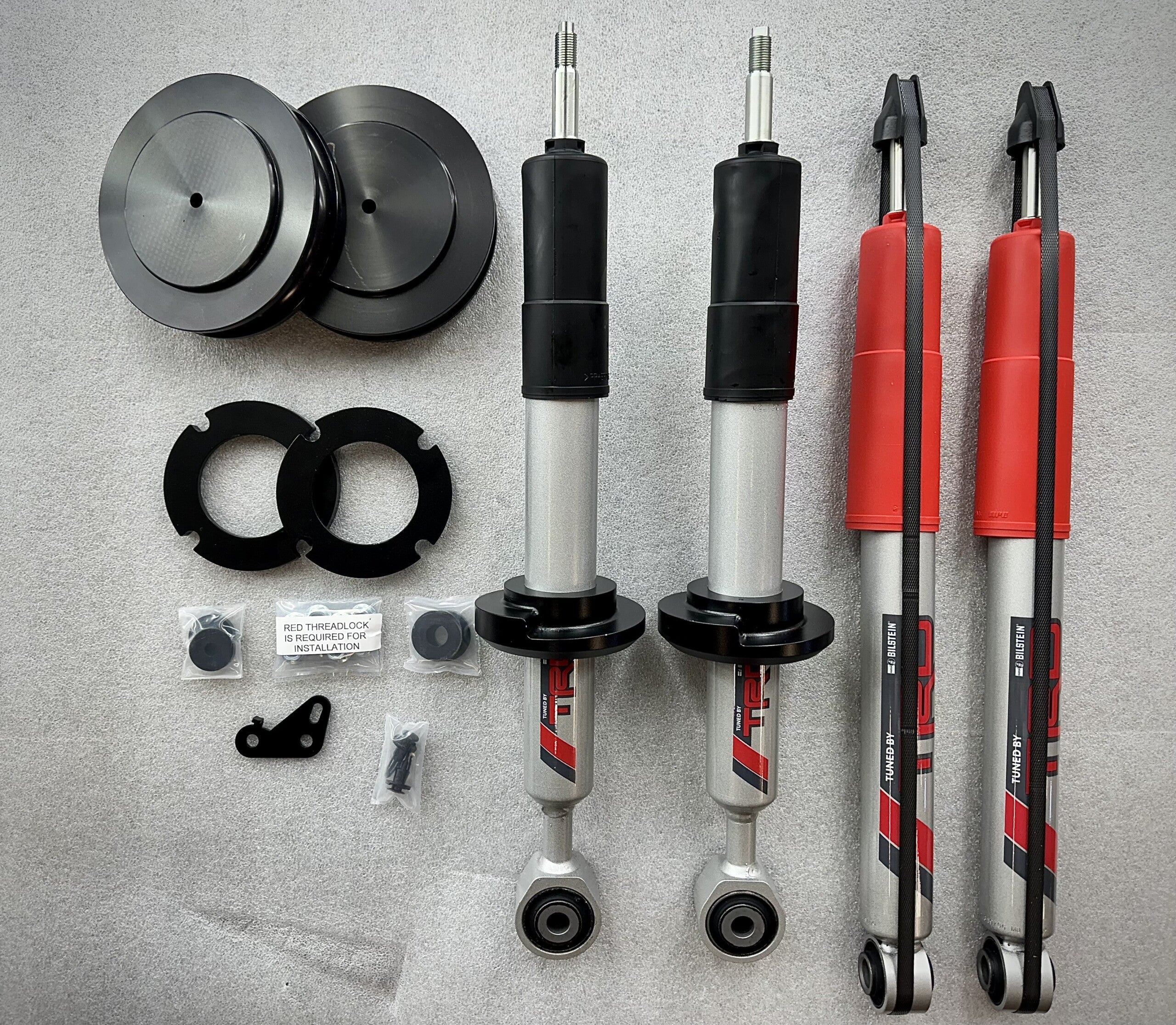

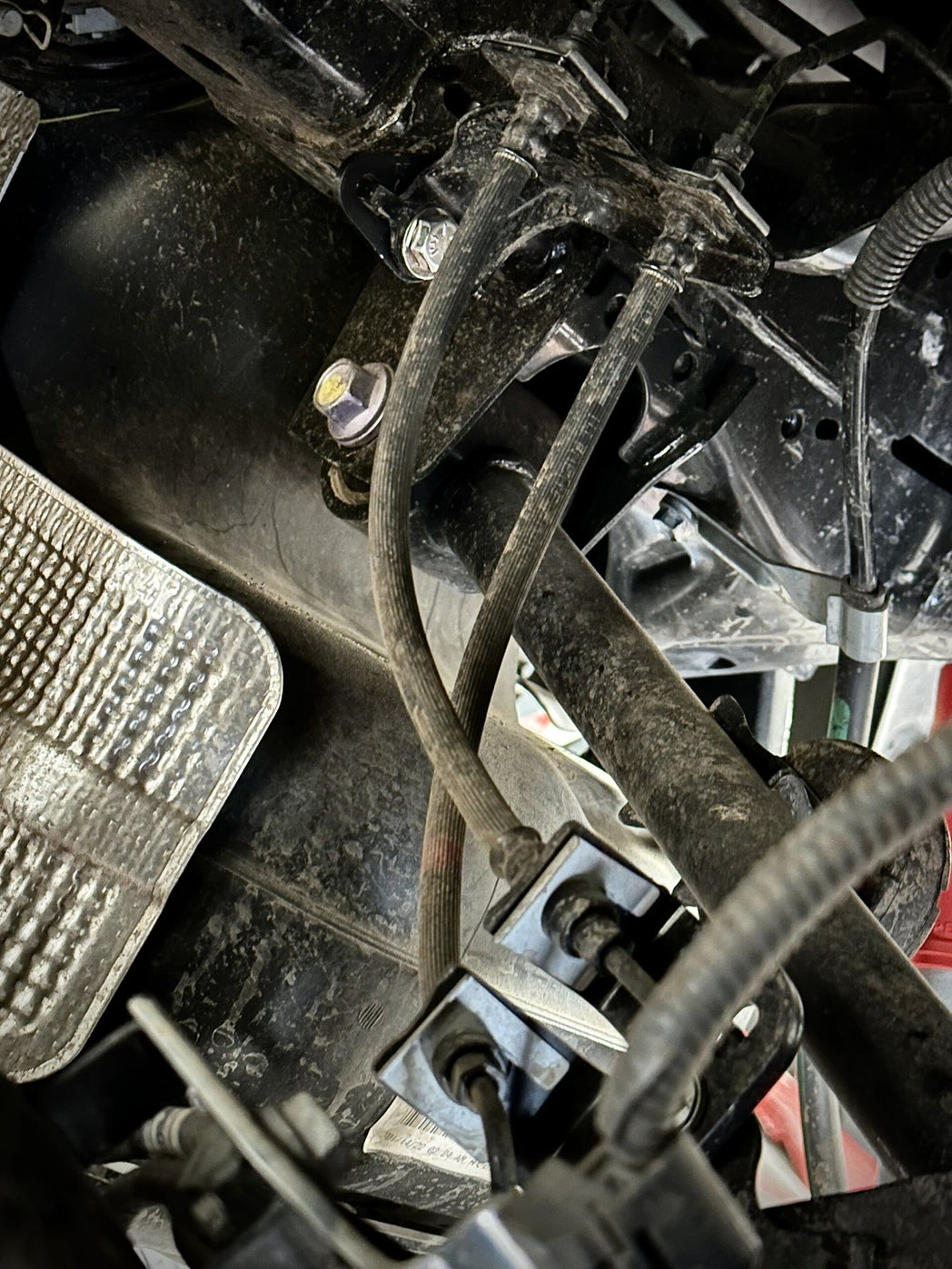

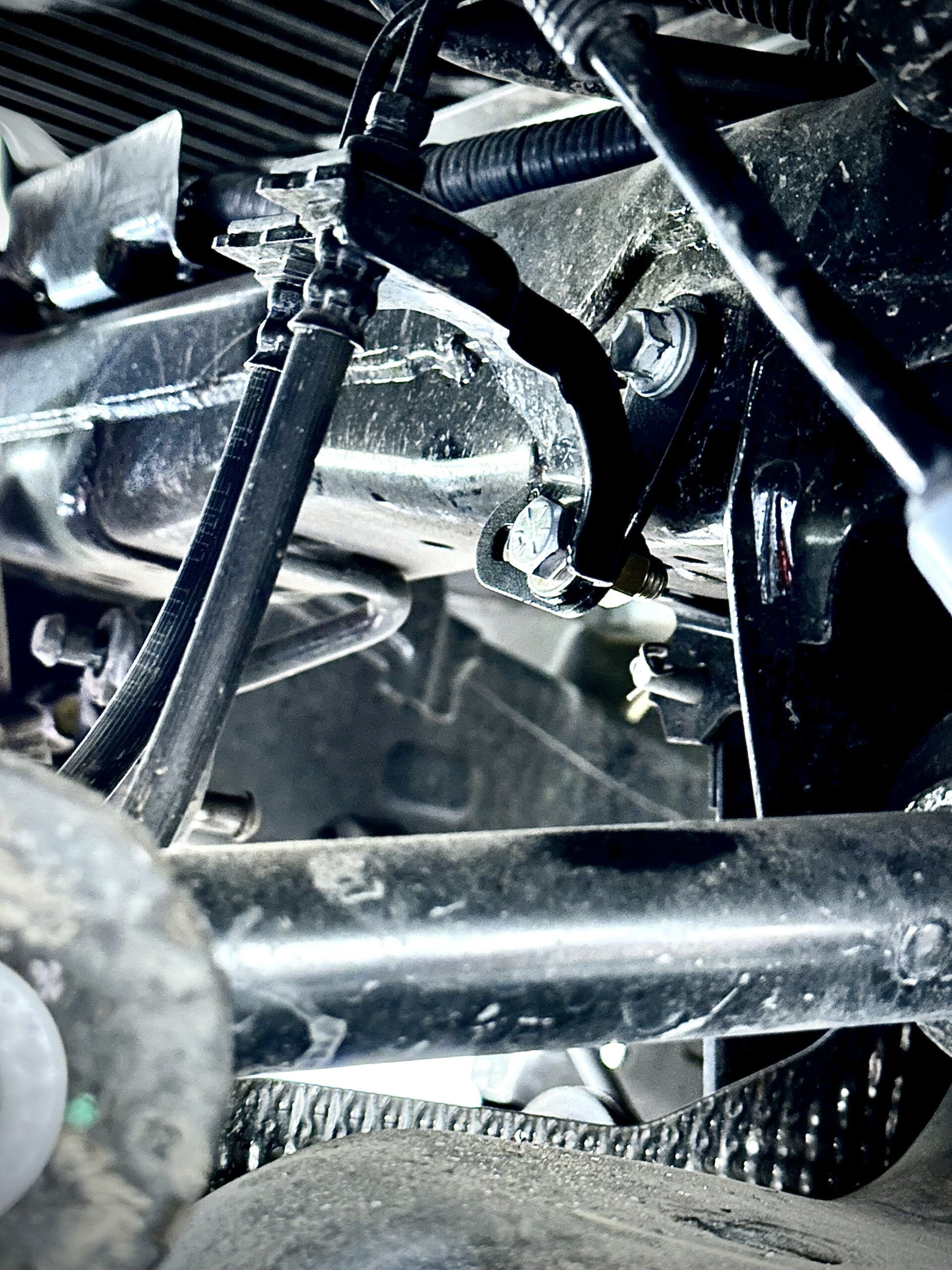

Westcott Designs TRD preload collar lift kit for the 2022-2026 Toyota Tundra! This conversion kit will fit ALL standard rear coil suspension model Tundra’s (SR, SR5, Limited, Platinum & TRD Off-Road). This kit is designed to be used with the optional TRD shocks (#PTR13-34330) and struts (#PTR13-34310) that are available directly from Toyota. There is no need to spend thousands of dollars on this kit from your dealer when you can purchase it here for a fraction of the cost. We offer this kit in (2) different configurations, you can purchase it as a complete kit with shocks or you can purchase just our preload collar kit and source the shocks on your own from your local dealer. This kit features CNC machined lower preload collars, top shim plates, rear billet lift pucks and a brake like relocation bracket. These kits are available in both raw aluminum and hard black anodized finishes for that true “like factory” look. These kits give you a true 3″ of front lift and 1.5″ of rear lift and ride better than factory! All kits come with complete hardware for an easy install. This is NOT your traditional spacer lift kit, you retain your factory if not better ride quality, factory suspension geometry and still able to align the vehicle to factory specs after install. It does NOT require new UCA’s, and you can run up to a 35” tire without a Body Mount Chop (37” tires are compatible if used with the correct wheel size & offset and our Westcott Designs Tundra Tire Clearance Kit)

These kits along with all Westcott products have been designed and built here in house in Phoenix, AZ in the great USA!

*Patent Pending

*IMPORTANT TO KNOW:  This Kit Requires Certain Toyota Parts to Ensure BEST Fitment and Ride Quality:

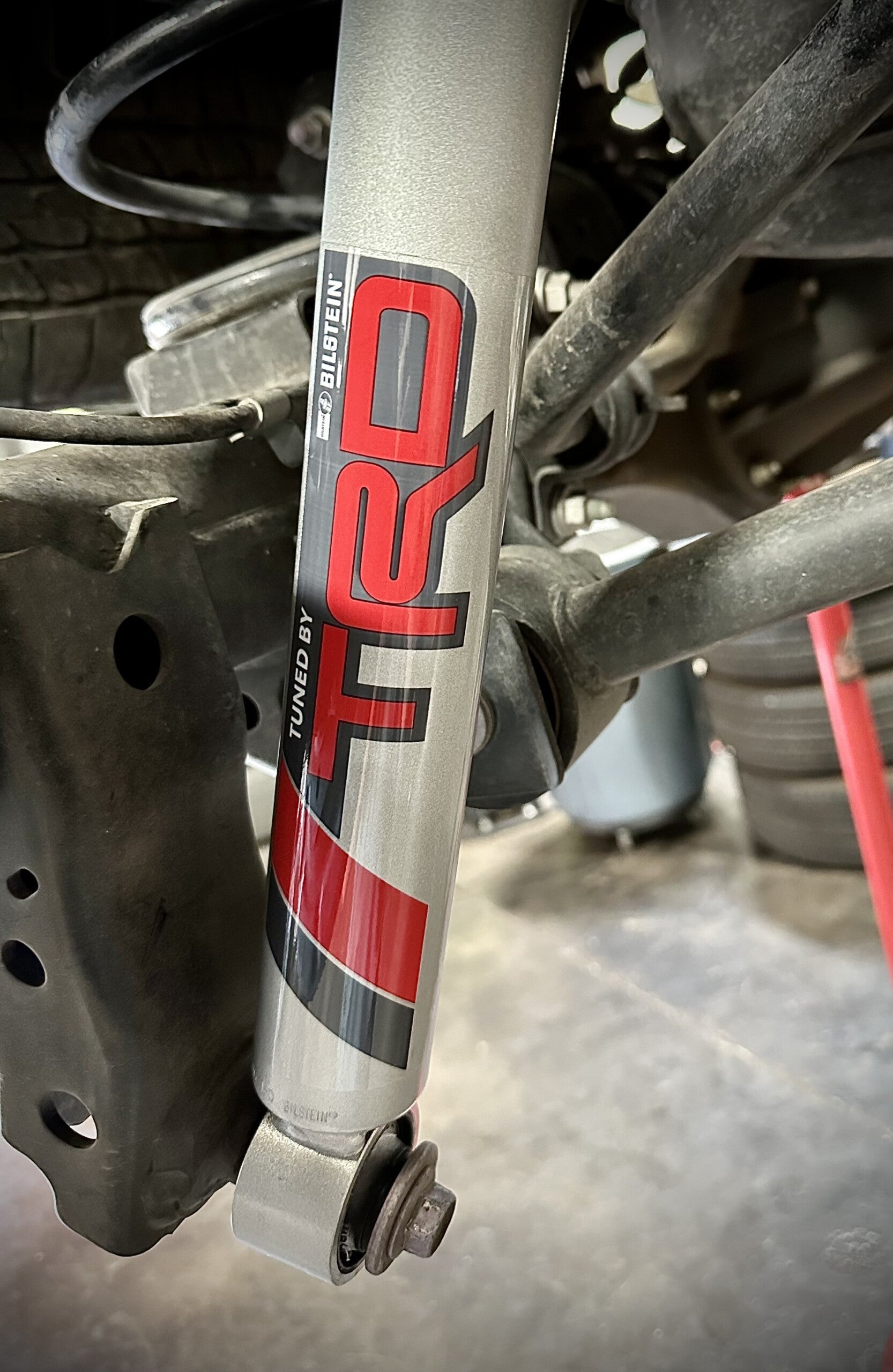

1. This kit requires the Toyota TRD Shocks.  You can purchase directly from Westcott Designs and add to your order in the drop-down on this page.  You will NEED these shocks for this kit to fit and ride as designed.
2. You will also need the Toyota TRD red axles in order to make this kit work.  Part numbers are 43420-0C020 (Left) and 43410-0C020 (Right) which are available from your local Toyota dealer.

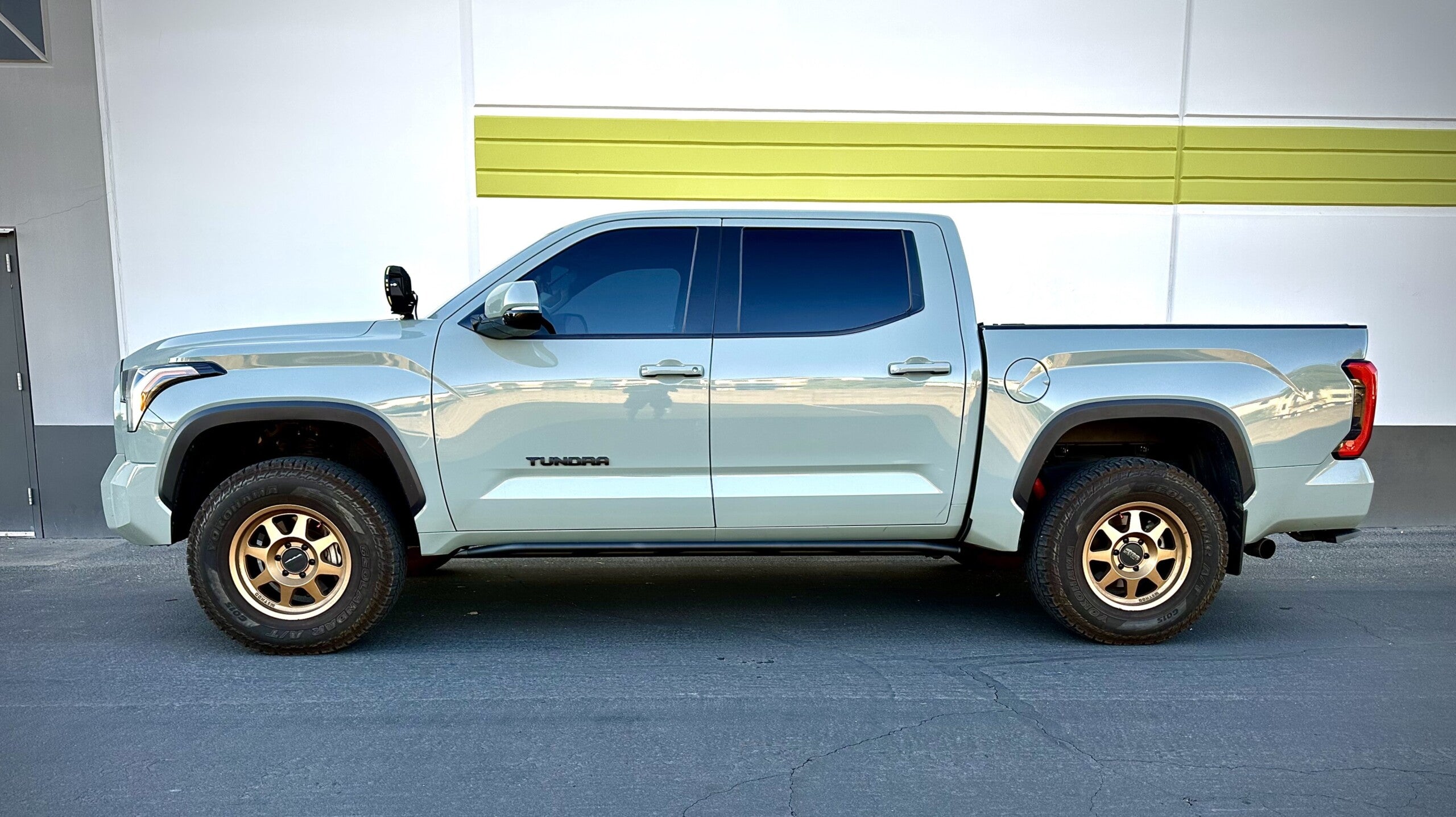

This kit provides the following lift:

• 2022-2024 Tundra TRD suspension equipped trucks: 3.0” (front lift) and 1.50” (rear lift)
• This kit fits ALL standard rear coil suspension model Tundra’s (SR, SR5, Limited, Platinum, & TRD Off-Road)

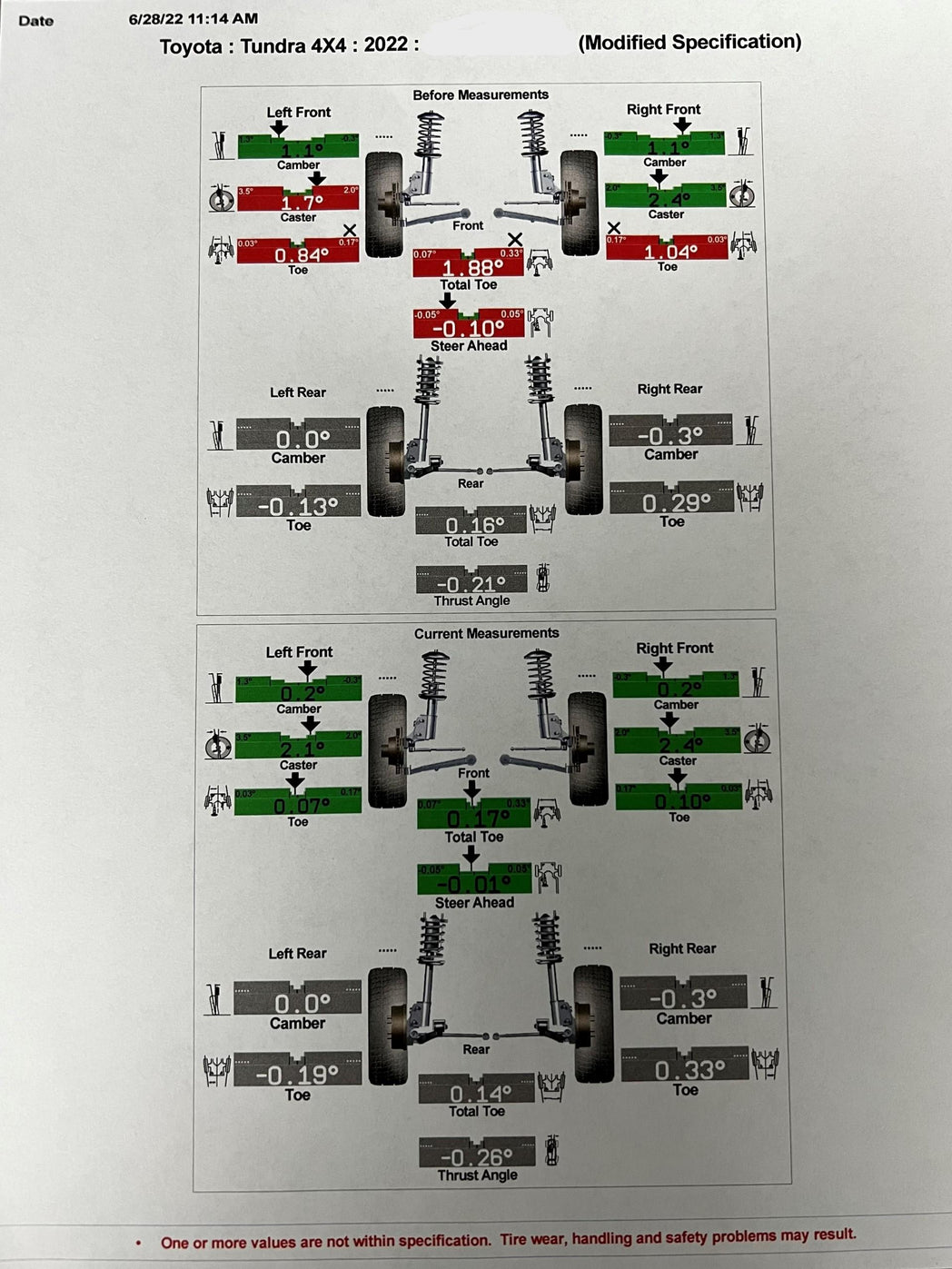

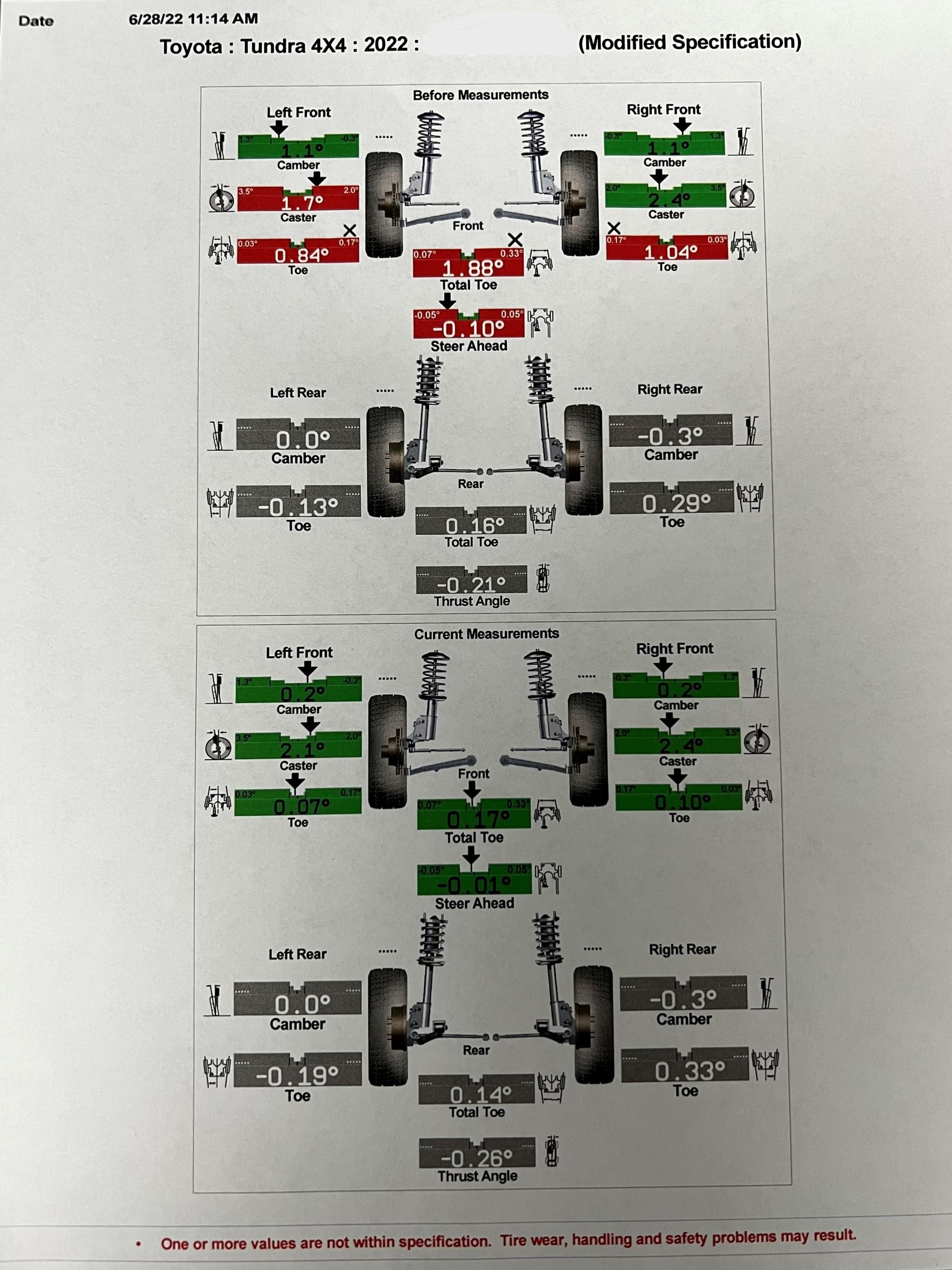

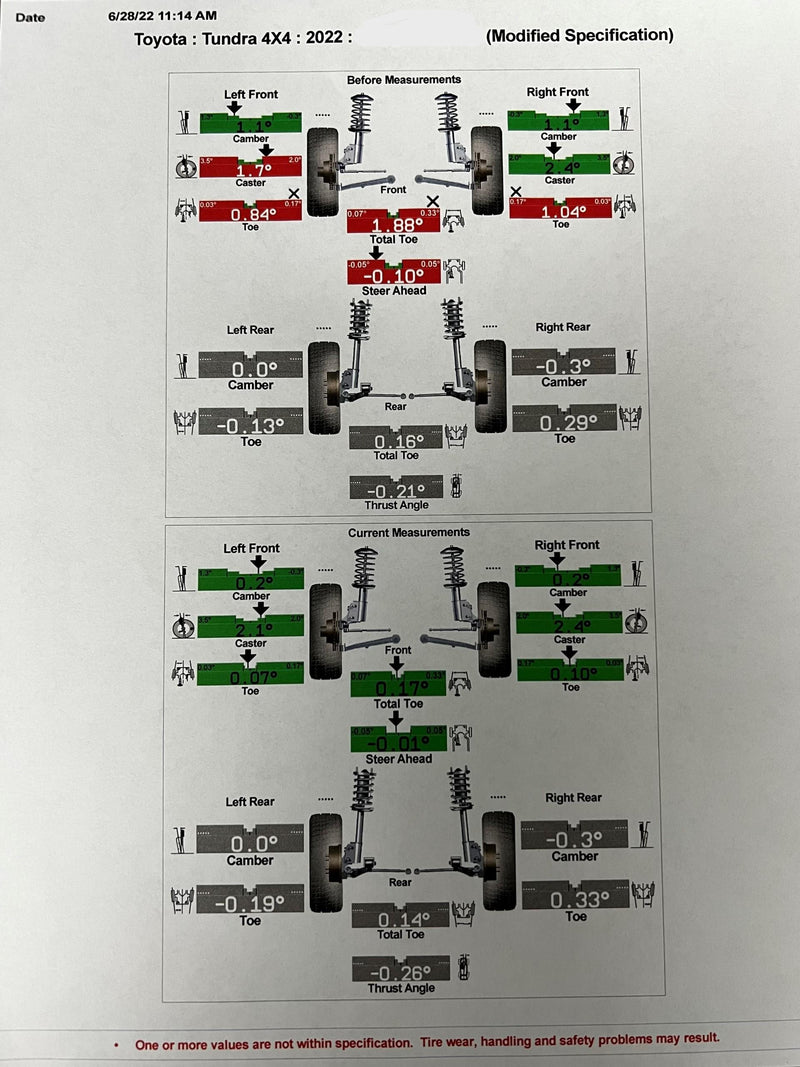

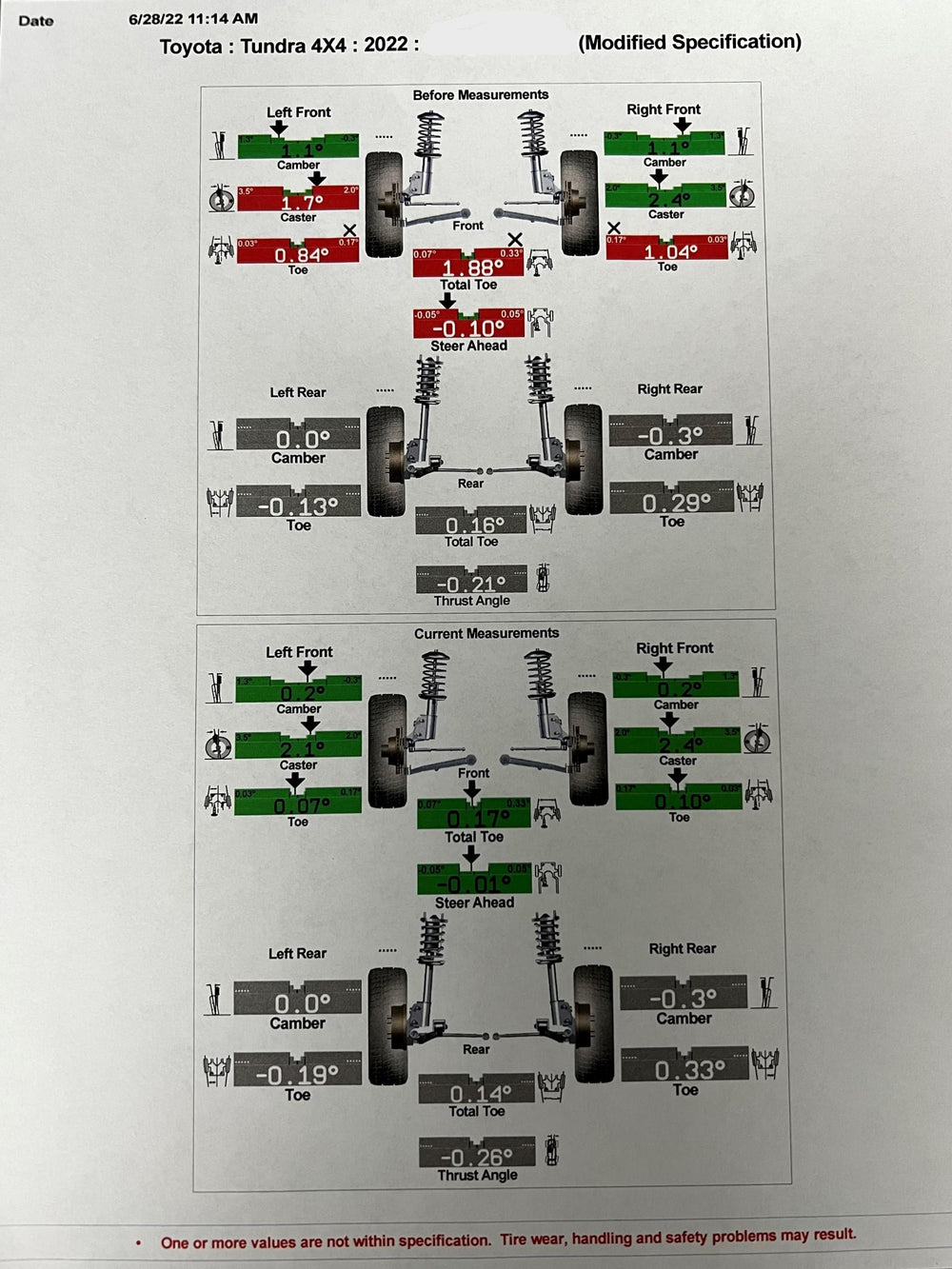

Alignment Specifications:
