12 Circuit Fuse Block PowerTray > Tundra Battery Mount

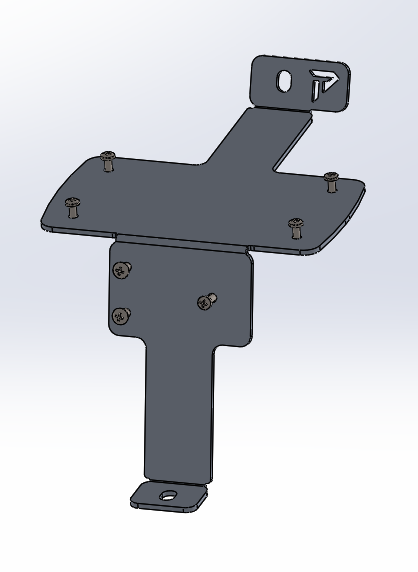

This PowerTray is a perfect solution to mount a Blue Sea 12 Circuit Fuse Block and keep your wiring clean and organized right over top your battery. This mount replaces the factory battery guard and installs in its place with zero modifications needed.

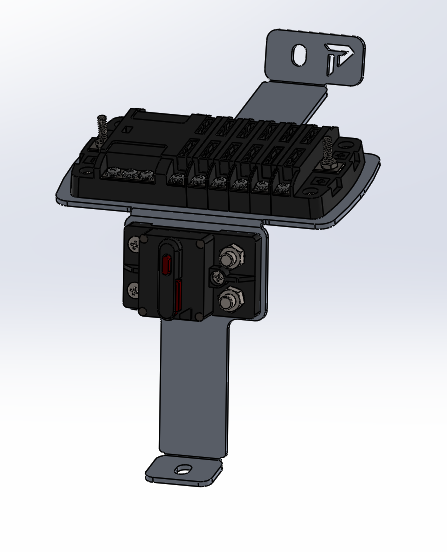

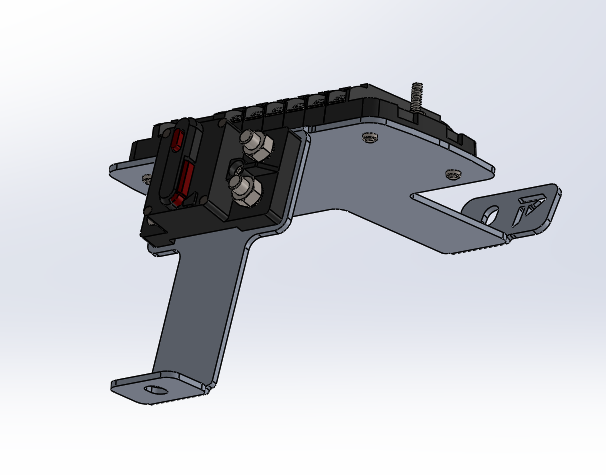

Take all the guess work out of wiring up a new accessory. The 12 Circuit Fuse Block Battery Mount PowerTray has dedicated mounting locations for the fuse block and our 100A compact waterproof circuit breaker. The 100A circuit breaker is right below the Fuse Block and near the positive terminal of the battery for a safe and easy installation of your accessories.

For installation instructions click here.

This product is for the 12 Circuit Fuse Block Battery Mount PowerTray and associated mounting hardware.

It does not include the 12 Circuit Fuse Block, Circuit Breaker, Power/Ground cables, Terminals/fuses etc.

Features:

• PEM® Fasteners with Stainless Steel Screws - Pressed into the bottom of the PowerTray, genuine PEM fasteners become a permanent feature of the tray so you never have to worry about losing a nut while adding mods to your rig. Also included is matching stainless steel hardware to mount those accessories to the tray.

• 1/8th Inch 5052 Aircraft Aluminum - Possibly a little overkill to use for mounting electrical accessories that tend to weigh in the ounces, not pounds. But with a weight coming in at 3X lighter than steel and corrosion resistance far superior to even stainless steel, aluminum is the clear choice for weathering the harsh conditions we put our vehicles though.
• Waterjet manufacturing - Guarantees precise cuts with an accuracy of ±0.003", which is why it is used globally in many industries for intricate designs and jobs which require high tolerances.
• Chamfered edges - This is the only step where we cut corners (hehe). To avoid sharp edges we chamfer all jagged edges and corners by hand with a specialized high-speed router bit. So you don't have to worry about cutting your hands or scratching your vehicles paint during installation. Also with a 45° chamfer on the edges you minimize the risk of vibration wearing though the protective sleeving on cables and wires which would short out the circuit.
• Power Made Easy - Delivered right to your door with step-by-step installation instructions.
