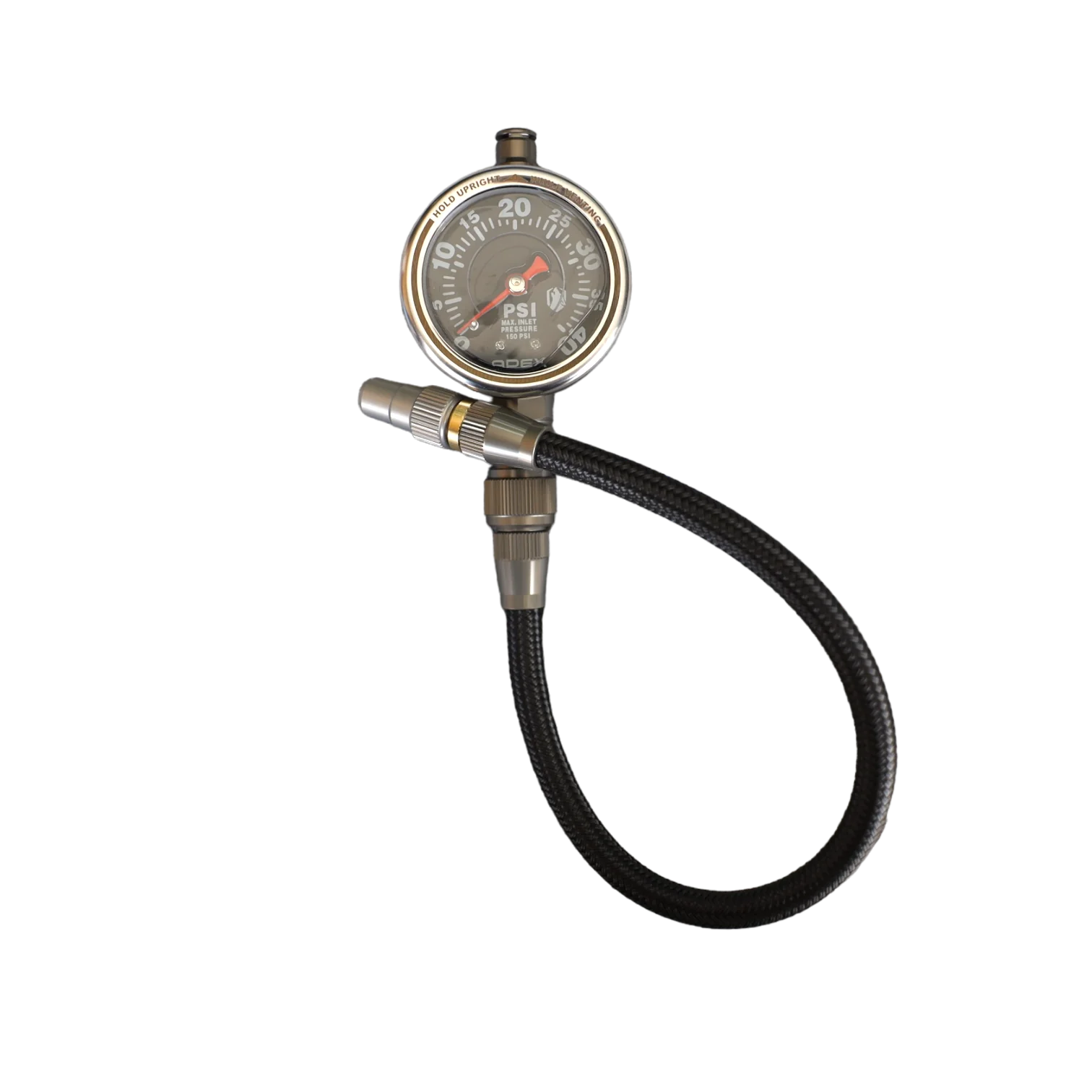

Apex Designs Precision Pressure Gauge (PPG)

The Apex Precision Pressure Gauge provides precise pressure read outs every time with accuracy you can count on.

0-40PSI gauge - Designed with accuracy in mind for lower off-road pressures. This gauge is optimized to be extremely accurate between 0 and 40PSI. It offers a large gauge face that is very legible for fine tuning off-road pressures. Best used with C and D load range tires.

0-90PSI gauge - This is the gauge you want for your tow vehicle and trailers. It was designed to be extremely accurate for pressure above 40PSI. Best used with D and E load range tires.

PERFORMANCE:

• +/- .5PSI accuracy and .05 PSI repeatability
• -30 to 175F use range


FEATURES:

• Fluid filled to resist shock and vibration typical in off-road use
• Stainless Steel Construction
• Hard coated 6061-T6 Aluminum
• Numbers and needles are phosphorescent (glow in the dark)
• Swivel joint
• Atmospheric vent to equalize pressure & compensate for elevation change

• Hose may be trimmed shorter or lengthened by purchasing longer hose. (sold separately)
• May use 1/4 NPT fitting for use with other chucks.
• Thread on chuck for ease of use with our Rapid Precision and Rapid Connect Valves - uses metal seal that will not wear out
